Detailed information for: 1812-500

This page contains technical data sheet, documents library and links to offering related to this product. If you require any other information, please contact us using form located at the bottom of the page.

Print...
Print to Pdf...

Data Sheet

Downloads

Where to buy online

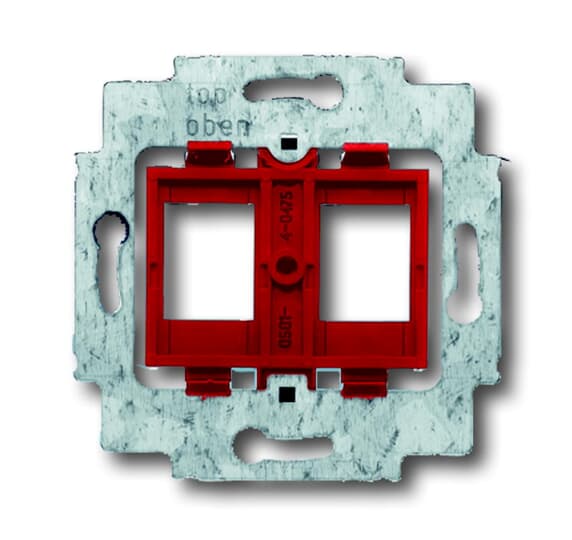

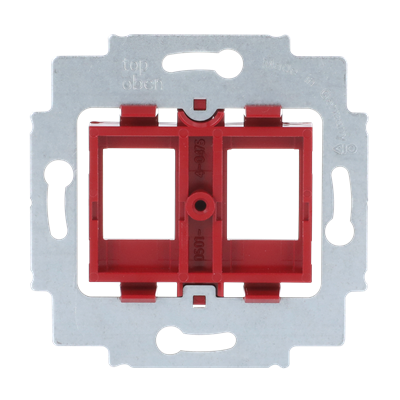

1812-500

General Information

Extended Product Type:

1812-500
Product ID:

2CKA001753A9972
EAN:

4011395174456
Catalog Description:

1812-500 Inserts Modular Jack red
Long Description:

For 2 modular jack inserts. Suitable for Art. Nos. 0210, 0211 and 0219-101. For systems: AMP / tyco Electronics, BTR, EFB, Krone, Panduit, Quante, Radiall, Setec, Dr.-Ing. Sieger, Telena, Thomas & Betts For Telegärtner AMJ/UMJ connection modules/couplings. For 2 fiber optic modules of the following types: 3M-Volition, Krone, mvk. Pitch dimensions: (WxH) approx. 14.8 x 19.4 mm. Without claws.

Accessories

Identifier	Description	Type	Qty	Unit Of Measure
2CKA000225A0086	0211 Modular jack insert Bus (jack) Cat 3 8 Miscellaneous -Decento	0211	1	piece
2CKA001753A9186	1800-21 Cover Plate Modular Jack 2 gang(s) bronze alpha	1800-21	1	piece
2CKA001753A9975	1800-212-500 Cover Plates Modular Jack 2 gang(s) white	1800-212-500	1	piece
2CKA001753A9989	1800-214-500 Cover Plates Modular Jack 2 gang(s) alpine white	1800-214-500	1	piece
2CKA001710A2645	1800-22G Cover Plate Modular Jack 2 gang(s) ivory alpha	1800-22G	1	piece
2CKA001710A2710	1800-24G Cover Plate Modular Jack 2 gang(s) studio white alpha	1800-24G	1	piece
2CKA001710A3318	1800-260 Cover Plate Modular Jack 2 gang(s) palladium alpha	1800-260	1	piece
2CKA001710A3344	1800-266 Cover Plate Modular Jack 2 gang(s) titanium alpha	1800-266	1	piece
2CKA001753A0081	1800-72 Cover Plate Modular Jack 2 gang(s) ivory impuls	1800-72	1	piece
2CKA001753A8667	1800-74 Cover Plate Modular Jack 2 gang(s) alpine white impuls	1800-74	1	piece
2CKA001753A0191	1800-774 Cover Plate Modular Jack 2 gang(s) studio white matt impuls	1800-774	1	piece
2CKA001753A0160	1800-775 Cover Plate Modular Jack 2 gang(s) black matt impuls	1800-775	1	piece
2CKA001753A0082	1800-783 Cover Plate Modular Jack 2 gang(s) aluminium silver impuls	1800-783	1	piece
2CKA001753A8691	1800-79 Cover Plate Modular Jack 2 gang(s) champagne metallic impuls	1800-79	1	piece
2CKA001710A3856	1800-803 Cover Plate Modular Jack 2 gang(s) grey metallic 63x63	1800-803	1	piece
2CKA001710A3627	1800-81 Cover Plate Modular Jack 2 gang(s) anthracite 63x63	1800-81	1	piece
2CKA001710A3158	1800-82 Cover Plate Modular Jack 2 gang(s) ivory white 63x63	1800-82	1	piece
2CKA001710A3676	1800-83 Cover Plate Modular Jack 2 gang(s) aluminium silver 63x63	1800-83	1	piece
2CKA001710A4085	1800-840-500 Cover Plate Modular Jack 2 gang(s) antique brass 63x63	1800-840-500	1	piece
2CKA001710A3990	1800-84-500 Cover Plates Modular Jack 2 gang(s) studio white 63x63	1800-84-500	1	piece
2CKA001710A3767	1800-866 Cover Plate Modular Jack 2 gang(s) stainless steel Pure Stainless Steel	1800-866	1	piece
2CKA001710A3887	1800-884 Cover Plate Modular Jack 2 gang(s) studio white matt 63x63	1800-884	1	piece
2CKA001710A3910	1800-885 Cover Plate Modular Jack 2 gang(s) black matt 63x63	1800-885	1	piece
2CKA001710A3944	1800-92-507 Cover Plates Modular Jack 2 gang(s) white Basic55	1800-92-507	1	piece
2CKA001710A3941	1800-93-507 Cover Plates Modular Jack 2 gang(s) champagne Basic55	1800-93-507	1	piece
2CKA001710A3945	1800-94-507 Cover Plates Modular Jack 2 gang(s) alpine white Basic55	1800-94-507	1	piece
2CKA001710A3942	1800-95-507 Cover Plates Modular Jack 2 gang(s) château-black Basic55	1800-95-507	1	piece
2CKA001710A3943	1800-96-507 Cover Plates Modular Jack 2 gang(s) chalet-white Basic55	1800-96-507	1	piece

Technical

Application:

Modular Jack
Number of Gangs:

1
Product Range:

Flush-mounted installation boxes and inserts
Mounting Type:

Flush Mounted
Type of Fastening:

Mounting with Screw
Type of Indicator:

Without indication field
Outlet Orientation:

Straight
Surface Finishing:

Surface protection: Untreated
Surface finishing: Matt
Material:

Thermoplastic
Color:

red
Battery Weight:

0 g

Environmental

Degree of Protection:

IP20
RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Dimensions

Product Net Width:

71 mm
Product Net Height:

32 mm
Product Net Depth / Length:

71 mm
Product Net Weight:

31 g
Built-In Depth (t₂):

40 mm

Container Information

Package Level 1 Units:

carton 10 piece
Package Level 1 Width:

97 mm
Package Level 1 Height:

77 mm
Package Level 1 Depth / Length:

186 mm
Package Level 1 Gross Weight:

0.278 kg
Package Level 1 EAN:

4011395174456
Package Level 2 Units:

carton 100 piece
Package Level 2 Width:

198 mm
Package Level 2 Height:

211 mm
Package Level 2 Depth / Length:

393 mm
Package Level 2 Gross Weight:

3.04 kg
Package Level 3 Units:

4800 piece
Package Level 3 Width:

0.8 m
Package Level 3 Height:

0.994 m
Package Level 3 Depth / Length:

1.2 m
Package Level 3 Gross Weight:

165.92 kg

Ordering

Minimum Order Quantity:

1 piece
Customs Tariff Number:

85389099
E-Number (Sweden):

5100338
Country of Origin:

Germany (DE)

Certificates and Declarations (Document Number)

Declaration of Conformity - CE:

2CKA200000E2455
Instructions and Manuals:

No document needed
REACH Declaration:

2CKA309999E9999
RoHS Information:

2CKA200000E2455

Popular Downloads

Data Sheet, Technical Information:

No document needed
Instructions and Manuals:

No document needed

Classifications

ETIM 7:

EC000018 - Insert/cover for communication technology
ETIM 8:

EC000018 - Insert/cover for communication technology
WEEE Category:

Product Not in WEEE Scope
CN8:

8538 90 99
eClass:

V11.0 : 27144049
