Detailed information for: 1723 NS-214

This page contains technical data sheet, documents library and links to offering related to this product. If you require any other information, please contact us using form located at the bottom of the page.

Print...
Print to Pdf...

Data Sheet

Downloads

Where to buy online

1723 NS-214

General Information

Extended Product Type:

1723 NS-214
Product ID:

2CKA001754A3724
EAN:

4011395881309
Catalog Description:

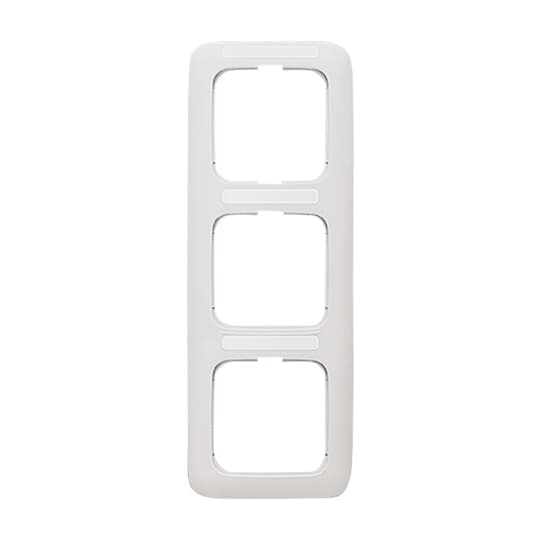

1723 NS-214 Cover Frame 3gang(s) alpine white - Reflex SI
Long Description:

With labelling field and label holder. Vertical.

Accessories

Identifier	Description	Type	Qty	Unit Of Measure
2CKA001582A0345	1571 CN-214 Cover plate with labelling field Busch-Infoline® Signalling Single push button alpine white - Reflex SI	1571 CN-214	1	piece
2CKA001582A0347	1572 CN-214 Cover plate with labelling field Busch-Infoline® Signalling Touch control button Clear alpine white - Reflex SI	1572 CN-214	1	piece
2CKA001582A0349	1573 C-214 Cover Plate Busch-Infoline® Signalling alpine white - Reflex SI	1573 C-214	1	piece
2CKA001582A0351	1574 C-214 Cover Plate Busch-Infoline® Buzzer alpine white - Reflex SI	1574 C-214	1	piece
2CKA001582A0352	1575 CN-214 Cover plate with labelling field Busch-Infoline® Signalling alpine white - Reflex SI	1575 CN-214	1	piece
2CKA001582A0354	1576 C-214 Cover Plate Busch-Infoline® alpine white - Reflex SI	1576 C-214	1	piece
2CKA001710A3683	1794 TA-214 Cover plate with legend for Thermostat Turn button alpine white - Reflex SI	1794 TA-214	1	piece
2CKA001710A3997	1795 HK-214 Cover plate with legend for Thermostat Turn button alpine white - Reflex SI	1795 HK-214	1	piece
2CKA001710A4029	1795 HKEA-214 Cover plate with legend for Thermostat Turn button 1 sliding switch alpine white - Reflex SI	1795 HKEA-214	1	piece
2CKA001710A3710	1795 TA-214 Cover plate with legend for Thermostat Turn button 1 sliding switch alpine white - Reflex SI	1795 TA-214	1	piece
2CKA002013A5320	20 EUC/DVKS-214 Socket insert Protective Contact (SCHUKO) Safety Shutter alpine white - Reflex SI	20 EUC/DVKS-214	1	piece
2CKA002011A3789	20 EUC-214-507 Cover Plates (partly incl. Insert) Protective Contact (SCHUKO) alpine white - Reflex SI/SI Linear	20 EUC-214-507	1	piece
2CKA002013A5281	20 EUCBL-214 Socket insert Protective Contact (SCHUKO) Safety Shutter withControl light; LED /Green alpine white - Reflex SI	20 EUCBL-214	1	piece
2CKA002013A5291	20 EUCBLI-214 Busch-steplight Socket insert Protective Contact (SCHUKO) Safety Shutter Night orientation light withNight light; LED /White alpine white - Reflex SI	20 EUCBLI-214	1	piece
2CKA002013A5314	20 EUKB-214 Socket insert Protective Contact (SCHUKO) Safety Shutter with Hinged Lid alpine white - Reflex SI	20 EUKB-214	1	piece
2CKA002013A5318	20 EUKNB-214 Socket insert Protective Contact (SCHUKO) Safety Shutter with Hinged Lid alpine white - Reflex SI	20 EUKNB-214	1	piece
2CKA002013A5319	20 EURKS-214 Socket insert Protective Contact (SCHUKO) Safety Shutter alpine white - Reflex SI	20 EURKS-214	1	piece
2CKA002013A5321	2310 EUGL/VAB-214 Busch-Protector® Socket insert Protective Contact (SCHUKO) Safety Shutter alpine white - Reflex SI	2310 EUGL/VAB-214	1	piece
2CKA002011A3817	2310EUGL/VA-214-11 Busch-Protector® Socket insert Protective Contact (SCHUKO) alpine white - Reflex SI	2310EUGL/VA-214-11	1	piece
2CKA002099A0208	2399 UCKS-214 Cover Plates (partly incl. Insert) alpine white - Reflex SI/SI Linear	2399 UCKS-214	1	piece
2CKA001731A1891	2506-214-507 Cover Plates (partly incl. Insert) Switch/push button Single rocker Without imprint alpine white - Reflex SI/SI Linear	2506-214-507	1	piece
2CKA001731A1920	2562-214 Cover Busch-Infolicht® alpine white - Reflex SI	2562-214	1	piece
2CKA006430A0399	6430-214-102-500 Cover Plates (partly incl. Insert) for Venetian blind alpine white	6430-214-102-500	1	piece
2CKA006430A0401	6435-214-500 Cover Plates (partly incl. Insert) for Time switch alpine white	6435-214-500	1	piece
2CKA006470A0002	6476-214 Cover Plate for Proximity switch alpine white	6476-214	1	piece
2CKA006599A2889	6545-214 Control Element for Dimmer Two-part button with Neon lamp alpine white - Reflex SI	6545-214	1	piece
2CKA006730A0030	6731-214-500 WaveLine Cover Plates (partly incl. Insert) 1 channel alpine whiteRadio Control	6731-214-500	1	piece
2CKA006730A0031	6732-214-500 WaveLine Cover Plates (partly incl. Insert) 2 channel alpine whiteRadio Control	6732-214-500	1	piece
2CKA008200A0181	8253-214-500 Cover Plates (partly incl. Insert) alpine white	8253-214-500	1	piece

Installation

Instructions and Manuals:

No document needed

Technical

Data Sheet, Technical Information:

No document needed
Number of Gangs:

3
Design Range:

Reflex SI
Reflex SI/SI Linear
Mounting Type:

Flush Mounted
Type of Fastening:

Clamp
Mounting Orientation:

Vertical
Surface Finishing:

Untreated
Glossy
Material:

Thermoplastic
Label Space Provided:

Yes / Captive
RAL Number:

RAL 9010 - Pure White
Color:

alpine white

Environmental

Degree of Protection:

IP20
RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Information:

2CKA200000E2535
REACH Declaration:

2CKA309999E9999

Dimensions

Product Net Width:

223 mm
Product Net Height:

11 mm
Product Net Depth / Length:

81 mm
Product Net Weight:

52 g

Ordering

Minimum Order Quantity:

1 piece
Package Level 1 Units:

carton 10 piece
Package Level 1 Gross Weight:

0.59 kg
Customs Tariff Number:

85389099
Country of Origin:

Germany (DE)

Certificates and Declarations

Declaration of Conformity - CE:

2CKA200000E2535

Classifications

ETIM 8:

EC000007 - Cover frame for domestic switching devices
ETIM 9:

EC000007 - Cover frame for domestic switching devices
WEEE Category:

Product Not in WEEE Scope
CN8:

8538 90 99
eClass:

V11.0 : 27144001
