8352

General Information

  • Extended Product Type:
    8352
  • Product ID:
    2CKA001784A0560
  • EAN:
    4011395534106
  • Catalog Description:

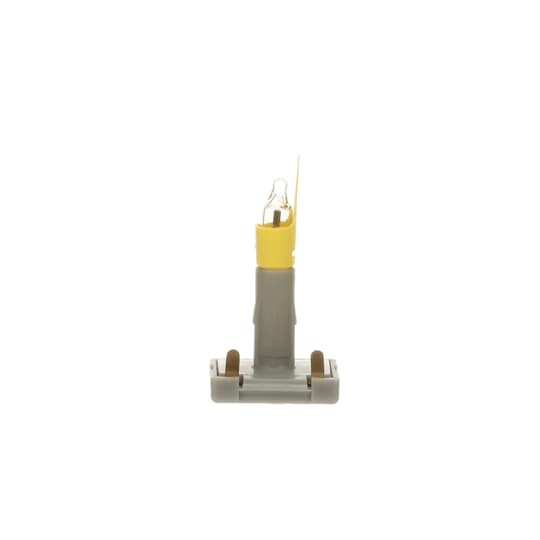

    8352 Illumination set Switch/push button Orange Neon lamp 230 V
  • Long Description:
    Suitable for flush-mounted inserts 2000/..., 2020/..., 2061/..., 2025/... particularly bright for indication lamps

Categories

  • 8352 - image 0
  • 8352 - image 1
  • 8352 - image 2
  • 8352 - image 3
  • 8352 - image 4
+
–

Accessories

Identifier Description Type Qty Unit Of Measure
2CKA001784A0586
 8362 Illumination set Switch/push button Orange Neon lamp 230 V yellow 8362 1 piece

Installation

Technical

  • Data Sheet, Technical Information:
    No document needed
  • Application:
    Switch/push button
  • Suitable For:
    2CKA001784A0586
  • Rated Voltage (Ur):
    230 V
  • Rated Current (In):
    0 A
  • Power Consumption (@Pcons):
    1 mA
  • Lamp Socket Type:
    Plug-in End Socket
  • Lamp Type:
    Neon lamp
  • Lamp Color:
    Orange

Environmental

  • RoHS Status:
    Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • RoHS Information:
    2CKA200000E3231
  • REACH Declaration:
    2CKA309999E9999

Dimensions

  • Product Net Width:
    19 mm
  • Product Net Height:
    19 mm
  • Product Net Depth / Length:
    34 mm
  • Product Net Weight:
    2 g

Ordering

  • Minimum Order Quantity:
    1 piece
  • Package Level 1 Units:
    bag 10 piece
  • Package Level 1 Gross Weight:
    18.99 g
  • Customs Tariff Number:
    85393980
  • E-Number (Finland):
    2106090
  • Country of Origin:
    Czech Republic (CZ)

Certificates and Declarations

Classifications

  • ETIM 8:
    EC000199 - Illumination insert for domestic switching devices
  • ETIM 9:
    EC000199 - Illumination insert for domestic switching devices
  • WEEE Category:
    5. Small Equipment (No External Dimension More Than 50 cm)
  • WEEE B2C / B2B:
    Business To Consumer
  • CN8:
    8539 39 80
  • eClass:
    V11.0 : 27144005
