Detailed information for: 20 EUN-72

This page contains technical data sheet, documents library and links to offering related to this product. If you require any other information, please contact us using form located at the bottom of the page.

Print...
Print to Pdf...

Data Sheet

Downloads

Where to buy online

20 EUN-72

General Information

Extended Product Type:

20 EUN-72
Product ID:

2CKA002011A3846
EAN:

4011395082881
Catalog Description:

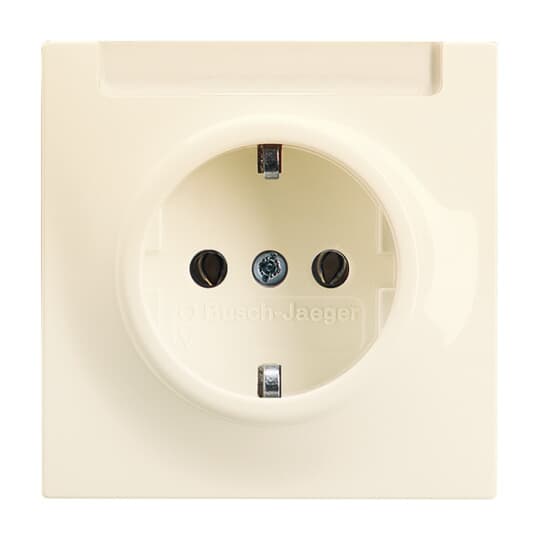

20 EUN-72 Socket insert Protective Contact (SCHUKO) ivory white - impuls
Long Description:

DP (2 P + E) Size of labelling field: 60 x 9 mm.

Accessories

Identifier	Description	Type	Qty	Unit Of Measure
2CKA001754A4505	1721-72-500 Cover Frame 1gang(s) ivory - impuls	1721-72-500	1	piece
2CKA001754A4514	1721-726-500 Cover Frame 1gang(s) chrome - impuls	1721-726-500	1	piece
2CKA001754A4507	1721-73-500 Cover Frame 1gang(s) solar gold - impuls	1721-73-500	1	piece
2CKA001754A4513	1721-74-500 Cover Frame 1gang(s) alpine white - impuls	1721-74-500	1	piece
2CKA001754A4222	1721-74-507 Cover Frame 1gang(s) alpine white - impuls	1721-74-507	1	piece
2CKA001754A4429	1721-774 Cover Frame 1gang(s) studio white matt - impuls	1721-774	1	piece
2CKA001754A4430	1721-774-507 Cover Frame 1gang(s) studio white matt - impuls	1721-774-507	1	piece
2CKA001754A4424	1721-775 Cover Frame 1gang(s) black matt - impuls	1721-775	1	piece
2CKA001754A4510	1721-79-500 Cover Frame 1gang(s) champagne metallic - impuls	1721-79-500	1	piece
2CKA001754A4225	1721-79-507 Cover Frame 1gang(s) champagne metallic - impuls	1721-79-507	1	piece
2CKA001754A4313	1722-72 Cover Frame 2gang(s) ivory - impuls	1722-72	1	piece
2CKA001754A4134	1722-726 Cover Frame 2gang(s) chrome - impuls	1722-726	1	piece
2CKA001754A3542	1722-73 Cover Frame 2gang(s) solar gold - impuls	1722-73	1	piece
2CKA001754A4525	1722-74-500 Cover Frame 2gang(s) alpine white - impuls	1722-74-500	1	piece
2CKA001754A4226	1722-74-507 Cover Frame 2gang(s) alpine white - impuls	1722-74-507	1	piece
2CKA001754A4431	1722-774 Cover Frame 2gang(s) studio white matt - impuls	1722-774	1	piece
2CKA001754A4432	1722-774-507 Cover Frame 2gang(s) studio white matt - impuls	1722-774-507	1	piece
2CKA001754A4425	1722-775 Cover Frame 2gang(s) black matt - impuls	1722-775	1	piece
2CKA001754A2528	1722-79 Cover Frame 2gang(s) champagne metallic - impuls	1722-79	1	piece
2CKA001754A4314	1723-72 Cover Frame 3gang(s) ivory - impuls	1723-72	1	piece
2CKA001754A4135	1723-726 Cover Frame 3gang(s) chrome - impuls	1723-726	1	piece
2CKA001754A3591	1723-73 Cover Frame 3gang(s) solar gold - impuls	1723-73	1	piece
2CKA001754A2437	1723-74 Cover Frame 3gang(s) alpine white - impuls	1723-74	1	piece
2CKA001754A4433	1723-774 Cover Frame 3gang(s) studio white matt - impuls	1723-774	1	piece
2CKA001754A4426	1723-775 Cover Frame 3gang(s) black matt - impuls	1723-775	1	piece
2CKA001754A2536	1723-79 Cover Frame 3gang(s) champagne metallic - impuls	1723-79	1	piece
2CKA001754A4315	1724-72 Cover Frame 4gang(s) ivory - impuls	1724-72	1	piece
2CKA001754A4136	1724-726 Cover Frame 4gang(s) chrome - impuls	1724-726	1	piece
2CKA001754A3641	1724-73 Cover Frame 4gang(s) solar gold - impuls	1724-73	1	piece
2CKA001754A2445	1724-74 Cover Frame 4gang(s) alpine white - impuls	1724-74	1	piece
2CKA001754A4224	1724-74-507 Cover Frame 4gang(s) alpine white - impuls	1724-74-507	1	piece
2CKA001754A4434	1724-774 Cover Frame 4gang(s) studio white matt - impuls	1724-774	1	piece
2CKA001754A4435	1724-774-507 Cover Frame 4gang(s) studio white matt - impuls	1724-774-507	1	piece
2CKA001754A4427	1724-775 Cover Frame 4gang(s) black matt - impuls	1724-775	1	piece
2CKA001754A2544	1724-79 Cover Frame 4gang(s) champagne metallic - impuls	1724-79	1	piece
2CKA001754A4223	1724-79-507 Cover Frame 4gang(s) champagne metallic - impuls	1724-79-507	1	piece
2CKA001754A4316	1725-72 Cover Frame 5gang(s) ivory - impuls	1725-72	1	piece
2CKA001754A4137	1725-726 Cover Frame 5gang(s) chrome - impuls	1725-726	1	piece
2CKA001754A3690	1725-73 Cover Frame 5gang(s) solar gold - impuls	1725-73	1	piece
2CKA001754A2452	1725-74 Cover Frame 5gang(s) alpine white - impuls	1725-74	1	piece
2CKA001754A4436	1725-774 Cover Frame 5gang(s) studio white matt - impuls	1725-774	1	piece
2CKA001754A4428	1725-775 Cover Frame 5gang(s) black matt - impuls	1725-775	1	piece
2CKA001754A2551	1725-79 Cover Frame 5gang(s) champagne metallic - impuls	1725-79	1	piece

Installation

Instructions and Manuals:

No document needed

Technical

Data Sheet, Technical Information:

No document needed
Rated Voltage (U_r):

250 V
Rated Current (I_n):

16 A
Frequency (f):

50 Hz
Rated Frequency (f):

50 Hz
Number of Poles:

2P+E
Number of Phases:

1
Number of Gangs:

1
Design Range:

impuls
Connection Type:

Plug Clamp
Mounting Type:

Flush Mounted
Socket Outlet Type:

Protective Contact (SCHUKO)
Type of Fastening:

Mounting with Claw
Mounting with Screw
Surface Finishing:

Untreated
Glossy
Material:

Thermoplastic
Label Space Provided:

Yes
Includes:

Cover plate and insert
Legend:

Without imprint
RAL Number:

RAL 1013 - Oyster White
Color:

ivory white

Environmental

Degree of Protection:

IP20
RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Information:

2CKA200000E3412
REACH Declaration:

2CKA309999E9999

Technical UL/CSA

Short-Circuit Current Rating (SCCR):

0 kA

Dimensions

Product Net Width:

71 mm
Product Net Height:

71 mm
Product Net Depth / Length:

45 mm
Product Net Weight:

70.5 g
Built-In Depth (t₂):

31 mm
Dimension Diagram:

2CKA000097E0525

Ordering

Minimum Order Quantity:

1 piece
Package Level 1 Units:

carton 10 piece
Package Level 1 Gross Weight:

0.85 kg
Customs Tariff Number:

85366990
Country of Origin:

Germany (DE)

Certificates and Declarations

Declaration of Conformity - CE:

2CKA100000E2761

Classifications

ETIM 8:

EC000125 - Socket outlet
ETIM 9:

EC000125 - Socket outlet
WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:

Business To Consumer
CN8:

8536 69 90
eClass:

V11.0 : 27144042
