Detailed information for: 20 EUC/DVKS-212

This page contains technical data sheet, documents library and links to offering related to this product. If you require any other information, please contact us using form located at the bottom of the page.

Print...
Print to Pdf...

Data Sheet

Downloads

Where to buy online

20 EUC/DVKS-212

General Information

Extended Product Type:

20 EUC/DVKS-212
Product ID:

2CKA002013A5313
EAN:

4011395122921
Catalog Description:

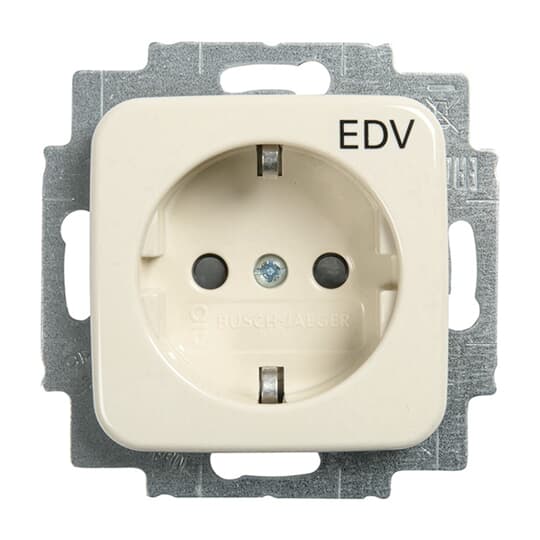

SCHUKO® Socket insert with print Safety Shutter white - Busch-Duro 2000
Long Description:

Shuttered. With screwless terminals. DP (2 P + E)

Accessories

Identifier	Description	Type	Qty	Unit Of Measure
2CKA001754A4516	Cover Frame 1gang white - Busch-Duro 2000	1721 NS-212-500	1	piece
2CKA001754A4093	Cover Frame 1gang white - Busch-Duro 2000 SI Linear	1721 NSKA-212	1	piece
2CKA001754A2239	Cover Frame 2gang white - Busch-Duro 2000	1722 NS-212	1	piece
2CKA001754A4094	Cover Frame 2gang white - Busch-Duro 2000 SI Linear	1722 NSKA-212	1	piece
2CKA001754A3708	Cover Frame 3gang white - Busch-Duro 2000	1723 NS-212	1	piece
2CKA001754A4096	Cover Frame 3gang white - Busch-Duro 2000 SI Linear	1723 NSKA-212	1	piece
2CKA001754A4098	Cover Frame 4gang white - Busch-Duro 2000 SI Linear	1724 NSKA-212	1	piece
2CKA001754A2213	Cover Frame 2gang white - Busch-Duro 2000	1732 NS-212	1	piece
2CKA001754A4095	Cover Frame 2gang white - Busch-Duro 2000 SI Linear	1732 NSKA-212	1	piece
2CKA001754A3716	Cover Frame 3gang white - Busch-Duro 2000	1733 NS-212	1	piece
2CKA001754A4097	Cover Frame 3gang white - Busch-Duro 2000 SI Linear	1733 NSKA-212	1	piece
2CKA001754A4099	Cover Frame 4gang white - Busch-Duro 2000 SI Linear	1734 NSKA-212	1	piece
2CKA001725A0662	Cover Frame 1gang white - Busch-Duro 2000	2511 JH-212	1	piece
2CKA001725A1552	Cover Frame 1gang white - Busch-Duro 2000	2511-212-500	1	piece
2CKA001725A0613	Cover Frame 1gang white - Busch-Duro 2000	2511-212-506	1	piece
2CKA001725A1463	Cover Frame 1gang white - Busch-Duro 2000	2511-212-507	1	piece
2CKA001725A1549	Cover Frame 1gang white - Busch-Duro 2000 SI Linear	2511-212K-102-500	1	piece
2CKA001725A1553	Cover Frame 2gang white - Busch-Duro 2000	2512-212-500	1	piece
2CKA001725A1465	Cover Frame 2gang white - Busch-Duro 2000	2512-212-507	1	piece
2CKA001725A1550	Cover Frame 2gang white - Busch-Duro 2000 SI Linear	2512-212K-102-500	1	piece
2CKA001725A1554	Cover Frame 3gang white - Busch-Duro 2000	2513-212-500	1	piece
2CKA001725A0639	Cover Frame 3gang white - Busch-Duro 2000	2513-212-506	1	piece
2CKA001725A1468	Cover Frame 3gang white - Busch-Duro 2000	2513-212-507	1	piece
2CKA001725A1551	Cover Frame 3gang white - Busch-Duro 2000 SI Linear	2513-212K-102-500	1	piece
2CKA001725A0647	Cover Frame 4gang white - Busch-Duro 2000	2514-212-500	1	piece
2CKA001725A1492	Cover Frame 4gang white - Busch-Duro 2000 SI Linear	2514-212K-102	1	piece
2CKA001725A0654	Cover Frame 5gang white - Busch-Duro 2000	2515-212-500	1	piece
2CKA001725A1467	Cover Frame 5gang white - Busch-Duro 2000	2515-212-507	1	piece
2CKA001725A1493	Cover Frame 5gang white - Busch-Duro 2000 SI Linear	2515-212K-102	1	piece
2CKA001719A0111	Cover Frame 1gang white - Busch-Duro 2000	2518-212	1	piece

Installation

Instructions and Manuals:

No document needed

Technical

Data Sheet, Technical Information:

No document needed
Function:

with enhanced contact protection
Rated Voltage (U_r):

250 V
Rated Current (I_n):

16 A
Frequency (f):

50 Hz
Rated Frequency (f):

50 Hz
Power Supply Type:

EDP (Electronic Data Processing)
Number of Poles:

2P+E
Number of Phases:

1
Number of Gangs:

1
Design Range:

Busch-Duro 2000
Busch-Duro 2000 SI Linear
Connection Type:

Plug Clamp
Mounting Type:

Flush Mounted
Socket Outlet Type:

Protective Contact (SCHUKO)
Type of Fastening:

Mounting with Claw
Mounting with Screw
Surface Finishing:

Untreated
Glossy
Material:

Thermoplastic
Label Space Provided:

No
Includes:

Cover plate and insert
Legend:

EDV
RAL Number:

RAL 1013 - Oyster White
Color:

white
Safety Function Option:

Safety Shutter

Environmental

Degree of Protection:

IP20
RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Information:

2CKA200000E3602
REACH Declaration:

2CKA309999E9999
Conflict Minerals Reporting Template (CMRT):

9AKK108468A3363

Technical UL/CSA

Short-Circuit Current Rating (SCCR):

0 kA

Dimensions

Product Net Width:

71 mm
Product Net Height:

71 mm
Product Net Depth / Length:

45 mm
Product Net Weight:

71 g
Built-In Depth (t₂):

31 mm
Dimension Diagram:

2CKA000097E0504

Ordering

Replaced Product ID (OLD):

2013-0-5313

Certificates and Declarations

Declaration of Conformity - CE:

2CKA100000E2888

Classifications

ETIM 8:

EC000125 - Socket outlet
ETIM 9:

EC000125 - Socket outlet
WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:

Business To Consumer
CN8:

8536 69 90
eClass:

V11.0 : 27144042
