6190/42

General Information

  • Extended Product Type:
    6190/42
  • Product ID:
    2CKA006190A0032
  • EAN:
    4011395988466
  • Catalog Description:

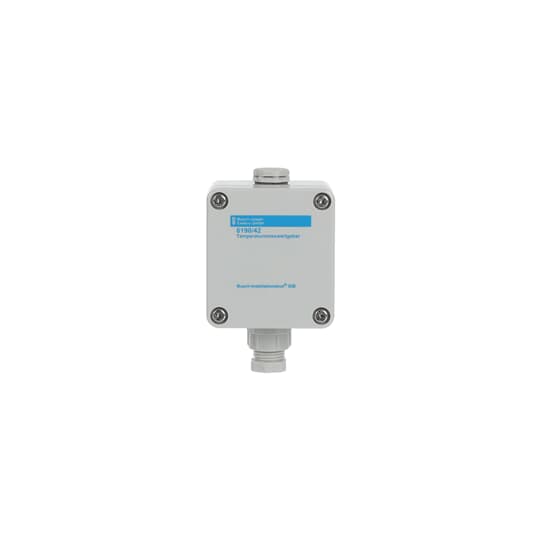

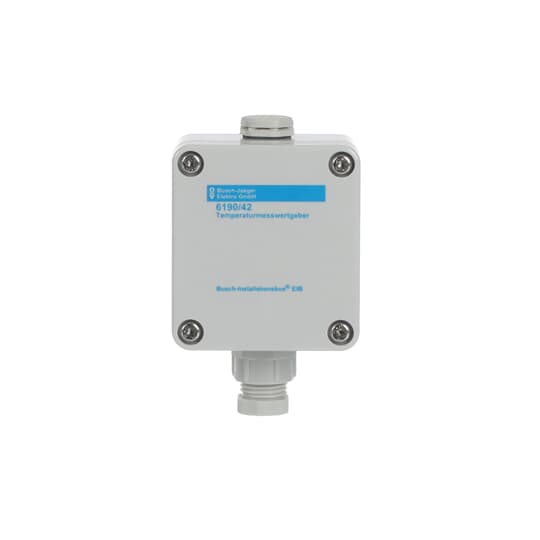

    6190/42 Temperature Sensor, SM
  • Long Description:
    For Weather Station 6190/40-101. Serves for converting the measured temperature (-30 to +70 degrees) into electrical signals (0-10 V). Recommended supply lead 3 x 0.25 mm² (max. 100 m)

Ordering

  • EAN:
    4011395988466
  • Customs Tariff Number:
    85176200
  • Minimum Order Quantity:
    1 piece
  • E-Number (Finland):
    2818990

Dimensions

  • Product Net Depth / Length:
    3.5 cm
  • Product Net Height:
    5.8 cm
  • Product Net Width:
    8.3 cm
  • Product Net Weight:
    0.1 kg

Container Information

  • Package Level 1 Units:
    1 piece
  • Package Level 1 EAN:
    4011395988466
  • Package Level 1 Depth / Length:
    0.09 m
  • Package Level 1 Height:
    0.04 m
  • Package Level 1 Width:
    0.06 m
  • Package Level 1 Gross Weight:
    100 g

Technical

  • Ambient Air Temperature:
    Operation -30 ... +70 °C
  • Compatible Bus Systems:
    KNX (TP)
  • Degree of Protection:
    IP65
  • Mounting Type:
    Surface Mounted

Certificates and Declarations (Document Number)

Environmental

  • RoHS Status:
    Following EU Directive 2002/95/EC August 18, 2005 and amendment

Classifications

  • ETIM 7:
    EC002081 - Temperature probe
  • ETIM 8:
    EC002081 - Temperature probe
  • WEEE Category:
    5. Small Equipment (No External Dimension More Than 50 cm)
