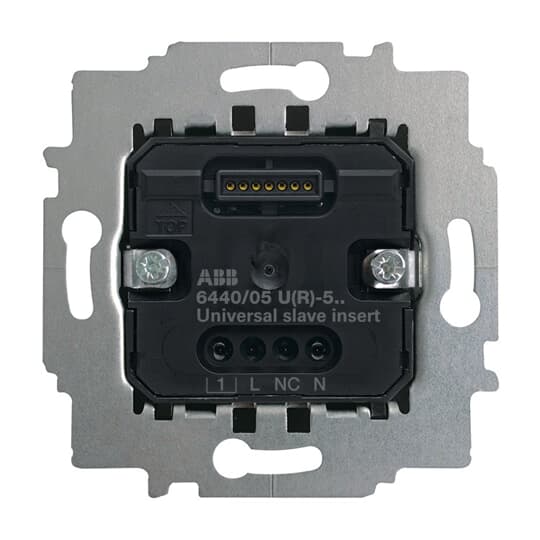

6440/05 U-500

General Information

  • Extended Product Type:
    6440/05 U-500
  • Product ID:
    2CKA006400A0091
  • EAN:
    4011395274101
  • Catalog Description:
    6440/05 U-500 Universal slave insert
  • Long Description:
    3 wire connection (neutral conductor required). For the extension of the Busch-Comfort switch or presence detector installations. For communication with Universal relay insert 6440/01 U. For communication with Universal e-contact insert 6440/04 U. For Busch-Comfort switch control element 6815-to-101. For Busch-Presence detector sensors 6813- to -102.

Categories

Show All...

Technical

  • Suitable For:
    2CKA006800A2823
    2CKA006800A2825
    2CKA006800A2828
    2CKA006800A2830
    2CKA006800A2832
    2CKA006800A2834
    2CKA006800A2838
    2CKA006800A2840
    2CKA006800A2841
    2CKA006800A2843
    2CKA006800A2848
    2CKA006800A2849
    2CKA006800A2850
    2CKA006800A2851
    2CKA006800A2852
    2CKA006800A2861
    2CKA006800A2863
    2CKA006899A2369
    2CKA006899A2371
    2CKA006400A0085
    2CKA006400A0088
  • Rated Voltage (Ur):
    230 V
  • Auxiliary Voltage AC/DC:
    230 V AC/DC
  • Rated Frequency (f):
    50...60 Hz
  • Power Loss:
    0.3 W
  • Mounting Type:
    Flush Mounted
  • Battery Weight:
    0 g

Environmental

  • Ambient Air Temperature:
    Operation -5...45 °C
  • RoHS Status:
    Following EU Directive 2002/95/EC August 18, 2005 and amendment

Dimensions

  • Product Net Width:
    7.1 cm
  • Product Net Height:
    7.1 cm
  • Product Net Depth / Length:
    3.3 cm
  • Product Net Weight:
    0.12 kg
  • Built-In Depth (t2):
    32 mm

Container Information

  • Package Level 1 Units:
    1 piece
  • Package Level 1 Width:
    0.08 m
  • Package Level 1 Height:
    0.06 m
  • Package Level 1 Depth / Length:
    0.095 m
  • Package Level 1 Gross Weight:
    120 g
  • Package Level 1 EAN:
    4011395274101

Ordering

  • Minimum Order Quantity:
    1 piece
  • Customs Tariff Number:
    85389099
  • E-Number (Finland):
    2620056
  • E-Number (Sweden):
    1301262
  • Replacement Product ID (NEW):
    2CKA006800A3051
  • Country of Origin:
    Germany (DE)

Certificates and Declarations (Document Number)

Classifications

  • ETIM 7:
    EC001035 - Movement sensor basic element
  • ETIM 8:
    EC001035 - Movement sensor basic element
  • WEEE Category:
    5. Small Equipment (No External Dimension More Than 50 cm)
  • WEEE B2C / B2B:
    Business To Consumer
  • CN8:
    8538 90 99
