6550 U-101

General Information

Extended Product Type:

6550 U-101
Product ID:

2CKA006550A0041
EAN:

4011395991336
Catalog Description:

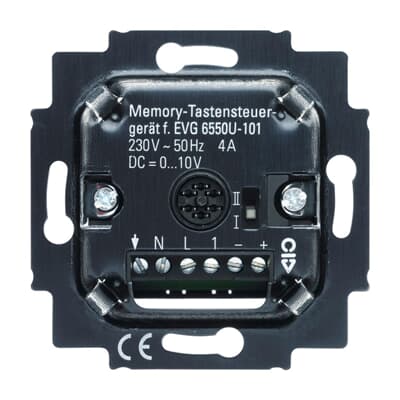

6550 U-101 Dimmer insert Touch control button
Long Description:

3 wire connection (neutral conductor required). For controlling ballast units for fluorescent lamps with control output 1-10 V DC, control current max. 50 mA DC. For control cover with control lamp 6543-xxx-10x. For Busch-Remote control IR control cover 6066-xxx-10x and 6067-xxx-10x. For comfort timer control element 6455-101-500. For Busch-Watchdog 180 flush-mounted Sensor Standard 6810-21x-101. For Busch-Watchdog 180 flush-mounted sensor Comfort II 6800-xxx-104 and 6800-xxx-104M. For Busch-Watchdog Presence tech 6813-xxx-101 und 6813/11-xxx. Combinable with Busch-Watchdog extension insert 6805 U. Operation also possible via conventional push buttons (2020 US, 2021/6 UK). For LED control via control gears Without control cover.

Accessories

Identifier	Description	Type	Qty	Unit Of Measure
2CKA006020A0606	6066-79-101 Cover Plates (partly incl. Insert) champagne metallic	6066-79-101	1	piece
2CKA006020A0556	6066-74-101 Cover Plates (partly incl. Insert) alpine white	6066-74-101	1	piece
2CKA006020A1332	6066-82 Cover Plates (partly incl. Insert) ivory white	6066-82	1	piece
2CKA006020A1334	6066-84 Cover Plates (partly incl. Insert) studio white	6066-84	1	piece
2CKA006599A2597	6543-74-101 Control Element for Switch/dimmer Single push button alpine white - impuls	6543-74-101	1	piece
2CKA006599A2621	6543-79-101 Control Element for Switch/dimmer Single push button champagne metallic - impuls	6543-79-101	1	piece
2CKA006599A2831	6543-82-101 Control Element for Switch/dimmer Single push button ivory white - 63x63	6543-82-101	1	piece
2CKA006590A0152	6597 Flush Mounted Inserts	6597	1	piece
2CKA006020A1318	6066-22G-102 Cover Plates (partly incl. Insert) ivory	6066-22G-102	1	piece
2CKA001413A0897	2021/6 UK Switch insert 1P 1 rocker Single push button with Neon lamp 1 CO	2021/6 UK	1	piece
2CKA006599A2820	6543-20-102 Control Element for Switch/dimmer Single push button with Neon lamp platinum - alpha	6543-20-102	1	piece
2CKA006599A2870	6543-266-102 Control Element for Switch/dimmer Single push button with Neon lamp titanium - alpha	6543-266-102	1	piece
2CKA006599A2869	6543-260-102 Control Element for Switch/dimmer Single push button with Neon lamp palladium - alpha	6543-260-102	1	piece
2CKA006599A2824	6543-24G-102 Control Element for Switch/dimmer Single push button with Neon lamp studio white - alpha	6543-24G-102	1	piece
2CKA006599A2822	6543-22G-102 Control Element for Switch/dimmer Single push button with Neon lamp ivory - alpha	6543-22G-102	1	piece
2CKA006599A2816	6543-214-102 Control Element for Switch/dimmer Single push button with Neon lamp alpine white - Reflex SI	6543-214-102	1	piece
2CKA006599A2815	6543-212-102 Control Element for Switch/dimmer Single push button with Neon lamp white - Busch-Duro 2000	6543-212-102	1	piece
2CKA006020A1319	6066-24-102 Cover Plates (partly incl. Insert) studio white matt	6066-24-102	1	piece
2CKA006020A1317	6066-21-102 Cover Plates (partly incl. Insert) bronze	6066-21-102	1	piece
2CKA006020A1365	6066-260-102 Cover Plates (partly incl. Insert) palladium	6066-260-102	1	piece
2CKA006020A1320	6066-24G-102 Cover Plates (partly incl. Insert) studio white	6066-24G-102	1	piece
2CKA006599A2823	6543-24-102 Cover Plates (partly incl. Insert) for Switch/dimmer Single push button studio white matt	6543-24-102	1	piece
2CKA006599A2821	6543-21-102 Control Element for Switch/dimmer Single push button with Neon lamp bronze - alpha	6543-21-102	1	piece
2CKA006020A1316	6066-20-102 Cover Plates (partly incl. Insert) platinum	6066-20-102	1	piece

Installation

Instructions and Manuals:

DEBJE-0273-1-6306_6550_ok
Wiring Diagram:

2CKA000097E0082

Technical

Suitable For:

2CKA001413A0475
2CKA006020A0606
2CKA006020A0556
2CKA006020A1332
2CKA006020A1338
2CKA006020A1342
2CKA006020A1361
2CKA006020A1340
2CKA006020A1334
2CKA006020A1336
2CKA006599A2597
2CKA006599A2720
2CKA006599A2738
2CKA006599A2621
2CKA006599A2712
2CKA006599A2831
2CKA006599A2865
2CKA006599A2837
2CKA006599A2840
2CKA006599A2846
2CKA006599A2843
2CKA006599A2834
2CKA006590A0152
2CKA006020A1318
2CKA001413A0897
2CKA006599A2820
2CKA006599A2870
2CKA006599A2869
2CKA006599A2868
2CKA006599A2867
2CKA006599A2824
2CKA006599A2822
2CKA006599A2816
2CKA006599A2815
2CKA006020A1319
2CKA006020A1317
2CKA006020A1365
2CKA006020A1364
2CKA006020A1363
2CKA006020A1320
2CKA006599A2827
2CKA006599A2823
2CKA006599A2821
2CKA006020A1059
2CKA006020A1042
2CKA006020A1316
2CKA006020A1323
2CKA006020A1034
Rated Voltage (U_r):

230 V
Rated Control Supply Voltage (U_s):

1...10 V
Auxiliary Voltage AC/DC:

230 V AC/DC
Frequency (f):

50...50 Hz
Rated Frequency (f):

50 Hz
Power Watt:

700...700 V·A
Actuator Type:

Touch control button
Connection Type:

Screw Clamp
Load Type:

Electronic ballast 1-10 V
Mounting Type:

Flush Mounted
Surface Finishing:

Surface protection: Untreated
Surface finishing: Matt
Material:

Aluminium
Application Function:

Electrical Load and Light Control
Control Supply Voltage:

1...10 V

Environmental

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Information:

2CKA200000E5950
REACH Declaration:

2CKA309999E9999

Dimensions

Product Net Width:

71 mm
Product Net Height:

71 mm
Product Net Depth / Length:

41 mm
Product Net Weight:

138 g
Built-In Depth (t₂):

32 mm
Dimension Diagram:

2CKA000097E0660

Ordering

Minimum Order Quantity:

1 piece
Package Level 1 Units:

carton 1 piece
Package Level 1 Gross Weight:

0.138 kg
Customs Tariff Number:

85365080
E-Number (Finland):

3512786
E-Number (Sweden):

1360072
Country of Origin:

Germany (DE)

Certificates and Declarations

Declaration of Conformity - CE:

2CKA100000E1673

Classifications

ETIM 8:

EC000025 - Dimmer
ETIM 9:

EC000025 - Dimmer
WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:

Business To Consumer
CN8:

8536 50 80
eClass:

V11.0 : 27144014
