6584

General Information

  • Extended Product Type:
    6584
  • Product ID:
    2CKA006590A0177
  • EAN:
    4011395066911
  • Catalog Description:
    Capacity Booster MDRC
  • Long Description:
    To be used with Busch-Dimmer®, MDRC 6583. For incandescent lamps, 230 V tungsten halogen lamps and low-voltage halogen lamps with conventional transformers or electronic transformers. A combination of up to 6 power electronic modules (3,000 W/VA) possible. With ready-made line with jack (RJ12) for connecting to central dimmer 6583.

Categories

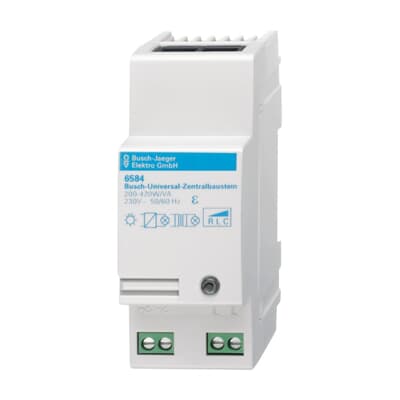

  • 6584 - image 0

Installation

Technical

  • Suitable For:
    2CKA006590A0176
  • Rated Voltage (Ur):
    230 V
  • Frequency (f):
    50...50 Hz
  • Rated Frequency (f):
    50 ... 60 Hz
  • Power Consumption (@Pcons):
    200...420 W
  • Load Type:
    Universal
  • Mounting Type:
    DIN-Rail
  • Surface Finishing:
    Surface protection: Untreated
    Surface finishing: Glossy
  • Material:
    Thermoplastic
  • Application Function:
    Electrical Load and Light Control

Environmental

  • RoHS Status:
    Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • RoHS Information:
    2CKA200000E5964
  • REACH Declaration:
    2CKA309999E9999

Dimensions

  • Width in Number of Modular Spacings:
    2
  • Product Net Width:
    35 mm
  • Product Net Height:
    90 mm
  • Product Net Depth / Length:
    65 mm
  • Product Net Weight:
    0.107 kg
  • Dimension Diagram:
    2CKA000097E0732

Ordering

  • Replaced Product ID (OLD):
    6590-0-0177

Certificates and Declarations

Classifications

  • ETIM 8:
    EC000235 - Power boost (for dimmer)
  • ETIM 9:
    EC000235 - Power boost (for dimmer)
  • WEEE Category:
    5. Small Equipment (No External Dimension More Than 50 cm)
  • WEEE B2C / B2B:
    Business To Consumer
  • CN8:
    8538 90 99
