Detailed information for: 6844 AGM-204-500

This page contains technical data sheet, documents library and links to offering related to this product. If you require any other information, please contact us using form located at the bottom of the page.

Print...
Print to Pdf...
Data Sheet
Downloads
Where to buy online

6844 AGM-204-500

General Information

  • Extended Product Type:
    6844 AGM-204-500
  • Product ID:
    2CKA006800A2507
  • EAN:
    4011395130414
  • Catalog Description:
    Outdoor Movement Detector BasicLINE alpine white
  • Long Description:
    Electronic movement detector for detecting thermal motion. With ground surveillance. Continuously variable detection sensitivity. Additional possibility for switch-on via normally open push-button switch. Switch-off delay: 1 to 10 min., adjustable. With brightness-independent test mode for evaluating the detection zone.

Categories

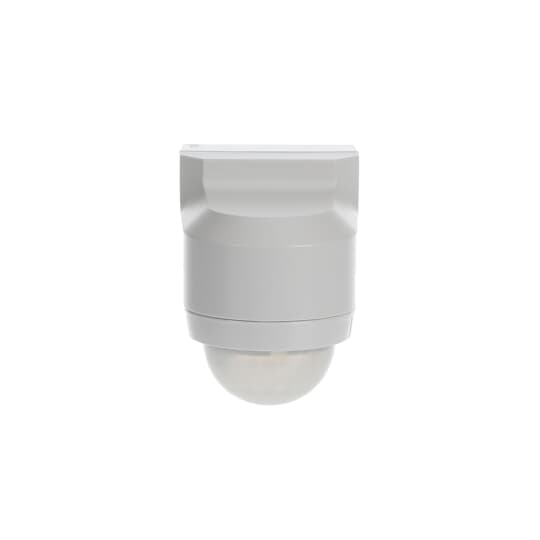

  • 6844 AGM-204-500 - image 0
  • 6844 AGM-204-500 - image 1
  • 6844 AGM-204-500 - image 2

Installation

Technical

  • Data Sheet, Technical Information:
    No document needed
  • Rated Voltage (Ur):
    230 V
  • Auxiliary Voltage AC/DC:
    230 V AC/DC
  • Frequency (f):
    50...50 Hz
  • Rated Frequency (f):
    50 Hz
  • Maximum Switching Power:
    2000 W
  • Power Loss:
    0.5 W
  • Measuring Range:
    Diameter Detection range on floor 24 m
  • Number of Outputs:
    1
  • Design:
    BasicLINE
  • Minimum Switching Time:
    Switch-On 5 second [unit of time]
  • Load Type:
    230 V- LEDi, typical.
  • Mounting Type:
    Surface Mounted
  • Sensor Type:
    Passive infrared
  • Surface Finishing:
    Surface protection: Untreated
    Surface finishing: Matt
  • Material:
    Thermoplastic
  • Illuminance:
    10 ... 200 lx
  • Model Number:
    Movement sensor
  • RAL Number:
    RAL 9016 - Traffic White
  • Color:
    alpine white
  • Application Function:
    Electrical Load and Light Control

Environmental

  • Ambient Air Temperature:
    Operation -20 ... +40 °C
  • Degree of Protection:
    IP55
  • RoHS Status:
    Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • RoHS Information:
    2CKA200000E6383
  • REACH Declaration:
    2CKA309999E9999
  • Conflict Minerals Reporting Template (CMRT):
    9AKK108468A3363

Dimensions

  • Product Net Weight:
    0.34 kg

Ordering

  • Replaced Product ID (OLD):
    6800-0-2507

Certificates and Declarations

Classifications

  • ETIM 8:
    EC000133 - Movement sensor complete
  • ETIM 9:
    EC000133 - Movement sensor/presence detector complete
  • WEEE Category:
    5. Small Equipment (No External Dimension More Than 50 cm)
  • WEEE B2C / B2B:
    Business To Consumer
  • CN8:
    8536 50 80
  • eClass:
    V11.0 : 27144007
