Detailed information for: 8136/12-811-500

This page contains technical data sheet, documents library and links to offering related to this product. If you require any other information, please contact us using form located at the bottom of the page.

Print...
Print to Pdf...
Data Sheet
Downloads
Where to buy online

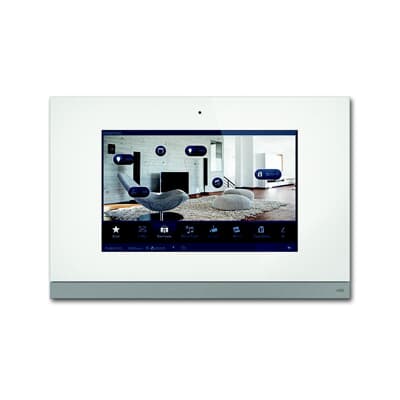

8136/12-811-500

General Information

  • Extended Product Type:
    8136/12-811-500
  • Product ID:
    2CKA008136A0028
  • EAN:
    4011395158821
  • Catalog Description:
    8136/12-811-500 ComfortPanel 12" -811
  • Long Description:
    Free programmable IP/KNX touch display can be used as a control centre for the whole house With a closed capacitative glass surface and a design strip made of stainless steel (brushed). With integrated camera. Easy control using intuitive navigation concept. House control: switching, dimming, blinds, RTC, scene/sequences, timed controls. Door communication: Indoor station for the ABB-Welcome system in combination with IP gateway 83342. Safety: alarm function, message function, presence simulation. Representation of individual floor plans, room images and operation pages. 31 cm (12.1") touchdisplay with 1280 x 800 pixel. Compatible with ABB i-bus® KNX Maintenance via remote control over IP. Control with smartphones and tablets via the ComfortTouch App (Apple iOS /Google Android from Version 4).

Ordering

  • EAN:
    4011395158821
  • Customs Tariff Number:
    85371091
  • Minimum Order Quantity:
    1 piece
  • E-Number (Finland):
    2815294
  • E-Number (Sweden):
    1738309

Dimensions

  • Product Net Weight:
    3.94 kg

Container Information

  • Package Level 1 Units:
    1 piece
  • Package Level 1 EAN:
    4011395158821
  • Package Level 1 Depth / Length:
    520 mm
  • Package Level 1 Height:
    160 mm
  • Package Level 1 Width:
    350 mm
  • Package Level 1 Gross Weight:
    3.94 kg

Technical

  • Ambient Air Temperature:
    Operation 0 ... +45 °C
  • Degree of Protection:
    IP20
  • Display Type:
    Colour
  • Mounting Type:
    Surface Mounted
  • Screen Size:
    12 in

Certificates and Declarations (Document Number)

Environmental

  • RoHS Status:
    Following EU Directive 2002/95/EC August 18, 2005 and amendment

Classifications

  • ETIM 7:
    EC000783 - Signalling and operation panel for bus system
  • ETIM 8:
    EC000783 - Signalling and operation panel for bus system
  • WEEE Category:
    5. Small Equipment (No External Dimension More Than 50 cm)
