N1118.5 NS

General Information

  • Extended Product Type:
    N1118.5 NS
  • Product ID:
    2CLA111850N1503
  • EAN:
    8427238256535
  • Catalog Description:

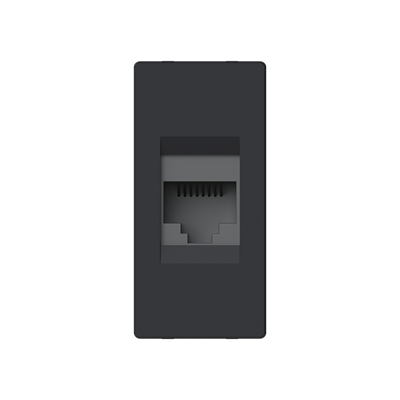

    Data outlet RJ45 1 gang Black - Unno
  • Long Description:
    Color: Black.
    RJ45 type connector.
    Cat.5e UTP.
    In compliance with ANSI/TIA/EIA 568B.2 ,
    ISO/IEC11801 & EN50173.
    Universal TIA/EIA 568A and 568B labeling.
    Housing: ABS UL-94-0.
    Durability: 750 cycles min. (ISO/IEC 11801, IEC 60603-7-4).
    IDC: PC UL94V-0, Accept 22-26AWG solid wire.
    Contact: RJ45 8P8C, 3~50 micro-inch gold plating
    over nickel plated on contact area.
    Tool-less wiring.
    Size: 1 module

Installation

  • Instructions and Manuals:
    No document needed
  • Mounting Type:
    Flush mounted (plaster)
  • Type of Fastening:
    Engage (Snap)

Technical

  • Data Sheet, Technical Information:
    9AKK107045A9769
  • Application:
    RJ45
  • Design Range:
    Unno
  • Type of Indicator:
    Without indication field
  • Outlet Orientation:
    Straight
  • Surface Finishing:
    Decor
    Glossy
  • Material:
    Plastic
    Thermoplastic
  • Color:
    Black

Material Compliance

  • RoHS Status:
    No declaration needed
  • Conflict Minerals Reporting Template (CMRT):
    9AKK108468A3363

Environmental

  • Degree of Protection:
    IP20

Dimensions

  • Product Net Width:
    22 mm
  • Product Net Height:
    46 mm
  • Product Net Weight:
    0.014 kg

Certificates and Declarations

Classifications

  • ETIM 9:
    EC000018 - Insert/cover for communication technology
  • WEEE Category:
    5. Small Equipment (No External Dimension More Than 50 cm)
  • WEEE B2C / B2B:
    Business To Consumer
  • UNSPSC:
    39121406
