Detailed information for: 2018

This page contains technical data sheet, documents library and links to offering related to this product. If you require any other information, please contact us using form located at the bottom of the page.

Data Sheet
Downloads
Where to buy online

2018

General Information

  • Extended Product Type:
    2018
  • Product ID:
    2CLA201800A1003
  • EAN:
    8427238046853
  • Catalog Description:

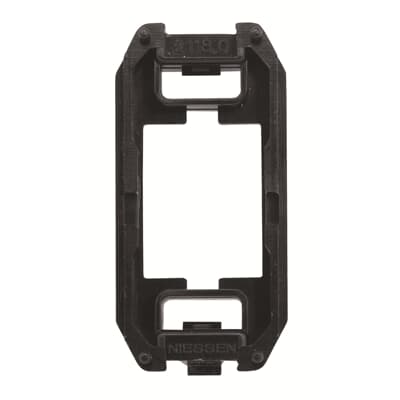

    Data outlet For data connection housing 1 gang - Zenit
  • Long Description:
    For connectors of type KEYSTONE, AMP, BRAND-REX, OPENET- ICS, THT LEVITON, KRONE.
    Adapter valid for cover plate ref. 8X18.1 and 8X18.2

Installation

  • Instructions and Manuals:
    2CLX210109N1001
  • Mounting Type:
    Flush mounted (plaster)
  • Type of Fastening:
    Engage (Snap)

Technical

  • Data Sheet, Technical Information:
    9AKK10103A5108
  • Application:
    For data connection housing
  • Design Range:
    Zenit
  • Type of Indicator:
    Without indication field
  • Outlet Orientation:
    Straight
  • Application Function:
    Data Communication / Multimedia

Material Compliance

  • RoHS Information:
    2CLC201800A1003
  • RoHS Status:
    Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Conflict Minerals Reporting Template (CMRT):
    9AKK108468A3363

Environmental

  • Ambient Air Temperature:
    Operation -5 ... +35 °C
    Storage -5 ... +50 °C
  • Degree of Protection:
    IP20

Dimensions

  • Product Net Width:
    22 mm
  • Product Net Height:
    44 mm
  • Product Net Weight:
    0.004 kg

Ordering

  • Replacement Product ID (NEW):
    2CLA201800A1001
  • Replaced Product ID (OLD):
    2CL0201800MEX

Certificates and Declarations

Classifications

  • ETIM 9:
    EC000018 - Insert/cover for communication technology
  • WEEE Category:
    Product Not in WEEE Scope
  • UNSPSC:
    39121406
