Detailed information for: N2160.8 BL

This page contains technical data sheet, documents library and links to offering related to this product. If you require any other information, please contact us using form located at the bottom of the page.

Data Sheet
Downloads
Where to buy online

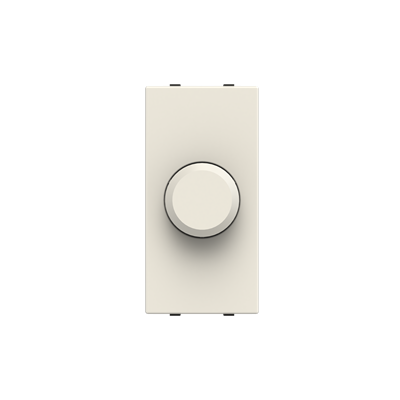

N2160.8 BL

General Information

  • Extended Product Type:
    N2160.8 BL
  • Product ID:
    2CLA216080N1101
  • EAN:
    8427238229621
  • Catalog Description:
    Dimmer White - Zenit
  • Long Description:
    Color: White.
    Rated voltage: 127 Vac ± 10%.
    Frequency: 60 Hz.
    Power (min./max load):
    L-mode:
    - LEDi (leading-edge): 2 / 70 W/VA (max. 10 lamps).
    T-mode:
    - LEDi (trailing-edge): 2 / 180 W/VA (max. 10 lamps).
    - LV LEDi with 12V transformer (L or LC): 2 / 180 W/VA (max. 10 lamps).
    - Incandescent lamps: 2 / 180 W/VA. - Halogen lamps: 2 / 180 W/VA.
    *Max. 10 lamps.
    Load selection
    2 or 3 wire connection.
    OFF position
    Electronic back-up fuse & overload protection.
    Size: 1 module.

Installation

  • Instructions and Manuals:
    2CLX216039A1001
  • Mounting Type:
    Flush mounted (plaster)
  • Type of Fastening:
    Snapper Mounting

Technical

  • Data Sheet, Technical Information:
    9AKK10103A5108
  • Rated Voltage (Ur):
    110 ... 127 V
  • Frequency (f):
    60 ... 60 Hz
  • Design Range:
    Zenit
  • Actuator Type:
    Turn button
  • Connection Type:
    Screw
  • Load Type:
    Resistive load
  • Surface Finishing:
    Untreated
    Glossy
  • Material:
    Plastic
    Thermoplastic
  • RAL Number:
    RAL 9010 - Pure White
  • Color:
    White
  • Number of Batteries:
    0
  • Control Supply Voltage:
    1 ... 10 V

Material Compliance

  • RoHS Information:
    2CLC216080N1101
  • RoHS Status:
    Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Conflict Minerals Reporting Template (CMRT):
    9AKK108468A3363

Environmental

Dimensions

  • Product Net Width:
    23.000 mm
  • Product Net Height:
    44.000 mm
  • Product Net Depth / Length:
    37.000 mm
  • Built-In Depth (t2):
    38 mm

Ordering

  • Replaced Product ID (OLD):
    2CLA216080N1102
    2CLA216080N1103

Certificates and Declarations

Classifications

  • ETIM 9:
    EC000025 - Dimmer
  • WEEE Category:
    5. Small Equipment (No External Dimension More Than 50 cm)
  • WEEE B2C / B2B:
    Business To Consumer
  • UNSPSC:
    39122206
