Detailed information for: 8187.9

This page contains technical data sheet, documents library and links to offering related to this product. If you require any other information, please contact us using form located at the bottom of the page.

Print...
Print to Pdf...
Data Sheet
Downloads
Where to buy online

8187.9

General Information

  • Extended Product Type:
    8187.9
  • Product ID:
    2CLA818790A1001
  • EAN:
    8427238161990
  • Catalog Description:
    French/Earth-pin socket outlet for plain covers French norm NF - Sky Niessen
  • Long Description:
    Rated voltage: 250 Vac
    Rated current: 16A
    Type E: 2P + E
    Shuttered for child safety
    Screwless terminals
    Included: fixing claws
    Cover plate code: 8587.9

Categories

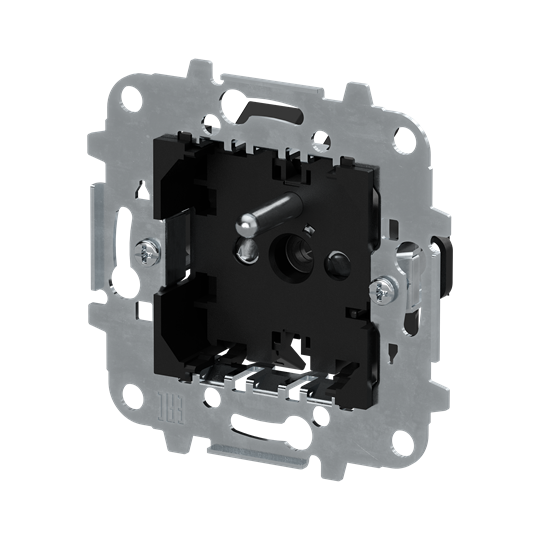

  • 8187.9 - image 0

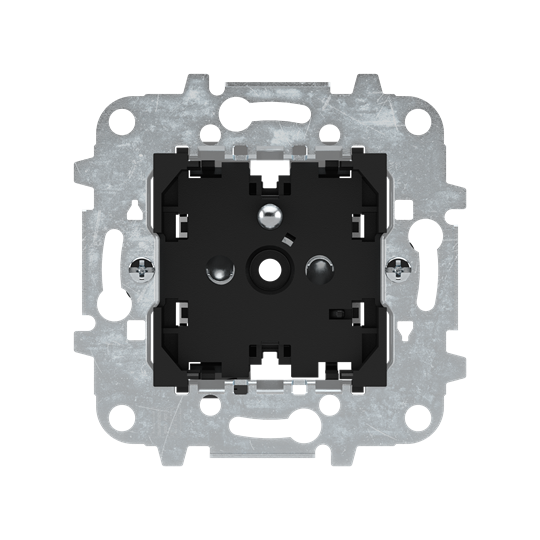

  • 8187.9 - image 1

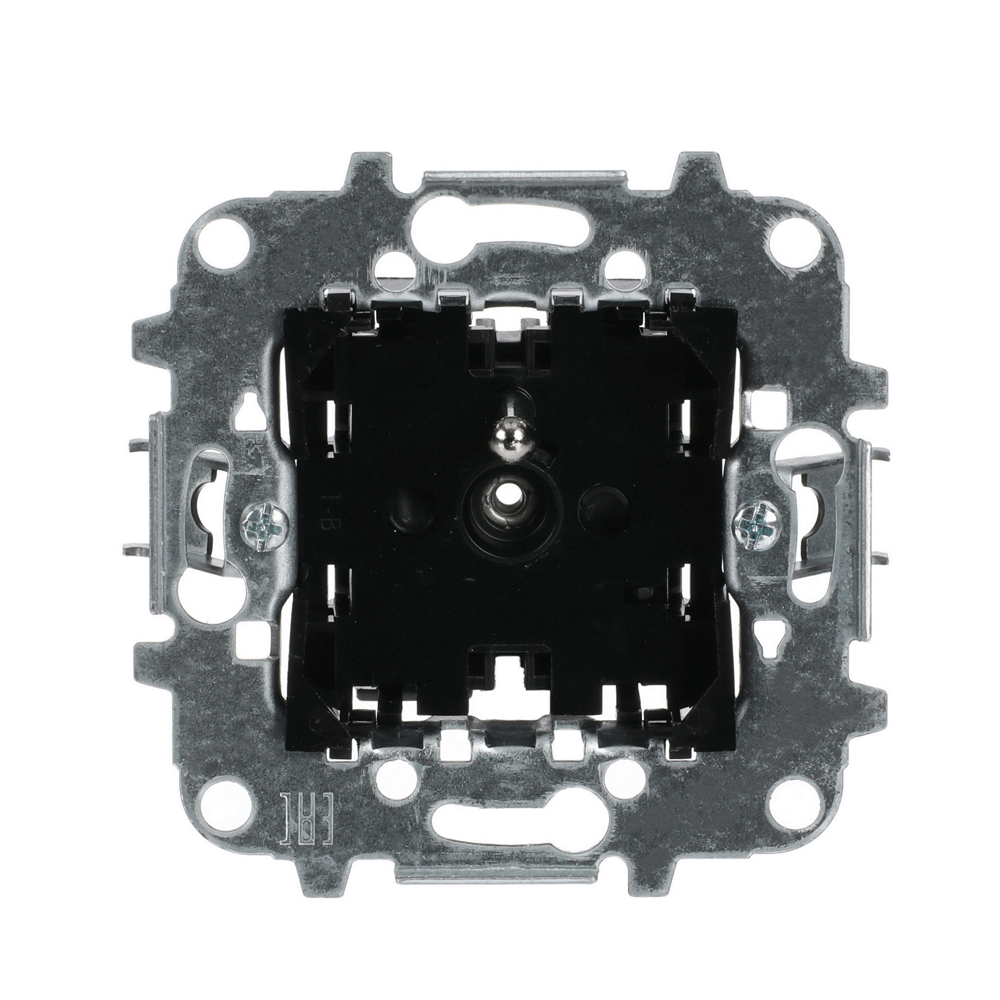

  • 8187.9 - image 2

Installation

ABB EcoSolutions

  • ABB EcoSolutions:
    Yes

Circular Value

  • Circular Design Principles Recyclability Rate:
    Design for Closing Resource Loops - Standard EN45555 - 40 %
  • Circular Design Principles Ecodesign:
    9AKK108468A3800
  • Sustainable Material Content in Packaging:
    Recycled Cardboard - 92 %
  • Offered with Extended Lifetime:
    Product Modularity
  • Offered with Takeback Services:
    Take Back for Recycling

Eco Transparency

Technical

  • Data Sheet, Technical Information:
    9AKK107046A0356
  • Rated Voltage (Ur):
    250 V
  • Rated Current (In):
    16 A
  • Frequency (f):
    50...60 Hz
  • Number of Phases:
    2
  • Number of Gangs:
    1
  • Design Range:
    Sky Niessen
  • Connection Type:
    Plug Clamp
  • Mounting Type:
    Flush Mounted
  • Socket Outlet Type:
    Power Socket Outlets - French acc. to NF C 61-314
  • Type of Fastening:
    Screw
  • Label Space Provided:
    No
  • Legend:
    Without imprint
  • Model Number:
    French norm NF
  • Number of Batteries:
    0

Environmental

  • Ambient Air Temperature:
    Operation -5 ... +35 °C
    Storage -5 ... +50 °C
  • Degree of Protection:
    IP20
  • RoHS Status:
    Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • RoHS Information:
    2CLC818790A1001
  • REACH Declaration:
    9AKK108467A7464
  • SCIP:
    d57c8a85-cb0c-4d00-9b31-846053291103 Spain (ES)
  • Conflict Minerals Reporting Template (CMRT):
    9AKK108468A3363

Dimensions

  • Product Net Width:
    0.145 m
  • Product Net Height:
    0.074 m
  • Product Net Depth / Length:
    0.216 m
  • Product Net Weight:
    0.066 kg

Certificates and Declarations

Classifications

  • ETIM 8:
    EC000125 - Socket outlet
  • ETIM 9:
    EC000125 - Socket outlet
  • WEEE Category:
    5. Small Equipment (No External Dimension More Than 50 cm)
  • WEEE B2C / B2B:
    Business To Consumer
  • CN8:
    85366990
