TG312G

General Information

  • Extended Product Type:
    TG312G
  • Product ID:
    2CPX010032R9999
  • EAN:
    4011617100324
  • Catalog Description:
    TG312G TG floor stan PCI IP55
  • Long Description:

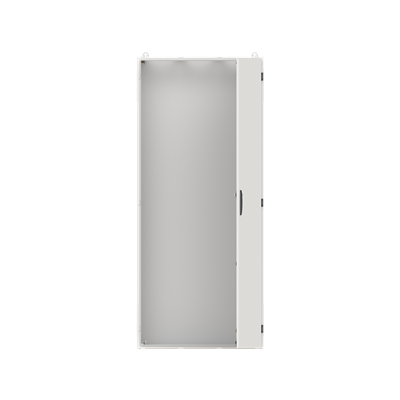

    floor-standing cabinet, series TwinLine, empty cabinet, for the internal use, with Door, class of protection I (earthed), degree of protection IP55, applicable standards: EN 61439-1, EN 61439-2, EN 61439-3, IK code 08, powder-coated, in RAL 7035, enclosure out of sheet steel, single-leaf door, door out of sheet steel, with Standard locking mechanism double bit, door opening angle 180 degree, door hinge right or left, rear wall out of sheet steel, cable entry on top via flange opening pre-cut, on bottom via flange opening pre-punched, on side via flange opening pre-punched, dimensions in mm (H x W x D): 1850 x 800 x 225, Grid unit 12 GU, Overall height 8, panel width 3, Space units 432, pre-assembled for installation of metering-, modules, Combi-Sets, CombiLine-Module, mounting plates on EDF-/WR-mounting frame

Categories

  • Products » Low Voltage Products and Systems » Enclosures » Sub Distribution Boards » Sub Distribution Boards » TwinLine N 55 - Welded

Ordering

  • EAN:
    4011617100324
  • Minimum Order Quantity:
    1 piece
  • Customs Tariff Number:
    85381000

Dimensions

  • Product Net Width:
    800 mm
  • Product Net Height:
    1850 mm
  • Product Net Depth / Length:
    225 mm
  • Product Net Weight:
    51.873 kg

Container Information

  • Package Level 1 Units:
    pack 1 piece
  • Package Level 1 Width:
    860.000 mm
  • Package Level 1 Height:
    1920.000 mm
  • Package Level 1 Depth / Length:
    300.000 mm
  • Package Level 1 Gross Weight:
    53.945 kg
  • Package Level 1 EAN:
    4011617100324
  • Package Level 2 Units:
    pallet (lift) 4 piece
  • Package Level 2 Width:
    840.000 mm
  • Package Level 2 Height:
    2069.000 mm
  • Package Level 2 Depth / Length:
    1200.000 mm
  • Package Level 2 Gross Weight:
    227.48 kg

Additional Information

  • Color:
    light grey
  • Configuration Type:
    pre-assembled for installation of metering-, modules, Combi-Sets, CombiLine-Module, mounting plates on EDF-/WR-mounting frame
  • Cover Plate Type:
    None
  • Degree of Protection:
    IP55
  • DIN Place Units:
    432
  • Enclosure Type:
    floor-standing cabinet
  • Enclosure Type of Height:
    8
  • Field Width:
    3
  • Housing Material:
    Steel plate/plastic
  • Interior Depth:
    170 mm
  • Mounting Type:
    Surface-mounted
  • Number of Rows:
    12
  • Power Loss:
    Δt = 20K 162.6 W
    Δt = 25K 214.6 W
    Δt = 30K 269.3 W
  • Product Main Type:
    TG
  • Product Name:
    TG312G TG floor stan PCI IP55
  • Protection Class:
    Grounded
  • Standards:
    DIN EN 61439-3
    DIN EN 61439-2
  • Surface Finishing:
    Powder coating

Certificates and Declarations (Document Number)

Classifications

  • ETIM 4:
    EC000058 - Empty cabinet
  • ETIM 5:
    EC000058 - Empty cabinet
  • ETIM 6:
    EC000058 - Empty cabinet
  • ETIM 7:
    EC000058 - Empty cabinet
  • Object Classification Code:
    U
  • WEEE Category:
    Product Not in WEEE Scope
