Detailed information for: TZL210

This page contains technical data sheet, documents library and links to offering related to this product. If you require any other information, please contact us using form located at the bottom of the page.

Print...
Print to Pdf...
Data Sheet
Downloads

TZL210

General Information

  • Extended Product Type:
    TZL210
  • Product ID:
    2CPX010584R9999
  • EAN:
    4011617105848
  • Catalog Description:

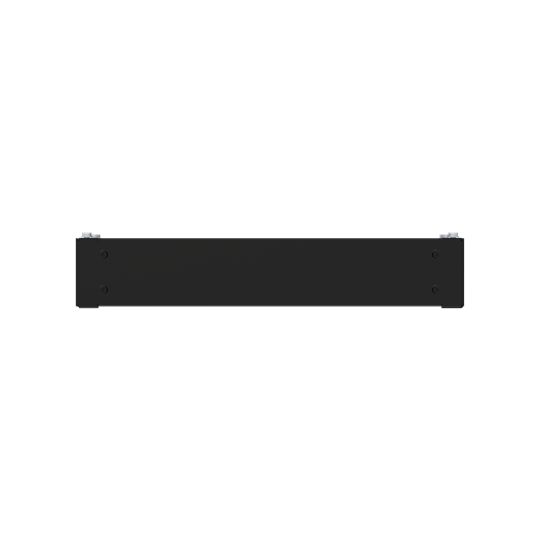

    TZL210 Plinth
  • Long Description:
    Plinth, series TwinLine, suitable for series: TwinLine, partly assembled, for the internal use, powder-coated, in RAL 9005, cable entry on side via pre-punched, dimensions in mm (H x W x D): 100 x 550 x 253.5, panel width 2

Technical

  • Product Name:
    Plinth
  • Maximum Load Capacity:
    165.9 kg
  • Enclosure Type:
    Plinth
  • Material:
    Steel
  • Model Number:
    Base complete
  • RAL Number:
    RAL 9005 - Jet Black
  • Color:
    Black (dark black)

Environmental

Dimensions

  • Product Net Width:
    550 mm
  • Product Net Height:
    100 mm
  • Product Net Depth / Length:
    253.5 mm
  • Product Net Weight:
    3.243 kg

Container Information

  • Package Level 1 Units:
    pack 1 piece
  • Package Level 1 Width:
    110.000 mm
  • Package Level 1 Height:
    110.000 mm
  • Package Level 1 Depth / Length:
    550.000 mm
  • Package Level 1 Gross Weight:
    3.373 kg
  • Package Level 1 EAN:
    4011617105848
  • Package Level 2 Units:
    pallet (lift) 60 piece

Ordering

  • Minimum Order Quantity:
    1 piece
  • Customs Tariff Number:
    85389099
  • Country of Origin:
    Romania (RO)
  • Selling Unit of Measure:
    piece

Certificates and Declarations (Document Number)

Popular Downloads

Classifications

  • ETIM 6:
    EC000721 - Base/base element (switchgear cabinet)
  • ETIM 7:
    EC000721 - Base/base element (switchgear cabinet)
  • ETIM 8:
    EC000721 - Base/base element (enclosure/cabinet)
  • EPLAN Catalog Tree:
    Mechanics / Housings / Base
  • WEEE Category:
    Product Not in WEEE Scope
  • CN8:
    85389099
  • Object Classification Code:
    U
