Detailed information for: 2CSK2140CH

This page contains technical data sheet, documents library and links to offering related to this product. If you require any other information, please contact us using form located at the bottom of the page.

Data Sheet
Downloads
Where to buy online

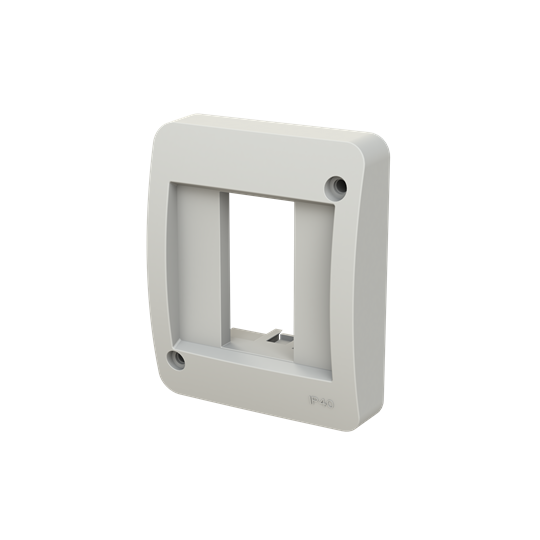

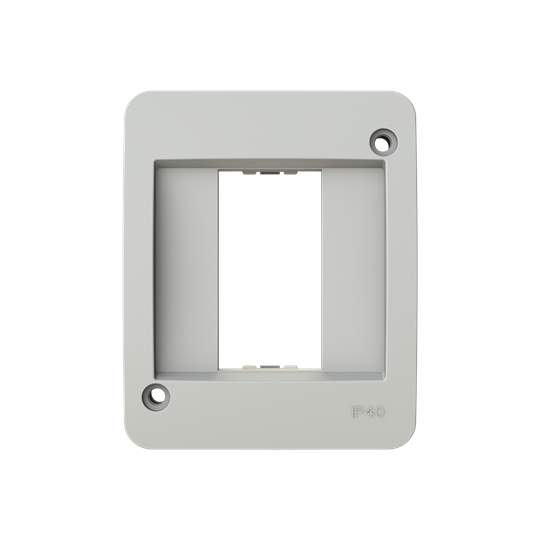

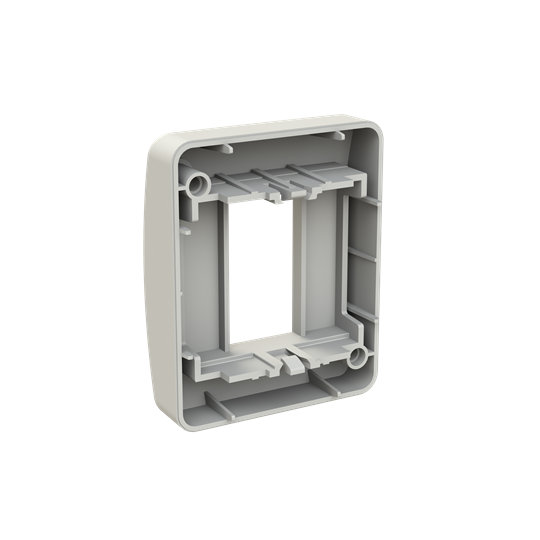

2CSK2140CH

General Information

  • Product ID:
    2CSK2140CH
  • EAN:
    8012542032151
  • Catalog Description:
    IP40 enclosure, 1 place, 2 modules width with Clamp Grey - Chiara
  • Long Description:
    Chiara, ,IP40 enclosure, 1 place, 2 modules width

Installation

Technical

  • Data Sheet, Technical Information:
    2CSC600290D0201
  • Number of Conduit Inlets:
    2
  • Design Range:
    Chiara
  • Cover Mounting Type:
    Screw
  • Entrance Type:
    Type of housing feed-through: Seal membrane
  • Mounting Type:
    Wall-/ceiling mounting
  • Shape:
    Square
  • Surface Finishing:
    Basic
  • Material:
    Plastic
  • Illumination:
    Non-illuminated
  • Includes:
    Clamp
  • Cover Style:
    Mounting Cover
  • RAL Number:
    RAL 7035 - Light Grey
  • Color:
    Grey

Environmental

  • Degree of Protection:
    IP40
  • Conflict Minerals Reporting Template (CMRT):
    9AKK108468A3363

Dimensions

  • Width in Number of Modular Spacings:
    1
  • Product Net Width:
    65 mm
  • Product Net Height:
    60 m
  • Product Net Depth / Length:
    55 mm
  • Product Net Weight:
    0.007 kg

Certificates and Declarations

Classifications

  • ETIM 8:
    EC002600 - Box/housing for surface mounting on the wall/ceiling
  • ETIM 9:
    EC002600 - Box/housing for surface mounting on the wall/ceiling
  • WEEE Category:
    Product Not in WEEE Scope
  • WEEE B2C / B2B:
    Business To Consumer
  • CN8:
    8536500080
