Detailed information for: AKK6-84

This page contains technical data sheet, documents library and links to offering related to this product. If you require any other information, please contact us using form located at the bottom of the page.

Data Sheet
Downloads
Where to buy online

AKK6-84

General Information

  • Extended Product Type:
    AKK6-84
  • Product ID:
    2TKA00000934
  • EAN:
    6438199002330
  • Catalog Description:

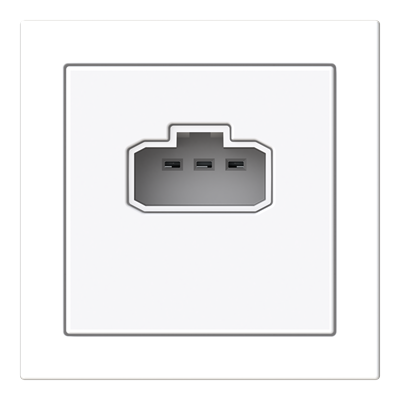

    AKK6-84 Lighting outlet White IP20
  • Long Description:
    DCL lighting outlet, wall outlet, 85x85mm, white

Technical

  • Rated Voltage (Ur):
    250 V
  • Rated Current (In):
    6 A
  • Frequency (f):
    50...60 Hz
  • Number of Phases:
    1
  • Number of Active Pin Terminals:
    3
  • Number of Gangs:
    1
  • Legend:
    None
  • Mounting Type:
    Surface mounted (plaster)
  • Type of Fastening:
    Mounting with Screw
  • Surface Finishing:
    Untreated
    Glossy
  • Material:
    Thermoplastic
    Plastic
  • Label Space Provided:
    No
  • RAL Number:
    RAL 9010 - Pure White
  • Color:
    White
  • Number of Batteries:
    0

Environmental

  • Degree of Protection:
    IP20
  • RoHS Status:
    Following EU Directive 2002/95/EC August 18, 2005 and amendment
  • RoHS Information:
    9AKK106713A4634
  • REACH Declaration:
    9AKK106713A4633
  • Conflict Minerals Reporting Template (CMRT):
    9AKK108468A3363

Dimensions

  • Product Net Width:
    85 mm
  • Product Net Height:
    39 mm
  • Product Net Depth / Length:
    85 mm
  • Product Net Weight:
    0.056 kg
  • Built-In Depth (t2):
    25 mm

Ordering

  • Package Level 1 Units:
    bag 10 piece
  • Package Level 1 Gross Weight:
    0.75 kg
  • E-Number (Finland):
    1130103
  • E-Number (Sweden):
    1815142

Certificates and Declarations

Installation

Popular Downloads

Classifications

  • ETIM 8:
    EC000125 - Socket outlet
  • ETIM 9:
    EC000125 - Socket outlet
  • WEEE Category:
    5. Small Equipment (No External Dimension More Than 50 cm)
  • WEEE B2C / B2B:
    Business To Consumer
  • CN8:
    85366990
