AP7.1

General Information

  • Extended Product Type:
    AP7.1
  • Product ID:
    2TKA140009G1
  • EAN:
    6410016125187
  • Catalog Description:

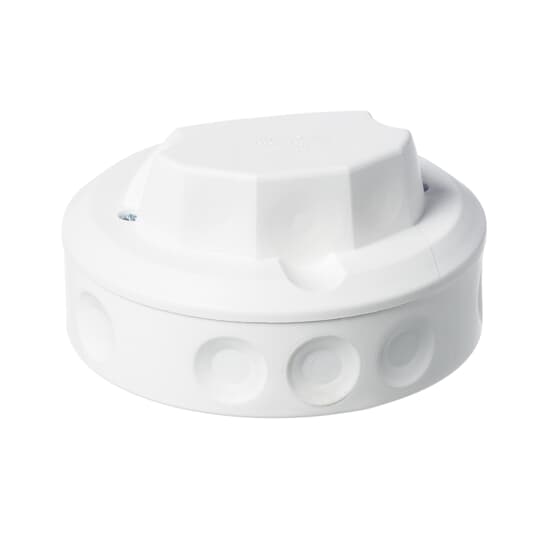

    AP7.1 Connection box IP44 White IP44
  • Long Description:
    The round, dual-component connection box AP7.1 (2,5 mm², 440 V) is equipped with 10 membrane cable entries (17 mm) and two in the bottom. The cover of the box is equipped with three membrane seals (one Ø 20mm and two Ø 16mm) and with three strain-reliefs.

Technical

  • Rated Insulation Voltage (Ui):
    400 V
  • Number of Conduit Inlets:
    12
  • Cover Mounting Type:
    Screw
  • Entrance Type:
    Type of housing feed-through: Seal membrane
  • Mounting Type:
    Universal
  • Shape:
    Round
  • Surface Finishing:
    Untreated
  • Material:
    Plastic
  • Color:
    White

Environmental

  • Degree of Protection:
    IP44
  • RoHS Status:
    Following EU Directive 2002/95/EC August 18, 2005 and amendment
  • RoHS Information:
    9AKK106713A4634
  • REACH Declaration:
    9AKK106713A4633
  • Conflict Minerals Reporting Template (CMRT):
    9AKK108468A3363

Dimensions

  • Product Net Width:
    0.115 m
  • Product Net Height:
    0.074 m
  • Product Net Depth / Length:
    115 mm
  • Product Net Weight:
    0.1273 kg

Ordering

  • Package Level 1 Units:
    box 50 piece
  • Package Level 1 Gross Weight:
    7.035 kg
  • E-Number (Finland):
    1612518

Certificates and Declarations

Installation

Popular Downloads

Classifications

  • ETIM 8:
    EC002600 - Box/housing for surface mounting on the wall/ceiling
  • ETIM 9:
    EC002600 - Box/housing for surface mounting on the wall/ceiling
  • WEEE Category:
    Product Not in WEEE Scope
