SD/U12.55.1-825

General Information

  • Extended Product Type:
    SD/U12.55.1-825
  • Product ID:
    2TMA310011B0001
  • EAN:
    6955891820005
  • Catalog Description:
    SD/U12.55.1-825 2.4" Display 55
  • Long Description:
    Freely programmable Touch panel 1 – up to 12 fold featuring a 2.4-inch IPS screen with 240*240 reso-lution that offers home control and monitoring of the free@home, or KNX system. Control, observe and manage your entire installation on one device: Switching - Dimming - Slider - Blind - RGBW control element - Step switch - Scene switch - Display element - Audio control element. With scene function, logic functions, presence simulation and time programs.

    The display are for the ranges:
    - Busch-Jaeger
    - Busch-balance® SI.

    ABB
    - ABB-SAGA
    - ZONI (needs a separate adapter frame)
    - Sidus (needs a separate adapter frame)


    KNX and free@home functions:
    • A total 12 control elements are displayed on a maximum of 12 pages.
    • 12 fault and alarm messages
    • 10 logic functions
    • 10 weeklytimers
    • 10 scene actuators
    • 1 Integrated temperature controller (RTC)
    • Page display with a maximum of 4touch surfaces on one page
    • Primary function 18 fault and alarm messages
    • Integrated temperature sensor.
    • Haptic feedback
    • proximity sensor
    • brightness sensor
    • 1 binary input or external temperature sensor input (PT1000 / 6226/T).


    External power supply needed: 20-32 VDC (SELV)
    Number of bus subscribers: 1
    Optional Removal protection: TZE/U.0.xx.CK

    Display size: 6,10cm (2.4”)
    Display resolution: 240*240
    Display screen: IPS display
    Dimensions (L x W x D): (55mm x 55mm x 32mm)
    Display surface: glass black (-825)

    Class of temperature controller 1 Contribution to space heating energy efficiency 1,0%.

Categories

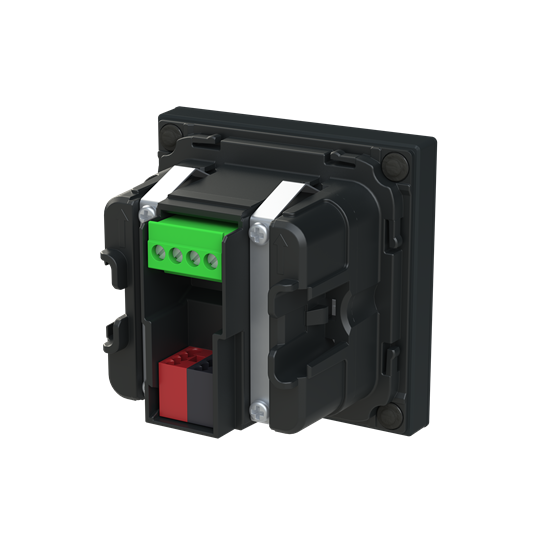

  • SD/U12.55.1-825 - image 0

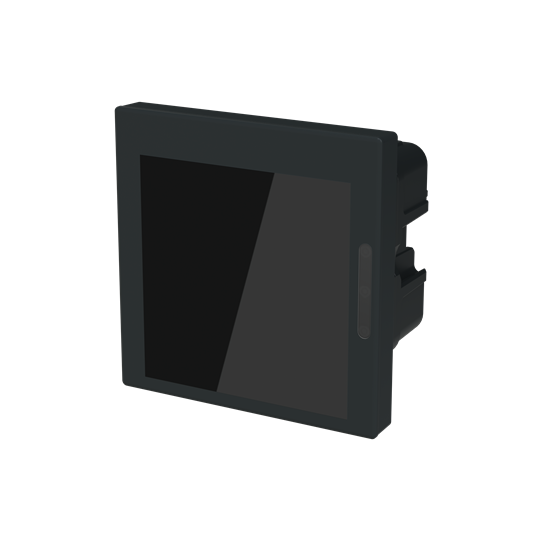

  • SD/U12.55.1-825 - image 1

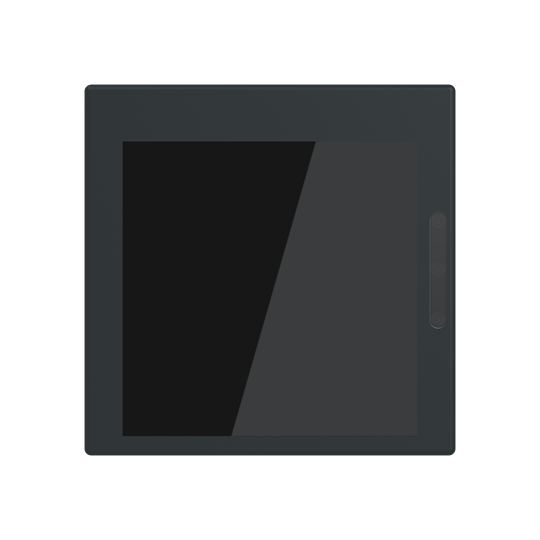

  • SD/U12.55.1-825 - image 2

Technical

  • Suitable For:
    2CDG120037R0011
    2CKA006300A1611
    2CKA006300A1633
  • Rated Voltage (Ur):
    20 ... 32 V
  • Auxiliary Voltage AC/DC:
    24 V DC
  • Number of Outputs:
    1
  • Compatible Bus Systems:
    free@home
    KNX (TP)
  • Product Range:
    KNX
    free@home
  • Design Range:
    Busch-balance SI
    Saga
    Zoni
    Sidus
  • Display Type:
    TFT Touch Display
  • Mounting Type:
    Flush Mounted
  • Housing Material:
    Plastic
  • Material:
    Glass
    Plastic
  • Manual Operation:
    Yes
  • Mounting Position:
    Wall mounted installation
  • Color:
    glass black
  • Number of Batteries:
    0
  • Screen Size:
    2.4 in

Environmental

  • Ambient Air Temperature:
    Operation 0 ... +45 °C
  • Degree of Protection:
    IP20
  • RoHS Status:
    Following EU Directive 2011/65/EU
  • RoHS Information:
    2CKA200000E7790
  • REACH Declaration:
    2CKA309999E9999
  • Conflict Minerals Reporting Template (CMRT):
    9AKK108468A3363

Dimensions

  • Product Net Width:
    42 mm
  • Product Net Height:
    55 mm
  • Product Net Depth / Length:
    55 mm
  • Product Net Weight:
    69 g
  • Built-In Depth (t2):
    32 mm

Certificates and Declarations

Classifications

  • ETIM 8:
    EC000783 - Signalling and operation panel for bus system
  • ETIM 9:
    EC000783 - Signalling and operation panel for bus system
  • WEEE Category:
    5. Small Equipment (No External Dimension More Than 50 cm)
  • WEEE B2C / B2B:
    Business To Consumer
  • CN8:
    8537 10 91
  • eClass:
    V11.0 : 27143101
