Detailed information for: 3BNP004199R1

This page contains technical data sheet, documents library and links to offering related to this product. If you require any other information, please contact us using form located at the bottom of the page.

Data Sheet
Downloads

Additional Information

  • Medium Description:
    230V AC Main Supply
  • Product Type:
    Control_System_Accessory
  • Technical Information:

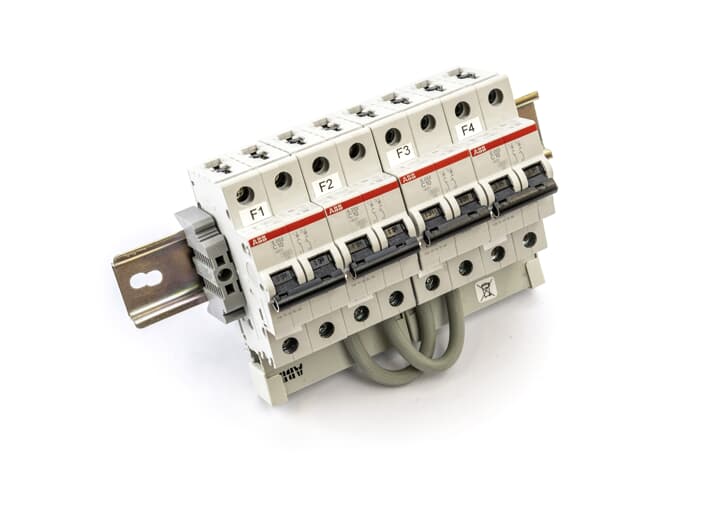

    SXN754 230V AC Main Supply Distribution
    Including 2 x 2x 10A MCB's for optional redundancy
    configuration
    TÜV approval:certified

    Note! This part is exempted from the scope of 2011/65/EU (RoHS)
    as provided in Article 2(4)(c), (e), (f) and (j) therein
    (ref.: 3BSE088609 – EU DECLARATION OF CONFORMITY
    - ABB Advant Master Process Control System)

Ordering

  • HS Code:
    853890-- Parts suitable for use solely or principally with the apparatus of heading 85.35, 85.36 or 85.37.- Other
  • Customs Tariff Number:
    85389091

Dimensions

  • Product Net Depth / Length:
    230 mm
  • Product Net Height:
    80 mm
  • Product Net Width:
    130 mm
  • Product Net Weight:
    1.05 kg

Environmental

  • RoHS Status:
    Following EU Directive 2011/65/EU
  • WEEE Category:
    5. Small Equipment (No External Dimension More Than 50 cm)
  • Number of Batteries:
    0
