Detailed information for: 3BSE006251R1

This page contains technical data sheet, documents library and links to offering related to this product. If you require any other information, please contact us using form located at the bottom of the page.

Data Sheet
Downloads

3BSE006251R1

General Information

  • Product ID:
    3BSE006251R1
  • ABB Type Designation:
    AF100K03
  • Catalog Description:
    AF100K03 Connection Kit, single.
  • Long Description:

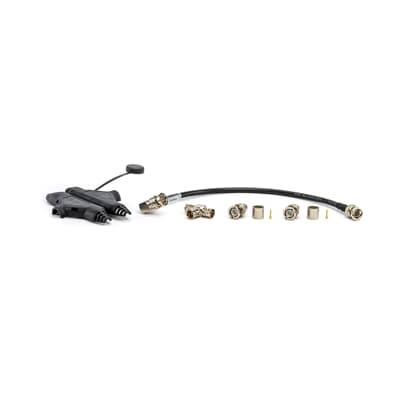

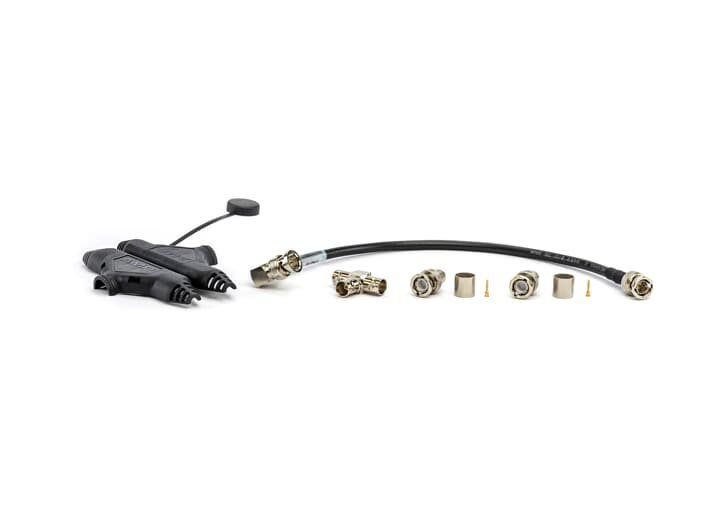

    Advant Fieldbus 100 Connection Kit including:
    1 pc TK516 Connection Cable with Contacts (3BSE000388R1)
    1 pc Coaxial Connector, BNC T-cross 75 Ohm (5217423-25)
    1 pc Plastic cover f BNC T- / In-line adapter (5217423-27)
    2 pcs RG11K01 Coax cable connector, 75 Ohm, BNC, male (5217423-28)
    2 pcs Marking Ring - Red (3BSC970001R1)
    2 pcs Marking Ring - Blue (3BSC970001R2)
    1 pc Antistatic bag 150x250 mm (29642013-2)
    1 pc Label (type design., article nr. & date (29401899-1)

    Note! This part is exempted from the scope of 2011/65/EU (RoHS)
    as provided in Article 2(4)(c), (e), (f) and (j) therein
    (ref.: 3BSE088609 – EU DECLARATION OF CONFORMITY
    - ABB Advant Master Process Control System)

Categories

Show All...

Kit Contents

Identifier Description Qty Unit Of Measure
3BSC970001R1
Marking Ring Red 2 piece
3BSC970001R2
Marking Ring Blue 2 piece
3BSE000388R1
TK516 Connection Cable with Contacts 1 piece
5217423-25
Coaxial Connector, BNC T-cross 75 Ohm 1 piece
5217423-27
Plastic cover f BNC T- / In-line adapter 1 piece
5217423-28
RG11K01 Coax cable connector, 75 Ohm, 2 piece

Additional Information

  • Medium Description:
    AF100K03 Connection Kit, single.
  • Product Type:
    Prefabricated_Cable
  • Technical Information:
    Advant Fieldbus 100 Connection Kit including:
    Including:
    1 pc TK516 Connection Cable with Contacts (3BSE000388R1)
    1 pc Coaxial Connector, BNC T-cross 75 Ohm (5217423-25)
    1 pc Plastic cover f BNC T- / In-line adapter (5217423-27)
    2 pcs RG11K01 Coax cable connector, 75 Ohm, BNC, male (5217423-28)
    2 pcs Marking Ring - Red (3BSC970001R1)
    2 pcs Marking Ring - Blue (3BSC970001R2)
    1 pc Antistatic bag 150x250 mm (29642013-2)
    1 pc Label (type design., article nr. & date (29401899-1)

Ordering

  • HS Code:
    853890-- Parts suitable for use solely or principally with the apparatus of heading 85.35, 85.36 or 85.37.- Other
  • Customs Tariff Number:
    85389091

Dimensions

  • Product Net Depth / Length:
    19 mm
  • Product Net Height:
    2 mm
  • Product Net Width:
    15 mm
  • Product Net Weight:
    0.11 kg
  • Cable Length:
    0 m

Environmental

  • RoHS Status:
    Following EU Directive 2011/65/EU
  • WEEE Category:
    Product Not in WEEE Scope
