Detailed information for: IRB 7600

This page contains technical data sheet, documents library and links to offering related to this product. If you require any other information, please contact us using form located at the bottom of the page.

Print...
Print to Pdf...

Data Sheet

Downloads

IRB 7600

General Information

Global Commercial Alias:

IRB 7600
Product ID:

3HAC020536-007
ABB Type Designation:

IRB 7600
Catalog Description:

IRB 7600
Long Description:

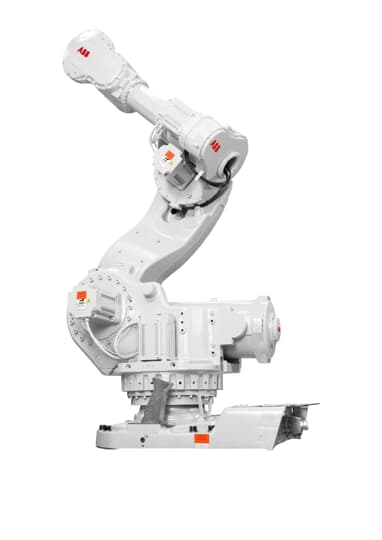

Articulated Robots model IRB 7600

Parts & Services

Identifier	Description	Qty	Unit Of Measure
21522012-430	O-ring	1	piece
3HAA1001-628	Sealing	1	piece
3HAB3701-45	Radial Seal w. dust lip	1	piece
3HAB3710-19	Groove ball bearing	1	piece
3HAB3772-140	O-ring	1	piece
3HAB3772-49	O-ring	1	piece
3HAB3772-50	O-ring	1	piece
3HAB3772-51	O-ring	1	piece
3HAB3772-83	O-ring	1	piece
3HAC021842-001	Arm Extender 956mm, Foundry	1	piece
3HAC021842-002	Arm Extender 956mm	1	piece
3HAC022620-001	Spacer ring	1	piece
3HAC023331-001	End Cover Gasket	1	piece
3HAC024594-001	Axis 6, insulated	1	piece
3HAC025819-001	Rot ac motor with pinion	1	piece
3HAC025819-003	Motor incl pinion	1	piece
3HAC029367-001	Shaft tap	1	piece
3HAC031580-001	Gearbox	1	piece
3HAC031580-004	RV 700F-269.21	1	piece
3HAC031580-006	Gearbox	1	piece
3HAC031851-001	SMB-unit DSQC633A	1	piece
3HAC033489-001	Gasket	1	piece
3HAC036644-002	Rot.ac motor	1	piece
3HAC036646-002	Rot.ac motor	1	piece
3HAC036646-003	Motor incl. pinion	1	piece
3HAC036770-001	Wrist Foundry Type 3	1	piece
3HAC036770-002	Wrist Type 3	1	piece
3HAC036811-003	Rot. ac motor	1	piece
3HAC036812-001	Wrist, Foundry Prime 2	1	piece
3HAC036943-003	Balancing device	1	piece
3HAC037194-001	RV 127F-97,90	1	piece
3HAC037371-003	Rot ac. motor	1	piece
3HAC037372-003	Rot ac. motor Foundry prime 2	1	piece
3HAC037638-002	RV 500C-219.95	1	piece
3HAC037638-004	RV 500C-219,95	1	piece
3HAC037638-005	RV 500C-219.95	1	piece
3HAC037639-001	RV 127F-178.41	1	piece
3HAC037639-002	RV 125F-178.41	1	piece
3HAC037778-001	RV 127F-97.909	1	piece
3HAC037778-002	RV 125F-97.909	1	piece
3HAC037778-003	RV 125F-97.909	1	piece
3HAC037778-004	RV 125F-97.909	1	piece
3HAC037820-001	RV 700F-269.21	1	piece
3HAC037820-002	Gearbox RV700F-269,21	1	piece
3HAC037820-003	RV 700F-269.21	1	piece
3HAC037925-001	Magnetic plug, G 1/4"	1	piece
3HAC038080-001	Turning disc	1	piece
3HAC038666-003	Arm extender	1	piece
3HAC038667-003	Arm extender 250mm, found 7600	1	piece
3HAC038667-004	Arm extender 250mm, 7600	1	piece
3HAC041189-001	Shaft sealing cover	1	piece
3HAC041193-001	Sealing cover	1	piece
3HAC043575-001	Hexagon head screw M8x190	1	piece
3HAC044075-001	Battery Unit	1	piece
3HAC044168-001	RMU101	1	piece
3HAC046277-001	Serial measurement unit	1	piece
3HAC046287-001	Cable Battery/SMB	1	piece
3HAC046520-001	Battery holder	1	piece
3HAC046686-002	SMB Replacement Set	1	piece
3HAC047177-001	Base plate	1	piece
3HAC048560-001	Gasket	1	piece
3HAC050032-002	Motor incl pinion	1	piece
3HAC050164-001	Motor incl pinion	1	piece
3HAC050216-001	Motor incl pinion	1	piece
3HAC050270-001	Axis 3-4	1	piece
3HAC050587-001	Balancing Device	1	piece
3HAC050651-001	Motor incl pinion	1	piece
3HAC050865-001	Cover SMB and BRU	1	piece
3HAC054431-001	Calibration sealing plug	1	piece
3HAC062338-003	Motor incl pinion	1	piece
3HAC062338-004	Motor incl pinion	1	piece
3HAC062339-003	Motor incl pinion	1	piece
3HAC062339-004	Motor incl pinion	1	piece
3HAC062339-005	Motor incl pinion	1	piece
3HAC062339-006	Motor incl pinion	1	piece
3HAC062340-003	Motor incl pinion	1	piece
3HAC062340-004	Motor incl pinion	1	piece
3HAC062341-003	Motor incl pinion	1	piece
3HAC062341-004	Motor incl pinion	1	piece
3HAC062341-005	Motor incl pinion	1	piece
3HAC062342-003	Motor incl pinion	1	piece
3HAC062342-004	Motor incl pinion	1	piece
3HAC062450-004	Cover	1	piece
3HAC062450-005	Cover	1	piece
3HAC062576-004	Wrist	1	piece
3HAC062576-005	Wrist	1	piece
3HAC062576-007	Wrist	1	piece
3HAC062576-008	Wrist	1	piece
3HAC063071-001	Gasket	1	piece
3HAC063553-002	Axis 3-4	1	piece
3HAC063553-003	Axis 3-4	1	piece
3HAC066785-001	RV 500C-219,95	1	piece
3HAC071306-001	Harness Upper arm MH6 Paramulti	1	piece
3HAC071306-002	Harness Upper arm MH6 Paramulti	1	piece
3HAC071309-001	Upper arm harness Paramulti	1	piece
3HAC071309-003	Upper arm harness Paramulti (Servogun)	1	piece
3HAC071309-004	Upper arm harness Paramulti (Servogun)	1	piece
3HAC071310-001	Lower arm harness Paramulti	1	piece
3HAC071310-002	Lower arm harness Paramulti (Servogun)	1	piece
3HAC10044-6	Base,machining	1	piece
3HAC10122-17	Pinion RV 125F-97,909	1	piece
3HAC10503-14	Support shaft inc bearing	1	piece
3HAC10503-15	Support Ring	1	piece
3HAC10503-8	Damper ax 5	1	piece
3HAC11350-1	Pinion RV500C and RV320C	1	piece
3HAC11409-3	Cover, left machining	1	piece
3HAC11409-9	Cover, right	1	piece
3HAC11423-3	Gasket cover axis 4	1	piece
3HAC11427-1	Shaft, Balancing device	1	piece
3HAC11440-1	Manipulator harness ax 5-6	1	piece
3HAC11471-1	Sync. Plate	1	piece
3HAC11750-1	Damper axis 3	1	piece
3HAC12311-10	Arm extension set 956mm	1	piece
3HAC12311-20	Arm extension set 250mm	1	piece
3HAC12311-30	Arm extension set 500mm	1	piece
3HAC12640-1	Cover ax 4 incl. sealing	1	piece
3HAC12782-1	Cable harness, man. ax1-4	1	piece
3HAC12812-2	Mech. stop ax. 1 assembly	1	piece
3HAC12989-1	Brake rel. unit, internal	1	piece
3HAC12990-1	Damper axis 2	1	piece
3HAC13063-6	Axis 3-4 Foundry	1	piece
3HAC13122-1	Bushing	1	piece
3HAC13123-1	Shaft	1	piece
3HAC13124-1	Thrust washer	1	piece
3HAC13151-1	Cable battery/SMB	1	piece
3HAC14207-2	Motor incl pinion	1	piece
3HAC14209-3	Motor incl pinion	1	piece
3HAC14210-2	Motor incl pinion	1	piece
3HAC14211-2	Rot ac motor with pinion	1	piece
3HAC14214-1	Balancing Device	1	piece
3HAC14219-1	Brake rel. circuit	1	piece
3HAC14453-1	Hose with flange	1	piece
3HAC14453-2	Plug	1	piece
3HAC14658-1	Syncplate with nonie ax 3	1	piece
3HAC14725-2	Rot ac motor with pinion	1	piece
3HAC14788-2	Gasket	1	piece
3HAC14788-3	Cover SMB and BRU	1	piece
3HAC14791-4	Cover battery box	1	piece
3HAC14793-1	Bracket	1	piece
3HAC14940-1	Manipulator harness ax 1-4	1	piece
3HAC15431-1	Cable protection	1	piece
3HAC15619-1	Cable FB7-SMB 1.7	1	piece
3HAC16628-3	Wrist, insulated	1	piece
3HAC16721-1	Magnetic plug	1	piece
3HAC16831-1	Battery pack	1	piece
3HAC17213-1	Sealing axis 2/3	1	piece
3HAC2744-1	Push button guard	1	piece
3HAC4310-1	Sealed spherical bearing	1	piece
3HAC4813-1	Push button cover	1	piece
3HAC7181-1	Locking liquid, 5 ml cont	1	piece
3HAC9953-1	Sync plate with scale	1	piece
9ADA315-7	Plain washer	1	piece
9ADJ400914P1053	Set screw with cup point M4X6	1	piece
E3HAC062338-004	Motor incl pinion	1	piece
E3HAC062339-004	Motor incl pinion	1	piece
E3HAC062341-004	Motor incl pinion	1	piece
E3HAC062342-004	Motor incl pinion	1	piece
3HAC062576-001	Wrist Tp.3 Foundry	1	piece
3HAC16314-1	Proc cable support axis 6	1	piece
9ABA107-59	Parallel pin	1	piece
E3HAC057543-004	Motor incl pinion	1	piece
3HAC072005-004	Cylinder	1	piece

Ordering

Country of Origin:

Sweden (SE)
China (CN)
Czech Republic (CZ)
Invoice Description:

IRB 7600
Minimum Order Quantity:

1 piece
Selling Unit of Measure:

piece
Quote Only:

No
Made To Order:

Yes
Stocked At (Warehouses):

Wr. Neudorf, Austria

Classifications

Customs Tariff Number:

84795000
WEEE Category:

4. Large Equipment (Any External Dimension More Than 50 cm)

Dimensions

Product Net Weight:

2600 kg
Gross Weight:

2600 kg
Product Net Height:

2224 mm

Additional Information

Frame Size:

Undefined
Product Name:

-
ABB Type Designation:

IRB 7600
Global Commercial Alias:

IRB 7600
