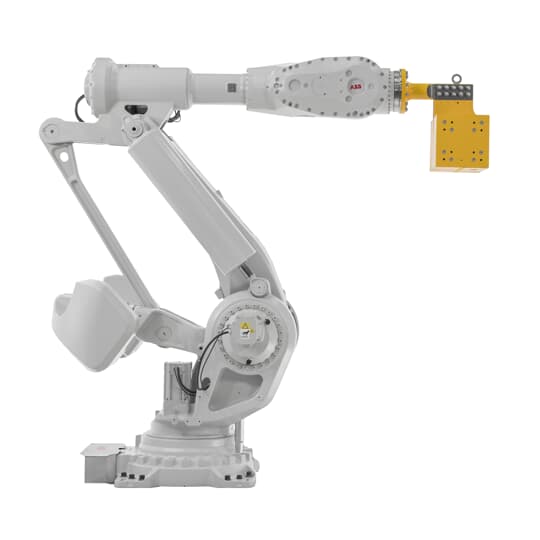

Detailed information for: IRB 8700

This page contains technical data sheet, documents library and links to offering related to this product. If you require any other information, please contact us using form located at the bottom of the page.

Print...
Print to Pdf...

Data Sheet

Downloads

IRB 8700

General Information

Global Commercial Alias:

IRB 8700
Product ID:

3HAC020536-024
ABB Type Designation:

IRB 8700
Catalog Description:

IRB 8700
Long Description:

Articulated Robots model IRB 8700

Parts & Services

Identifier	Description	Qty	Unit Of Measure
3HAB3772-177	O-ring	1	piece
3HAB3772-181	O-ring	1	piece
3HAC042173-004	Protection Hose	1	piece
3HAC042173-005	Protection Hose	1	piece
3HAC044076-001	Cover SMB	1	piece
3HAC047058-001	Mechanical stop axis 1	1	piece
3HAC047965-001	Cable to splitbox 7m	1	piece
3HAC048177-001	Cover	1	piece
3HAC048254-001	Motor flange	1	piece
3HAC048389-001	Gear wheel	1	piece
3HAC048440-001	Cover with gasket	1	piece
3HAC048657-001	Cover	1	piece
3HAC048835-001	Cover washer	1	piece
3HAC048836-001	Thrust washer	1	piece
3HAC049671-002	Splines pinion	1	piece
3HAC050460-002	Hose and cable retainer	1	piece
3HAC050601-001	Mechanical stop ax 5	1	piece
3HAC053237-001	Plug	1	piece
3HAC056252-001	Calibration cylindrical pin	1	piece
3HAC056253-001	Protection cap, 20 mm	1	piece
3HAC063056-001	Heat protection plate	1	piece
3HAC069154-009	Sleeve, KM-nut	1	piece
3HAC072148-001	Harness Lower arm MH6 Paramulti	1	piece
3HAC072149-001	Harness Lower arm SW6 Paramulti	1	piece
3HAC072149-002	Harness Lower arm SW6 Paramulti Servo	1	piece
3HAC072150-001	Harness Upper arm MH6 Paramulti	1	piece
3HAC072150-002	Harness Upper arm MH6 Paramulti	1	piece
3HAC072151-001	Harness Upper arm MH3 Paramulti	1	piece
3HAC072151-002	Harness Upper arm MH3 Paramulti	1	piece
3HAC072152-001	Harness Upper arm SW6 Paramulti	1	piece
3HAC072152-002	Harness Upper arm SW6 Paramulti	1	piece
3HAC072152-003	Harness Upper arm SW6 Paramulti Servo	1	piece
3HAC072152-004	Harness Upper arm SW6 Paramulti Servo	1	piece
3HAC072679-001	Cable protection leather	1	piece
3HAC072680-001	Cable protection leather	1	piece
3HAC072681-001	Cable protection leather	1	piece
3HAC072683-001	Cable protection leather	1	piece
3HAC072684-001	Cable protection leather sack	1	piece
3HAC072685-001	Cable protection leather sack	1	piece
3HAC072686-001	Cable protection leather	1	piece
3HAC077677-001	Hose protection	1	piece
3HAC16845-5	Hose Water and Air-unit	1	piece
3HAA1001-628	Sealing	1	piece
3HAB3772-107	O-ring	1	piece
3HAB3772-110	O-ring	1	piece
3HAC025117-003	Proc. cable stat gun 22m	1	piece
3HAC026607-004	Cover with gasket	1	piece
3HAC029299-004	Connection box FS 180	1	piece
3HAC029303-004	Cover Box FS180	1	piece
3HAC038295-003	Lifting eye M24	1	piece
3HAC043073-003	Reduction Gear RV-500N-236.36	1	piece
3HAC043343-002	Connection box	1	piece
3HAC043904-001	DSQC 633C Measurement Unit	1	piece
3HAC044073-001	SMB bracket	1	piece
3HAC044074-001	Gasket SMB-cover	1	piece
3HAC044075-001	Battery Unit	1	piece
3HAC044076-003	Cover SMB	1	piece
3HAC044161-001	Battery holder	1	piece
3HAC044200-001	Rubber cloth	1	piece
3HAC044205-001	Cover battery box	1	piece
3HAC046287-001	Cable Battery/SMB	1	piece
3HAC048069-003	Cross roller bearing	1	piece
3HAC048069-004	Cross roller bearing	1	piece
3HAC048072-006	Base	1	piece
3HAC048072-007	Base	1	piece
3HAC048077-003	Parallel bar	1	piece
3HAC048077-004	Parallel bar	1	piece
3HAC048079-003	Upper arm excl. wrist	1	piece
3HAC048079-004	Upper arm excl. wrist	1	piece
3HAC048079-006	Upper arm excl. wrist	1	piece
3HAC048081-005	Lower arm	1	piece
3HAC048081-006	Lower arm	1	piece
3HAC048171-004	Arm extender	1	piece
3HAC048171-005	Arm extender	1	piece
3HAC048171-007	Arm extender set	1	piece
3HAC048171-008	Arm extender set	1	piece
3HAC048177-006	Cover	1	piece
3HAC048177-007	Cover	1	piece
3HAC048180-001	Mechanical stop	1	piece
3HAC048239-003	Balancing device	1	piece
3HAC048239-004	Balancing device	1	piece
3HAC048239-006	Balancing device material set	1	piece
3HAC048254-006	Motor flange	1	piece
3HAC048254-007	Motor flange	1	piece
3HAC048392-003	Reduction gear	1	piece
3HAC048393-003	Rot. AC motor incl. Pinion	1	piece
3HAC048393-004	Rot. AC motor incl. Pinion	1	piece
3HAC048445-003	Turning disc	1	piece
3HAC048537-005	Frame	1	piece
3HAC048537-006	Frame	1	piece
3HAC048651-003	Axis 6	1	piece
3HAC048651-004	Axis 6	1	piece
3HAC048651-006	Axis 6	1	piece
3HAC048653-003	Wrist	1	piece
3HAC048653-004	Wrist	1	piece
3HAC048653-006	Wrist	1	piece
3HAC048657-004	Cover	1	piece
3HAC048657-005	Cover	1	piece
3HAC048963-002	Reduction gear	1	piece
3HAC049074-003	Parallel arm asm	1	piece
3HAC049074-004	Parallel arm asm	1	piece
3HAC049785-001	Bracket BR unit	1	piece
3HAC049795-003	Hub with pinion	1	piece
3HAC049837-002	Rot. AC motor incl. Pinion	1	piece
3HAC049837-003	Rot. AC motor incl. Pinion	1	piece
3HAC049875-003	Rot. AC motor incl. p.	1	piece
3HAC049875-004	Rot. AC motor incl. p.	1	piece
3HAC049906-003	Hub with pinion	1	piece
3HAC050792-001	Manipulator harness, axis 1-6	1	piece
3HAC050831-001	Connectionplate base	1	piece
3HAC051003-005	Process turning disc	1	piece
3HAC051022-003	Hub with pinion	1	piece
3HAC051221-002	Cover with sealing	1	piece
3HAC051221-003	Cover with sealing	1	piece
3HAC052423-001	Sealing ring, RV 900N	1	piece
3HAC052423-002	Sealing ring, RV 500N	1	piece
3HAC052425-001	Harness Lower arm MH6 Paracom	1	piece
3HAC052426-001	Harness Lower arm MH6 Parabus	1	piece
3HAC052427-001	Harness Lower arm MH6 Paramulti	1	piece
3HAC053662-003	Fork lift accessory set	1	piece
3HAC053706-003	Movable mech stop set, ax 1	1	piece
3HAC053722-003	Base plate	1	piece
3HAC054634-001	Harness Upper arm MH6 Paracom	1	piece
3HAC054634-003	Harness Upper arm MH6 Paracom	1	piece
3HAC054635-001	Harness Upper arm MH6 Parabus	1	piece
3HAC054635-002	Harness Upper arm MH6 Parabus	1	piece
3HAC054636-001	Harness Upper arm MH6 Paramulti	1	piece
3HAC054636-002	Harness Upper arm MH6 Paramulti	1	piece
3HAC054648-001	CPS, ax 3-6	1	piece
3HAC054650-001	CBUS, ax 3-6	1	piece
3HAC054654-001	Ethernet cable, Upper arm	1	piece
3HAC054692-002	O-ring (rectangular section)	1	piece
3HAC054801-001	CPS, ax 3-6	1	piece
3HAC054802-001	CBUS, ax 3-6	1	piece
3HAC054803-001	Ethernet cable, Upper arm	1	piece
3HAC055113-001	Harness Lower arm SW6 Paracom	1	piece
3HAC055113-002	Harness Lower arm SW6 Paracom Servo	1	piece
3HAC055114-001	Harness Lower arm SW6 Parabus	1	piece
3HAC055114-002	Harness Lower arm SW6 Parabus Servo	1	piece
3HAC055115-001	Harness Lower arm SW6 Paramulti	1	piece
3HAC055115-002	Harness Lower arm SW6 Paramulti Servo	1	piece
3HAC055412-001	Calibration toolbox	1	piece
3HAC055584-001	Harness Upper arm SW6 Paracom	1	piece
3HAC055584-002	Harness Upper arm SW6 Paracom	1	piece
3HAC055584-004	Harness Upper arm SW6 Paracom Servo	1	piece
3HAC055584-006	Harness Upper arm SW6 Paracom Servo	1	piece
3HAC055585-001	Harness Upper arm SW6 Parabus	1	piece
3HAC055585-002	Harness Upper arm SW6 Parabus	1	piece
3HAC055585-003	Harness Upper arm SW6 Parabus Servo	1	piece
3HAC055585-004	Harness Upper arm SW6 Parabus Servo	1	piece
3HAC055586-001	Harness Upper arm SW6 Paramulti	1	piece
3HAC055586-002	Harness Upper arm SW6 Paramulti	1	piece
3HAC055586-003	Harness Upper arm SW6 Paramulti Servo	1	piece
3HAC055586-004	Harness Upper arm SW6 Paramulti Servo	1	piece
3HAC055588-001	Harness Upper arm MH3 Paracom	1	piece
3HAC055588-002	Harness Upper arm MH3 Paracom	1	piece
3HAC055589-001	Harness Upper arm MH3 Parabus	1	piece
3HAC055589-002	Harness Upper arm MH3 Parabus	1	piece
3HAC055590-001	Harness Upper arm MH3 Paramulti	1	piece
3HAC055590-002	Harness Upper arm MH3 Paramulti	1	piece
3HAC055618-001	FB, ax 3-6	1	piece
3HAC055619-001	FB, ax 3-6	1	piece
3HAC055620-001	SP, ax 3-6	1	piece
3HAC055621-001	SP, ax 3-6	1	piece
3HAC056806-001	Calibration protection set	1	piece
3HAC058949-003	Rot. AC motor incl. Pinion	1	piece
3HAC058950-003	Rot. AC motor incl. Pinion	1	piece
3HAC058951-003	Rot. AC motor incl. p.	1	piece
3HAC059160-001	BU adapter set BRK001	1	piece
3HAC060788-001	Bracket	1	piece
3HAC060789-001	Fan unit set IRB 8700	1	piece
3HAC060886-001	Double fans unit set IRB 8700	1	piece
3HAC061213-001	Supporting pillar for IRB8700	1	piece
3HAC063069-001	Grease	1	piece
3HAC12441-3	Spherical roller bearing	1	piece
3HAC12441-4	Spherical roller bearing	1	piece
3HAC049735-003	Support shaft incl. bearing	1	piece
3HAC054404-001	Lifting accessory for gearbox a. 2-3	1	piece
3HAC059801-001	Mounting set gear axis 2-3	1	piece
3HAC062636-002	Cross roller bearing	1	piece
3HAC062636-003	Cross roller bearing	1	piece
3HAA2103-30	Taper roller bearing	1	piece
3HAC043263-001	Attachment plate WA unit, right	1	piece
3HAC043264-001	Attachment plate WA unit, left	1	piece
3HAC043265-002	Frame WA unit	1	piece
3HAC048467-001	Shaft	1	piece
3HAC048724-001	Lock nut	1	piece
3HAC054236-001	Lifting accessory for bal.cyl IRB 8700	1	piece
3HAC067294-002	Cross roller bearing	1	piece
3HAC067294-003	Cross roller bearing	1	piece
3HAC069154-017	Hydralic cylinder	1	piece
3HAC048722-001	Sealing ring	1	piece
3HAC048723-001	Gamma sealing	1	piece
3HAC057130-015	Upper tool mount bal.device IRB8700	1	piece
3HAC057130-016	Lower tool mount bal.device IRB8700	1	piece
3HAC060622-001	Lifting accessory shaft IRB8700	1	piece
3HAC069154-001	IRB8700 Support shaft Ax 3 Dis/Mount	1	piece
3HAC071313-001	Female Sleeve for KM10	1	piece
3HAC071352-001	Balancing device tools IRB700	1	piece
3HAC071353-001	Parallell bar tool IRB8700	1	piece
3HAC071354-001	P-stay shaft tools IRB8700	1	piece
3HAC071355-001	Hub Tool	1	piece
3HAC071377-001	Cylinder	1	piece
3HAC071378-001	Cylinder CHF51512 assy	1	piece
3HAC058402-001	Grease tool for bearing	1	piece
3HAC073286-001	Grease	1	piece
3HAC074119-001	Calibration toolbox	1	piece
3HAC063459-001	Plate, customer	1	piece

Ordering

Country of Origin:

Sweden (SE)
China (CN)
United States (US)
Czech Republic (CZ)
Invoice Description:

IRB 8700
Minimum Order Quantity:

1 piece
Selling Unit of Measure:

piece
Order Multiple:

1 piece
Quote Only:

No
Made To Order:

Yes

Classifications

Customs Tariff Number:

84795000
WEEE Category:

4. Large Equipment (Any External Dimension More Than 50 cm)

Dimensions

Product Net Weight:

4725 kg
Gross Weight:

4725 kg
Product Net Height:

3106 mm

Additional Information

Frame Size:

Undefined
Product Name:

-
ABB Type Designation:

IRB 8700
Global Commercial Alias:

IRB 8700

Select region / language

Europe
Americas
Middle East and Africa
Asia and Oceania

Austria - German
Belgium - Dutch | French
Bulgaria - Bulgarian
Croatia - Croatian
Czech Republic - Czech
Denmark - Danish
Estonia - Estonian
Finland - Finnish
France - French
Germany - German
Greece - Greek
Hungary - Hungarian
Ireland - English
Italy - Italian
Latvia - Latvian
Lithuania - Lithuanian
Luxembourg - French
Netherlands - Dutch
Norway - Norwegian
Poland - Polish
Portugal - Portuguese
Romania - Romanian
Russia - Russian
Serbia - Serbian
Slovakia - Slovakian
Slovenia - Slovenian
Spain - Spanish
Sweden - Swedish
Switzerland - French | German | Italian
Turkiye - Turkish
United Kingdom - English

Argentina - Spanish
Aruba - Spanish
Bolivia - Spanish
Brazil - Portuguese
Canada - English | French
Chile - Spanish
Colombia - Spanish
Costa Rica - Spanish
Dominican Republic - Spanish
Ecuador - Spanish
El Salvador - Spanish
Guatemala - Spanish
Honduras - Spanish
Mexico - Spanish
Panama - Spanish
Peru - Spanish
Puerto Rico - Spanish
United States of America - English
Uruguay - Spanish

Algeria - English | French
Angola - English | French
Bahrain - English | French
Botswana - English | French
Cameroon - English | French
Côte d'Ivoire - English | French
Egypt - English | French
Ghana - English | French
Israel - Hebrew
Jordan - English
Kenya - English | French
Kuwait - English
Lebanon - English
Madagascar - English | French
Mali - English | French
Mauritius - English | French
Morocco - English | French
Namibia - English | French
Nigeria - English | French
Oman - English
Pakistan - English
Palestine - English
Qatar - English
Saudi Arabia - English
Senegal - English | French
South Africa - English
Tanzania - English | French
Tunisia - English | French
Uganda - English | French
United Arab Emirates - English
Zambia - English | French
Zimbabwe - English | French

Australia - English
Bangladesh - English
China - Chinese | English
India - English
Indonesia - English
Japan - Japanese
Kazakhstan - Russian
Malaysia - English
Mongolia - Mongolian | English
New Zealand - English
Philippines - English
Singapore - English
South Korea - Korean
Sri Lanka - English
Taiwan (Chinese Taipei) - Chinese - Traditional
Thailand - English
Vietnam - English

abb.com privacy settings

Our website uses cookies which are necessary for running the website and for providing the services you request. We would also like to set the following optional cookies on your device. You can change these settings any time later by clicking "Change cookie settings" at the bottom of any page. For more information, please read our privacy notice.

Analytics

We collect statistics to understand how many visitors we have, how our visitors interact with the site and how we can improve it. The collected data does not directly identify anyone.

Preferences

We store choices you have made so that they are remembered across visits in order to provide you a more personalized experience.

Advertising and tracking

Your browsing behavior is tracked across websites by advertising and social network service providers. You may see tailored advertising and content on other websites based on your browsing profile.

Show details

Hide details
