Detailed information for: 3HAC021593-001

This page contains technical data sheet, documents library and links to offering related to this product. If you require any other information, please contact us using form located at the bottom of the page.

Print...
Print to Pdf...
Data Sheet
Downloads

3HAC021593-001

General Information

  • Product ID:
    3HAC021593-001
  • ABB Type Designation:
    -
  • Catalog Description:
    Maintenance set for balancing device

Categories

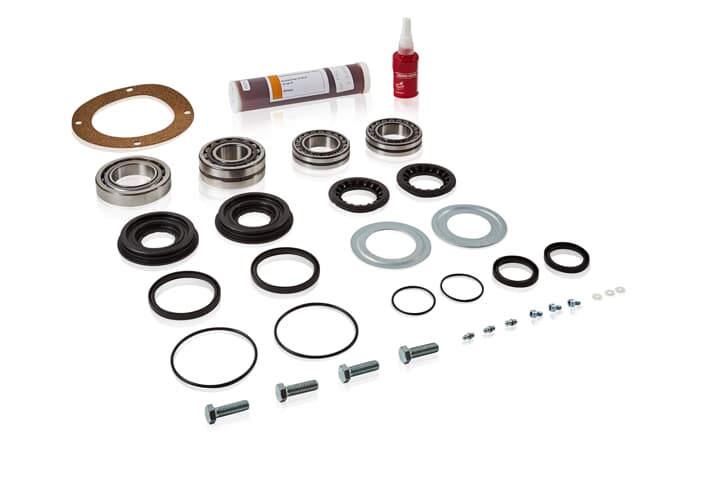

  • 3HAC021593-001 - image 0
  • 3HAC021593-001 - image 1
+
–

Where Used (as a spare part for "Products")

Identifier Qty Unit Of Measure
IRB 6600_6650 Type A M2004 1 piece
IRB 6600_6650 Type A M2004 Foundry Prime 1 piece
IRB 6600_6650 Type B M2004 1 piece
IRB 6600_6650 Type B M2004 Foundry Prime 1 piece
+
–

Kit Contents

widgets-productinfo-other-info-label
Identifier Description Qty Unit Of Measure
21520431-23
 O-ring 2 piece
25452021-21
 Lubricating nipple 3 piece
3HAA2167-18
 Spherical roller bearing 1 piece
3HAA2167-19
 Spherical roller bearing 2 piece
3HAB3702-29
 Radial Sealing 2 piece
3HAB3729-18
 Ang. cont. ball bearing 1 piece
3HAB3772-75
 O-ring 2 piece
3HAC020537-001
 Washer 3 piece
3HAC042534-001
 Grease 1 piece
3HAC042581-001
 Flange sealing 1 piece
3HAC11581-5
 Sealing ring (Radial) 2 piece
3HAC12649-1
 Sealing spacer 2 piece
3HAC17085-1
 Spacer Ring 2 piece
3HAC17142-1
 Nilos Sealing Ring 1 piece
3HAC17176-1
 Nilos Sealing Ring 1 piece
3HAC17188-1
 End Cover Gasket 1 piece
9ADA120-61
 Hexagon head screw 4 piece
9ADA183-22
 Hex socket head cap screw M6 x 10 ZP 3 piece

Technical

Ordering

  • Country of Origin:
    Sweden (SE)
  • Invoice Description:
    Maintenance set for balancing device
  • Minimum Order Quantity:
    1 piece
  • Selling Unit of Measure:
    piece
  • Order Multiple:
    1 piece
  • Quote Only:
    No
  • Made To Order:
    No
  • Stocked At (Warehouses):
    Menden, Germany
    Shanghai, China

Classifications

  • Customs Tariff Number:
    85389099
  • Part Type:
    New
  • WEEE Category:
    Product Not in WEEE Scope

Dimensions

  • Product Net Weight:
    5.941 kg
  • Gross Weight:
    5.941 kg

Additional Information

  • Frame Size:
    Spare_Parts
  • Product Name:
    Maintenance set for balancing devic
