Detailed information for: 3HAC024385-001

This page contains technical data sheet, documents library and links to offering related to this product. If you require any other information, please contact us using form located at the bottom of the page.

Print...
Print to Pdf...
Data Sheet
Downloads

3HAC024385-001

General Information

  • Product ID:
    3HAC024385-001
  • ABB Type Designation:
    54x37x18,5
  • Catalog Description:
    Manipulator harness ax 1-6

Categories

Show All...

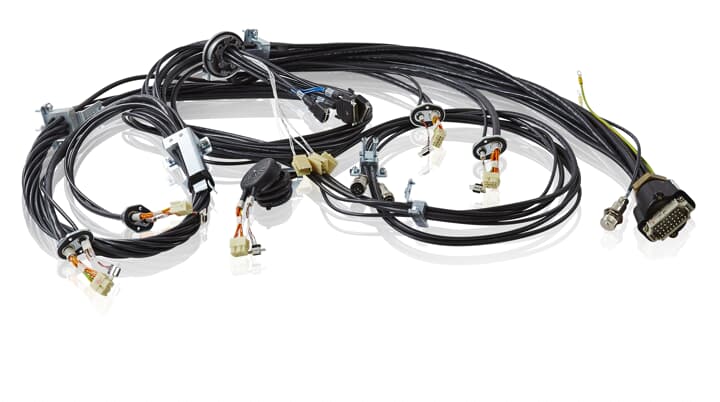

  • 3HAC024385-001 - image 0

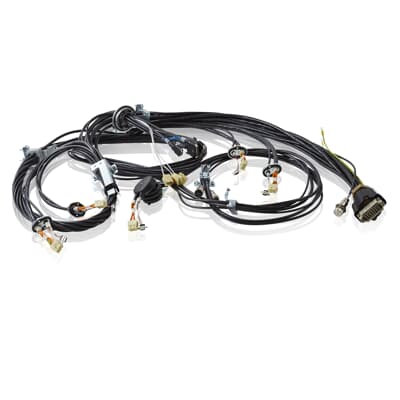

  • 3HAC024385-001 - image 1
+
–

Where Used (as a spare part for "Products")

Identifier Qty Unit Of Measure
IRB 6600_6650 Type A M2004 1 piece
IRB 6600_6650 Type A M2004 Foundry Prime 1 piece
IRB 6600_6650 Type B M2004 1 piece
IRB 6600_6650 Type B M2004 Foundry Prime 1 piece
3HAC020536-006
 1 piece
3HAC020536-012
 1 piece
+
–

Where Used (as part of "kit")

Identifier Description Type
3HAC033387-001
 Harness axis 1-6 Kit

Technical

  • Technical Information:
    Part is valid for IRB6640 180/2.55, 235/2.55 and 185/2.8
    For IRB6600 175/2.55, 225/2.55 and 175/2.8 order 3HAC033387-001


    For foundry prime use 3HAC069663-001

Ordering

  • Country of Origin:
    Czech Republic (CZ)
  • Invoice Description:
    Manipulator harness ax 1-6
  • Minimum Order Quantity:
    1 piece
  • Selling Unit of Measure:
    piece
  • Order Multiple:
    1 piece
  • Quote Only:
    No
  • Made To Order:
    No
  • Stocked At (Warehouses):
    Menden, Germany
    Shanghai, China

Classifications

  • Customs Tariff Number:
    85444290
  • Part Type:
    New
  • WEEE Category:
    Product Not in WEEE Scope

Dimensions

  • Product Net Weight:
    11.64 kg
  • Gross Weight:
    11.88 kg

Additional Information

  • Frame Size:
    Spare_Parts
  • Product Name:
    Manipulator harness ax 1-6
  • ABB Type Designation:
    54x37x18,5
