Detailed information for: 3HAC033411-001

This page contains technical data sheet, documents library and links to offering related to this product. If you require any other information, please contact us using form located at the bottom of the page.

Print...
Print to Pdf...
Data Sheet
Downloads

3HAC033411-001

General Information

  • Product ID:
    3HAC033411-001
  • ABB Type Designation:
    -
  • Catalog Description:
    Maintenance Kit, Shaft

Categories

  • 3HAC033411-001 - image 0
+
–

Where Used (as a spare part for "Products")

Identifier Description Qty Unit Of Measure
3HAC020536-012
 IRB 6640 1 piece
+
–

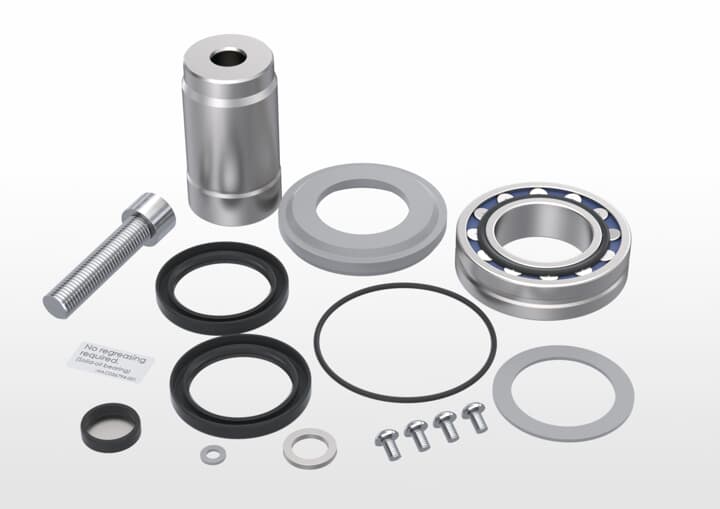

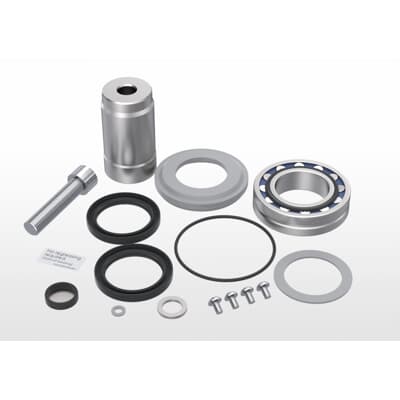

Kit Contents

Note
Identifier Description Qty Unit Of Measure
3HAA1001-186
 Washer 1 piece
3HAA2166-12
 VK-Cover 1 piece
3HAA2167-23
 Spherical roller bearing 1 piece
3HAB3409-88
 Hex socket head cap screw M16 x 70 1 piece
3HAB3701-35
 Radial seal w dustlipp 50x68x8 2 piece
3HAB3772-121
 O-ring 1 piece
3HAC020537-001
 Washer 1 piece
3HAC031955-001
 End cover 1 piece
3HAC031964-001
 Washer 1 piece
3HAC037918-001
 Shaft end, non-corrosive 1 piece
3HAC042534-001
 Grease 1 piece
3HAC056794-001
 Label 1 piece
9ADA618-54
 Torx pan head screw 4 piece

Ordering

  • Country of Origin:
    Sweden (SE)
  • Invoice Description:
    Maintenance Kit, Shaft
  • Minimum Order Quantity:
    1 piece
  • Selling Unit of Measure:
    piece
  • Order Multiple:
    1 piece
  • Quote Only:
    No
  • Made To Order:
    No
  • Stocked At (Warehouses):
    Menden, Germany
    Shanghai, China

Classifications

  • Customs Tariff Number:
    85389099
  • Part Type:
    New
  • WEEE Category:
    Product Not in WEEE Scope

Dimensions

  • Product Net Weight:
    4.252 kg
  • Gross Weight:
    4.252 kg

Additional Information

  • Frame Size:
    Spare_Parts
  • Product Name:
    Maintenance Kit, Shaft
  • ABB Type Designation:
    -
