Detailed information for: TY523M-NDT

This page contains technical data sheet, documents library and links to offering related to this product. If you require any other information, please contact us using form located at the bottom of the page.

Print...
Print to Pdf...
Data Sheet
Downloads

TY523M-NDT

General Information

  • Extended Product Type:
    TY523M-NDT
  • Product ID:
    7TAG009660R0029
  • EAN:
    5414363176077
  • Catalog Description:

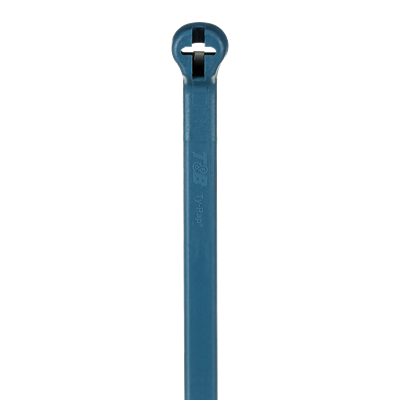

    CABLE TIE 18LB 4IN BLUE NYL DETECT
  • Long Description:
    Detectable Cable Tie, Bright Blue Polyamide (Nylon 6.6) for Temperatures up to 85 Degrees Celsius (185 F) for Indoor Applications, Length of 92mm (3.6 Inches), Width of 2.3mm (0.09 Inch), Thickness of 0.9mm (0.035 Inch), Maximum Bundle Diameter 16mm (0.63 Inch), Tensile Strength Rating of 80 Newtons (18 Pounds)

Ordering

  • E-Number (Finland):
    1381512
  • EAN:
    5414363176077

Dimensions

  • Product Net Width:
    0.092 in
    2.34 mm
  • Product Net Depth / Length:
    3.437 in
    87.3 mm

Container Information

  • Package Level 1 Units:
    100 piece
  • Package Level 1 Width:
    1 in
    25 mm
  • Package Level 1 Height:
    9.25 in
    235 mm
  • Package Level 1 Depth / Length:
    4 in
    102 mm
  • Package Level 2 Units:
    1000 piece
  • Package Level 2 Width:
    10.75 in
    273 mm
  • Package Level 2 Height:
    10.75 in
    273 mm
  • Package Level 2 Depth / Length:
    12.75 in
    324 mm
  • Package Level 3 Units:
    10000 piece
  • Package Level 3 Width:
    10.25 in
    260 mm
  • Package Level 3 Height:
    10.5 in
    267 mm
  • Package Level 3 Depth / Length:
    12.75 in
    324 mm

Additional Information

  • Brand / Label:
    Ty-Rap
  • Bundle Diameter:
    0.08 to 0.63 in
    2 to 16 mm
  • Color:
    Blue
  • Effective Date:
    20060607
  • Lock Type:
    Stainless Steel Barb
  • Material:
    Nylon/Polyamide 6.6
  • Number of Batteries:
    0
  • Product Name:
    PLASTIC CABLE TIE
  • Product Type:
    Detectable
  • Special Functions:
    Detectable by metal detectors, X-ray equipment, or visual detection.
  • Tensile Strength:
    11 lb
    80 N
  • Thickness:
    0.035 in
    0.9 mm
  • UPC:
    786210995311

Certificates and Declarations (Document Number)

Classifications

  • ETIM 6:
    EC000046 - Cable tie
  • ETIM 7:
    EC000046 - Cable tie
  • UNSPSC:
    39121703
  • WEEE Category:
    Product Not in WEEE Scope
  • IDEA Granular Category Code (IGCC):
    5034 >> Cable ties
