Detailed information for: TY527M-NDT

This page contains technical data sheet, documents library and links to offering related to this product. If you require any other information, please contact us using form located at the bottom of the page.

Print...
Print to Pdf...
Data Sheet
Downloads

TY527M-NDT

General Information

  • Extended Product Type:
    TY527M-NDT
  • Product ID:
    7TAG009660R0034
  • EAN:
    5414363176169
  • Catalog Description:
    CABLE TIE 120LB 13IN BLU NYL DETECT
  • Long Description:

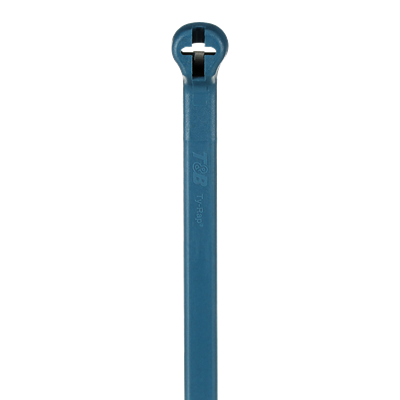

    Detectable Cable Tie, Bright Blue Polyamide (Nylon 6.6) for Temperatures up to 85 Degrees Celsius (185 F) for Indoor Applications, Length of 343mm (13.5 Inches), Width of 6.9mm (0.27 Inches), Thickness of 1.5mm (0.06 Inches), Tensile Strength Rating of 534 Newtons (120 Pounds)

Ordering

  • E-Number (Finland):
    1381535
  • EAN:
    5414363176169

Dimensions

  • Product Net Width:
    0.27 in
    6.86 mm
  • Product Net Depth / Length:
    13.172 in
    334.57 mm

Container Information

  • Package Level 1 Units:
    50 piece
  • Package Level 1 Width:
    2 in
    51 mm
  • Package Level 1 Height:
    20.25 in
    514 mm
  • Package Level 1 Depth / Length:
    5 in
    127 mm
  • Package Level 2 Units:
    500 piece
  • Package Level 2 Width:
    7.25 in
    184 mm
  • Package Level 2 Height:
    7.5 in
    191 mm
  • Package Level 2 Depth / Length:
    15.25 in
    387 mm

Additional Information

  • Brand / Label:
    Ty-Rap
  • Bundle Diameter:
    0.50 to 3.74 in
    12.7 to 65 mm
  • Color:
    Blue
  • Effective Date:
    20060605
  • Lock Type:
    Stainless Steel Barb
  • Material:
    Nylon/Polyamide 6.6
  • Number of Batteries:
    0
  • Product Name:
    PLASTIC CABLE TIE
  • Product Type:
    Detectable
  • Special Functions:
    Detectable by metal detectors, X-ray equipment, or visual detection.
  • Tensile Strength:
    120 lb
    534 N
  • Thickness:
    0.06 in
    1.5 mm
  • UPC:
    786210995373

Certificates and Declarations (Document Number)

Classifications

  • ETIM 6:
    EC000046 - Cable tie
  • ETIM 7:
    EC000046 - Cable tie
  • UNSPSC:
    39121703
  • WEEE Category:
    Product Not in WEEE Scope
  • IDEA Granular Category Code (IGCC):
    5034 >> Cable ties
