Detailed information for: TY528M-NDT

This page contains technical data sheet, documents library and links to offering related to this product. If you require any other information, please contact us using form located at the bottom of the page.

Print...
Print to Pdf...
Data Sheet
Downloads

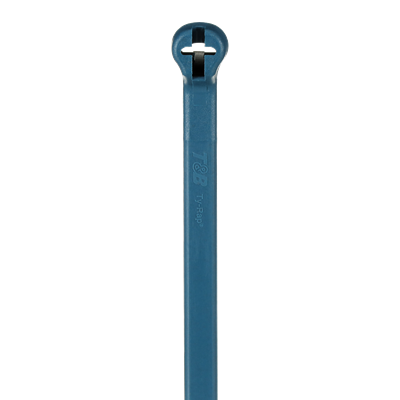

TY528M-NDT

General Information

  • Extended Product Type:
    TY528M-NDT
  • Product ID:
    7TAG009660R0036
  • EAN:
    5414363176121
  • Catalog Description:
    CABLE TIE 50LB 14IN BLUE NYL DETECT
  • Long Description:
    Detectable Cable Tie, Bright Blue Polyamide (Nylon 6.6) for Temperatures up to 85 Degrees Celsius (185 F) for Indoor Applications, Length of 361mm (14.2 Inches), Width of 4.67mm (0.184 Inches), Thickness of 1.19mm (0.047 Inches), Tensile Strength Rating of 222 Newtons (50 Pounds)

Ordering

  • E-Number (Finland):
    1381524
  • EAN:
    5414363176121

Dimensions

  • Product Net Width:
    0.184 in
    4.67 mm
  • Product Net Depth / Length:
    13.921 in
    353.6 mm

Container Information

  • Package Level 1 Units:
    100 piece
  • Package Level 1 Width:
    1 in
    25 mm
  • Package Level 1 Height:
    20.25 in
    514 mm
  • Package Level 1 Depth / Length:
    5 in
    127 mm
  • Package Level 2 Units:
    500 piece
  • Package Level 2 Width:
    5.1 in
    130 mm
  • Package Level 2 Height:
    5.4 in
    137 mm
  • Package Level 2 Depth / Length:
    15.3 in
    389 mm

Additional Information

  • Brand / Label:
    Ty-Rap
  • Bundle Diameter:
    0.48 to 4.01 in
    12.29 to 102 mm
  • Color:
    Blue
  • Effective Date:
    20060605
  • Lock Type:
    Stainless Steel Barb
  • Material:
    Nylon/Polyamide 6.6
  • Number of Batteries:
    0
  • Product Name:
    PLASTIC CABLE TIE
  • Product Type:
    Detectable
  • Special Functions:
    Detectable by metal detectors, X-ray equipment, or visual detection.
  • Tensile Strength:
    50 lb
    222 N
  • Thickness:
    0.047 in
    1.2 mm
  • UPC:
    786210995359

Certificates and Declarations (Document Number)

Classifications

  • ETIM 6:
    EC000046 - Cable tie
  • ETIM 7:
    EC000046 - Cable tie
  • UNSPSC:
    39121703
  • WEEE Category:
    Product Not in WEEE Scope
  • IDEA Granular Category Code (IGCC):
    5034 >> Cable ties
