IS2-ER8050K

General Information

  • Extended Product Type:
    IS2-ER8050K
  • Product ID:
    ER8050K
  • EAN:
    8015646746221
  • Catalog Description:
    IS2-ER8050K Control and Automation Board
  • Long Description:

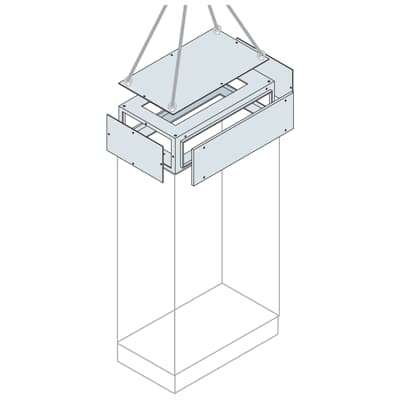

    Top container for cable connection 800x500mm (WxD)

Technical

  • Standards:
    See code for structure
  • Sub-Function 3:
    Cable trough
  • Suitable For:
    IS2 Enclosures for Automation
  • Suitable for Product Class:
    Control and Automation Board
  • Accessory Type:
    10. Cable container
  • Product Type:
    5B5B30B392
  • Surface Finishing:
    Orange Peel, RAL 7035
  • Material:
    Pickled steel sheet
  • Options Provided:
    2. Top container for cable connetion
  • Remarks:
    ETIM

Material Compliance

  • RoHS Information:
    1STC860065
  • RoHS Date:
    20140108

Environmental

Dimensions

  • Product Net Width:
    505 mm
  • Product Net Height:
    800 mm
  • Product Net Depth / Length:
    0.500 mm
  • Product Net Weight:
    23.250 kg

Ordering

  • Package Level 1 Units:
    1 piece
  • Package Level 1 Gross Weight:
    23.730 kg

Certificates and Declarations

Installation

Popular Downloads

Classifications

  • ETIM 8:
    EC002620 - Components for installation (enclosure/cabinet)
  • WEEE Category:
    4. Large Equipment (Any External Dimension More Than 50 cm)
  • WEEE B2C / B2B:
    Business To Business
  • CN8:
    85381000
  • eClass:
    V11.1 : 27182811
  • Object Classification Code:
    U
