AA/S 4.1.2

General Information

  • Extended Product Type:
    AA/S 4.1.2
  • Product ID:
    2CDG110202R0011
  • EAN:
    4016779962377
  • Catalog Description:
    AA/S4.1.2 Analogue Actuator, 4-fold, MDRC
  • Long Description:
    The Analogue Actuator converts KNX telegrams in voltage (0...10V) or current (0…24mA) signals. These analogue output signals are used to influence regulatory processes. For example, devices for heating, air conditioning or ventilation applications can be adjusted in their operation depending on the information, which are transmitted via the bus system. This Analogue Actuator is a 4-fold DIN rail device. The ABB i-bus Tool is supported for advanced diagnosis and improved commissioning.

Categories

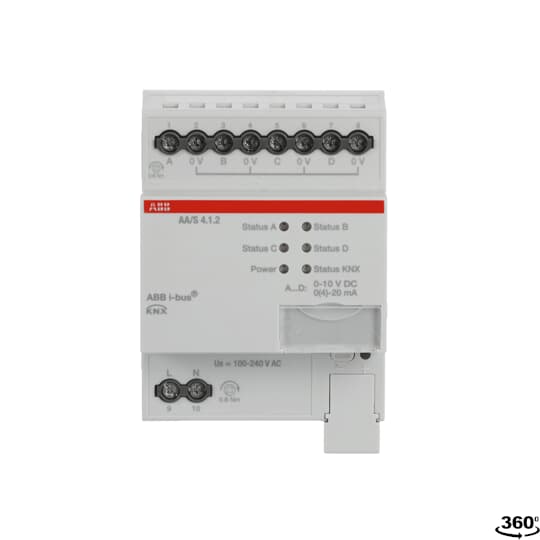

  • AA/S 4.1.2 - image 0
  • AA/S 4.1.2 - image 1
  • AA/S 4.1.2 - image 2
  • AA/S 4.1.2 - image 3

Installation

Technical

  • Data Sheet, Technical Information:
    2CDC505168D0201
  • Voltage Range:
    0 ... 10 V DC
  • Auxiliary Voltage AC/DC:
    110 ... 240 V AC
  • Output Voltage (Uout):
    0 ... 10 V DC
  • Maximum Switching Current:
    0.02 A
  • Power Loss:
    0.8 W
  • Number of Outputs:
    4
  • Number of LEDs:
    0
  • Compatible Bus Systems:
    KNX (TP)
  • Product Range:
    KNX
  • Mounting Type:
    DIN-Rail
  • Manual Operation:
    No
  • Model Number:
    Base module
  • Color:
    light grey
  • Number of Batteries:
    0
  • Application Function:
    Electrical Load and Light Control

Environmental

Dimensions

  • Width in Number of Modular Spacings:
    4
  • Product Net Width:
    72 mm
  • Product Net Height:
    90 mm
  • Product Net Depth / Length:
    64.5 mm
  • Product Net Weight:
    0.165 kg
  • Built-In Depth (t2):
    64.5 mm
  • Dimension Diagram:
    2CDC072033F0015

Certificates and Declarations

Classifications

  • ETIM 8:
    EC001096 - Analogue actuator for bus system
  • ETIM 9:
    EC001096 - Analogue actuator for bus system
  • WEEE Category:
    5. Small Equipment (No External Dimension More Than 50 cm)
  • WEEE B2C / B2B:
    Business To Consumer
  • CN8:
    8537 10 91
  • eClass:
    V11.0 : 27143109
  • Object Classification Code:
    A
