Ground Fault Circuit Interrupter with Self-Test (GFCI)

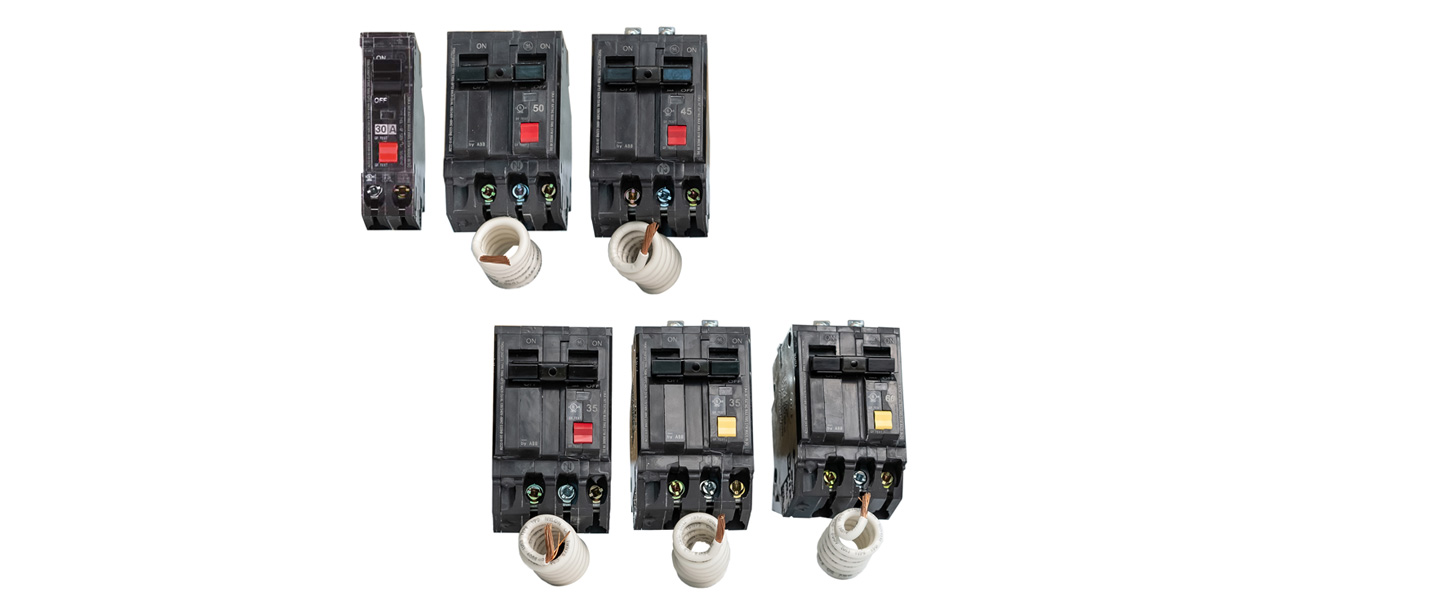

gfci-circuit-breakers-1440x600-teaser

GFCI provides protection against overloads, short circuits, and ground faults

The GFCI breakers detect low levels of electrical current leakage (ground faults) and act quickly to shut off power, with the purpose of preventing serious shock.
Tools and Resources Contact us

Features and Benefits

  • Plug-on neutral version (up to 30A) eliminates the need for pigtail neutral termination, allowing for faster installation and reducing clutter
  • Standard self-test functionality 
  • LED indications simplify troubleshooting 
  • Push button test to validate ground fault detection 
  • Personnel Protection – protects against ground leakage of 5mA or greater
  • Equipment Protection – protects against ground leakage of 30mA or greater

Technical Specifications

  • 1 or 2 pole 
  • Personnel protection and equipment protection
  • 15A, 20A, 25A, 30A, 35A, 40A, 45A or 50A 
  • 10kAIC or 22kAIC
  • 120 VAC or 120/240 VAC

Certifications and Standards

  • cUL listed per CSA C22.2 No. 5 Molded case circuit breakers
  • cUL listed per CSA C22.2 No. 144 Ground fault circuit interrupters

Applications

  • Wet locations 
  • Damaged wires 
  • Neutral leads pinched to a grounded metal box 
  • Worn electrical insulation 
  • Loose electrical connections 
  • Overheated or stressed electrical cords and wires 
  • Misapplied/damaged appliances
