ReliaGear™ SB Switchboard - CTO / ETO

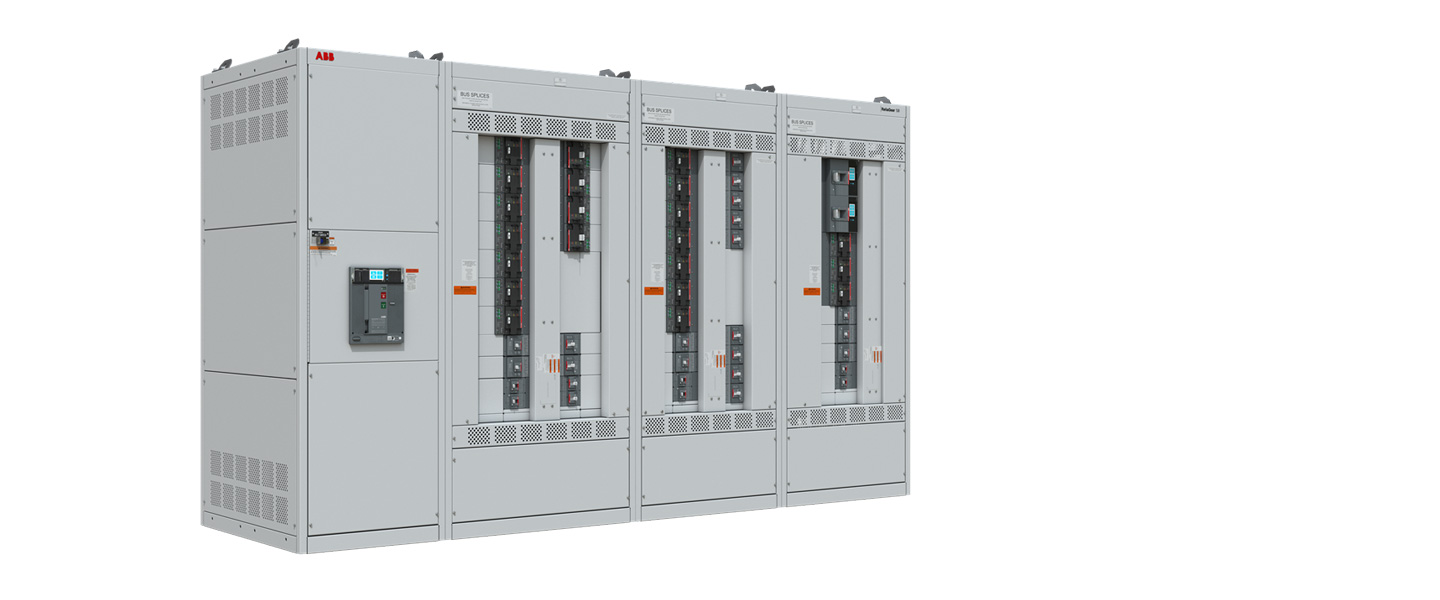

ABB-ReliaGear-Switchboards-CTO-ETO-1440x600-teaser

Configured-to-Order and Engineered-to-Order Switchboards

ReliaGear™ SB Switchboards - CTO/ETO offer customizable solutions tailored to specific project requirements, ensuring flexibility and efficiency.

Tools and Resources Contact us

ReliaGear™ SB Switchboards - CTO/ETO are designed to provide tailored solutions for specific project needs. With a wide range of configurations and options, these switchboards ensure flexibility and efficiency.

The CTO (Configured-to-Order) approach enables faster lead times by allowing for easy combinations of pre-engineered sub-assemblies, while the ETO (Engineered-to-Order) approach offers fully customizable solutions tailored to meet specific requirements. These switchboards are available up to 6,000 A and 600 VAC, with various enclosure options and high interrupting ratings.

Benefits

Configurable

Easily combine pre-engineered sub-assemblies

Customizable

Fully tailored solutions for specific project requirements

Efficiency

Streamlined processes for faster project turnaround times

Features

Available up to 6,000 A and 600 VAC.
Indoor and outdoor enclosures (NEMA 1, NEMA 3R).
High interrupting ratings up to 150kAIC.
Available with utility sections authorized by leading utilities nationwide.
Modular components for easy, fast, and flexible installation.
Fixed mounted or withdrawable breaker options.
Cloud connectivity with built-in metering for real-time energy monitoring.
Bluetooth® technology embedded to set parameters in an arc-free zone.
Flexible operation mode (ATS, Load shedding, etc.).

Technical Specifications

1200 to 4000 A 3P 4W
208Y/120, 480Y/277, and 600Y/347 V AC
Indoor and Outdoor enclosures (N1, N3R)
Copper and Aluminum Bussing up to 100kA
Tmax XT1 to XT7 distribution circuit breakers (TMA and Ekip DIP, Touch for XT7 1200 only)
100% fully rated on Tmax XT7 1200A Ekip Touch models only
Fixed section width (determined by amperage) and depth (front and rear aligned)
Optional SPD Type 1 and 2, 125kA and 200kA ind. mounted
Optional RGM meter 2200, 6000, 6010 and 7000
Single section shipping split
Cable in/cable out for main option
Individually mounted Emax 2 feeders (E2.2, E4.2, and E6.2)
Individually mounted main
Group Mounted Main (GMM)
Main Lug Only (MLO) Feeder Only application

Certifications and Standards

All ABB switchboards are cUL approved to CSA C22.2 No. 244
UL 50 Thirteenth Edition - Enclosures for Electrical Equipment, Non-Environmental Considerations
UL 50E Second Edition - Enclosures for Electrical Equipment, Environmental Considerations
UL 67 Thirteenth Edition - Standard for Panelboards
UL 98 Fourteenth Edition - Enclosed and Dead Front Switches
UL 489 - Thirteenth Edition - Molded-Case Circuit Breakers, Molded-Case Switches, and Circuit-Breaker Enclosures
UL 891 Twelfth Edition - Switchboards
UL 969 Fifth Edition - Standard for Marking and Labeling Systems
National Electric Code 2020 Edition
NEMA PB1 2011 Edition - Panelboards
NEMA PB2 2011 Edition - Deadfront Distribution Switchboards
IBC 2018 - International Building Code
CBC 2019 - California Building Code
UL 1066 Fourth Edition - Standard for Low-Voltage AC and DC Power Circuit Breakers Used in Enclosures
