ReliaGear™ SB Switchboard - EXcelerate

A high-performance switchboard designed for short lead time application and enhanced operational efficiency

Tools and Resources Contact us

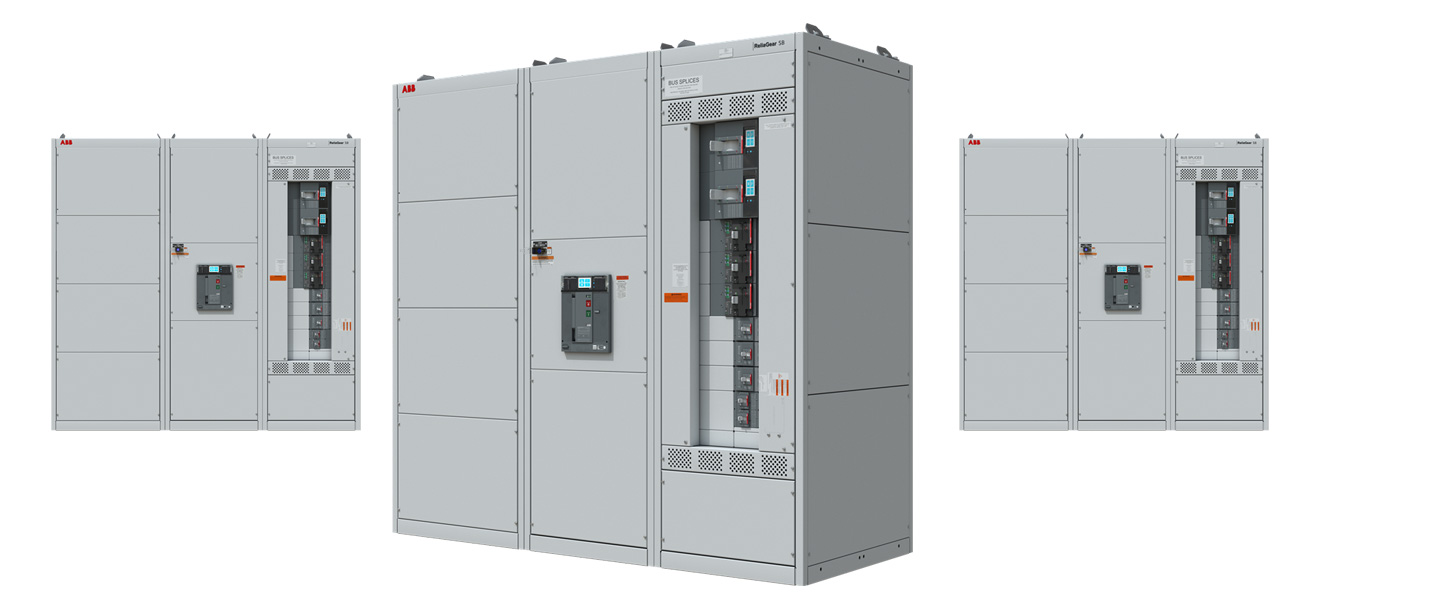

Fast lead time and great flexibility with 5,000+ preconfigured options available in empower, ABB ReliaGear™ SB – EXcelerate uses a Configured-to-Order approach that allows the customer to easily combine pre-engineered sub-assemblies to build switchboards up to 6 sections thanks to the streamlined EXcelerate option in empower.

The switchboards are sent to manufacture at the moment of the order, removing engineering design time, and the drawings are immediately available in empower making the project turnaround time faster and easier.

EXcelerate highlights

2X faster lead times than engineered switchboards
5,000+ configurations of simple and mid complexity switchboards available
Sub-assemblies reduce project cycle times
Simple selection process results in no engineering interaction, immediate manufacturing, and faster delivery
Available in empower quote

Benefits

Safe

Improved finger-safe bus stack

Smart

Plug-in, single-tool simplicity

Sustainable

Durable spring-loaded plug-in connectors

Features

Improved finger-safe bus stack that meets IP20 standards.
Circuit breaker integrated optional Bluetooth® technology for setting parameters and checking measurements directly from your smartphone.
Plug-in, single-tool simplicity enabling easy, fast breaker installation or replacement in the field.
Circuit breakers can be installed anywhere on the bus stack for greater flexibility.
Hinged gutter doors allow quick, convenient access for wiring of circuit breakers.
Spring-loaded circuit breaker plug-in connectors with plating durable enough to withstand repeated insertion and removal.
Fewer bolted joints mean fewer potential loose connections to check and retorque.
Modular components for easy, fast, and flexible installation.
Fixed mounted or withdrawable breaker options.
Cloud connectivity, which is an optional feature, includes built-in metering for real-time energy monitoring.
Optional Bluetooth® technology embedded to set parameters in an arc-free zone.
Flexible operation mode (ATS, Load shedding, etc.).
Design compliance with seismic standard.

Technical Specifications

1200 to 4000 A 3P 4W
208Y/120, 480Y/277, and 600Y/347 V AC
Indoor and Outdoor enclosures (N1, N3R) • Copper and Aluminum Bussing up to 100kA
Tmax XT1 to XT7 distribution circuit breakers (TMA and Ekip DIP, Touch for XT7 1200 only)
100% fully rated on Tmax XT7 1200A Ekip Touch models only
Fixed section width (determined by amperage) and depth (front and rear aligned)
Optional SPD Type 1 and 2, 125kA and 200kA ind. mounted
Optional RGM meter 2200, 6000, 6010 and 7000
Single section shipping split
Cable in/cable out for main option
Individually mounted Emax 2 feeders (E2.2, E4.2, and E6.2)
Individually mounted main
Group Mounted Main (GMM)
Main Lug Only (MLO) Feeder Only application
Feeder sections can be spliced into existing EXcelerate switchboard

Certifications and Standards

All ABB switchboards are cUL approved to CSA C22.2 No. 244
UL 50 Thirteenth Edition - Enclosures for Electrical Equipment, Non-Environmental Considerations
UL 50E Second Edition - Enclosures for Electrical Equipment, Environmental Considerations
UL 67 Thirteenth Edition - Standard for Panelboards
UL 98 Fourteenth Edition - Enclosed and Dead Front Switches
UL 489 - Thirteenth Edition - Molded-Case Circuit Breakers, Molded-Case Switches, and Circuit-Breaker Enclosures
UL 891 Twelfth Edition - Switchboards
UL 969 Fifth Edition - Standard for Marking and Labeling Systems
National Electric Code 2020 Edition
NEMA PB1 2011 Edition - Panelboards
NEMA PB2 2011 Edition - Deadfront Distribution Switchboards
IBC 2018 - International Building Code
CBC 2019 - California Building Code
UL 1066 Fourth Edition - Standard for Low-Voltage AC and DC Power Circuit Breakers Used in Enclosures
