Miniature Circuit Breakers MCBs

Miniature circuit breakers (MCBs) ensure electrical safety in homes, offices and other buildings as well as for industrial applications by protecting electrical installations against overloads and short circuits. Once a fault is detected, the miniature circuit breaker automatically switches off the electrical circuit to prevent damage to wires and to avoid the risk of fire. Warranting reliability and safety for people and assets, MCBs are equipped with two tripping mechanisms: the delayed thermal tripping mechanism for overload protection and the magnetic tripping mechanism for short circuit protection.

Miniature Circuit Breakers for
SMISSLINE TP

The SMISSLINE miniature circuit-breaker is an energy-restricting circuit-breaker that has high performance values and that is equally suitable for the industrial sector, for commercial use and for installation at home. If a short-circuit occurs, it guarantees excellent selectivity conditions to upstream overcurrent circuit breakers while the load on equipment that is connected downstream is limited to a minimum amount.

High Performance Circuit Breakers (HPCBs)

The S800 range of High Performance Circuit Breakers is the first choice for heavy duty industrial and renewable energy applications worldwide. Thanks to an innovative short-circuit extinguishing technology, S800 devices are the ideal solution when both size and performance are required.

Surge Protection Devices (OVR)

Surge Protective Devices are designed to protect against transient surge conditions. Large single surge events, such as lightning, can reach hundreds of thousands of volts and can cause immediate or intermittent equipment failure. However, lightning and utility power anomalies only account for 20% of transient surges.

The remaining 80% of surge activity is produced internally. Although these surges may be smaller in magnitude, they occur more frequently and with continuous exposure can degrade sensitive electronic equipment within the facility.

Data Center Infrastructure Management (DCIM)

DCIM, or Data Center Infrastructure Management, refers to a comprehensive software and hardware solution provided by ABB specifically designed for managing and optimizing the infrastructure of data centers.

ABB’s DCIM system helps data center operators and facility managers monitor and control various aspects of data center operations to ensure efficiency, reliability, and sustainability.

Network Manager SCADA/BMS

Network Manager SCADA/BMS is a real-time information system for all operational activities in a modern distribution control room.

It improves the information made available to the operators, field crew personnel, customer service representatives, management and, ultimately, to the end customers.

InSite energy management system

The InSite energy management system offers smart energy and load management to improve energy efficiency in both sub- and final distribution.

Through the control unit, data is gathered from the field devices, that can then be accessed via the InSite web server or a 3rd party application.

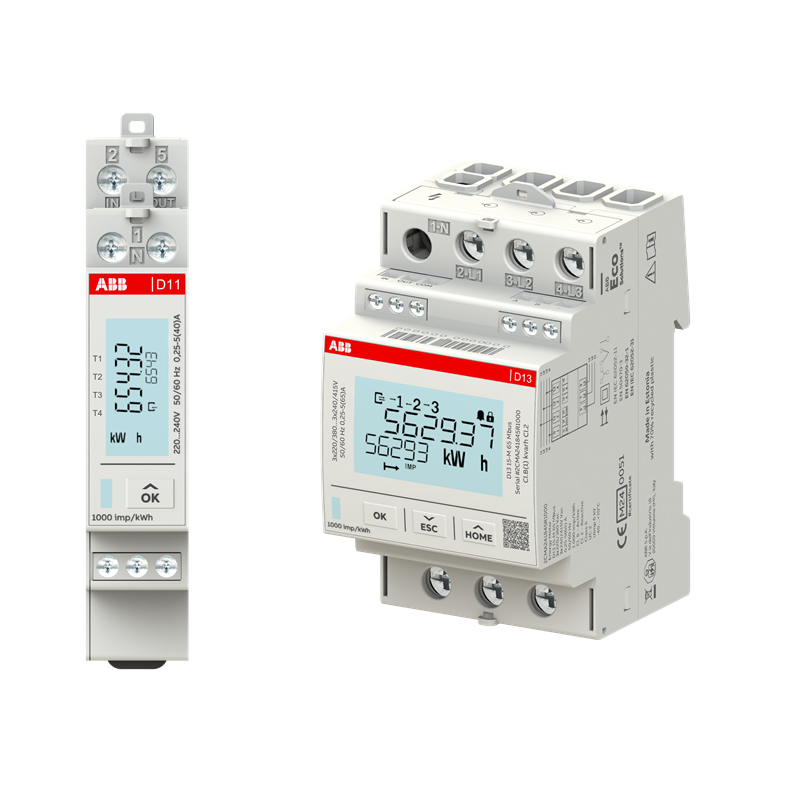

Energy Meters -
Energy Efficiency devices

ABB Energy meters provide a detailed picture of the energy consumption and the specific areas where energy is used. Thanks to the MID Approval it is possible to use the meters to bill customers based on consumptions of defined branches.

Highlights:

Optimized footprint:
up to 50% reduced footprint in the panel

Complete offer:
broad range of measurement available

Reliable in harsh conditions:
operating temperature from -40° to +70° degrees

Circuit Monitoring Systems -
Energy Efficiency devices

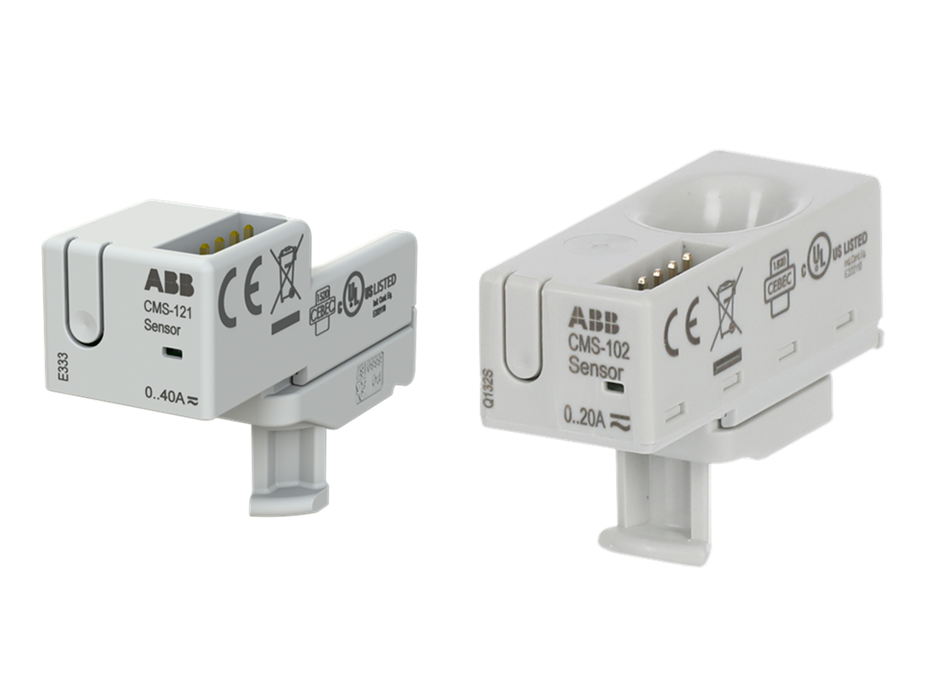

CMS sensors measure current on the single lines and can be installed directly on the circuit breakers or attached directly on the cables. Receiving customized alerts and configuring automatic actions are just some of the functionalities to optimize the management of energy and assets.

Constant diagnostics and real time notifications ensure total transparency over how the electrical system is performing. Each control unit is able to receive the measurements from up to 96 CMS sensors connected through an easy and flexible wired solution ensuring high cybersecurity standards.

Accessories for Miniature -
Circuit Breakers

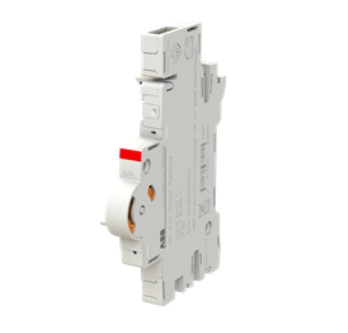

The auxiliary switches and signal contacts are snapped on to the left of the protective devices. On the miniature circuit breakers an optional mounting on the right is also possible.

For auxiliary switches and signal contacts supplied via SMISSLINE auxiliary busbars LA or LB a version with integrated contacting pieces is available. Conventional supply via the terminals of the auxiliary devices is possible.

Digital I/O modules can read contact status, activate or deactivate lines and collect utilities’ consumptions. The range consists of 3 devices to adapt to quantity and type of installed products:

Input Module DM11
Output Module DM00
Input/Output Module DM10

DM11, DM00 and DM10 can be connected to System pro M compact® accessories of MCBs and RCDs, but also to other DIN Rail products with a digital input or output and to pulse meters (e.g . water , gas meters).

INS-S/H

Combining the functions of a signaling device and an auxiliary device in a sleek, space-saving design,smart signaling devices  can be connected to control units via a flat cable, providing as plug-and-play connection for sensors, and are compatible with most of ABB's MCB and RCD ranges. Devices are automatically detected and assigned in the webserver, providing crucial alerts and information when an adjacent switch trips.

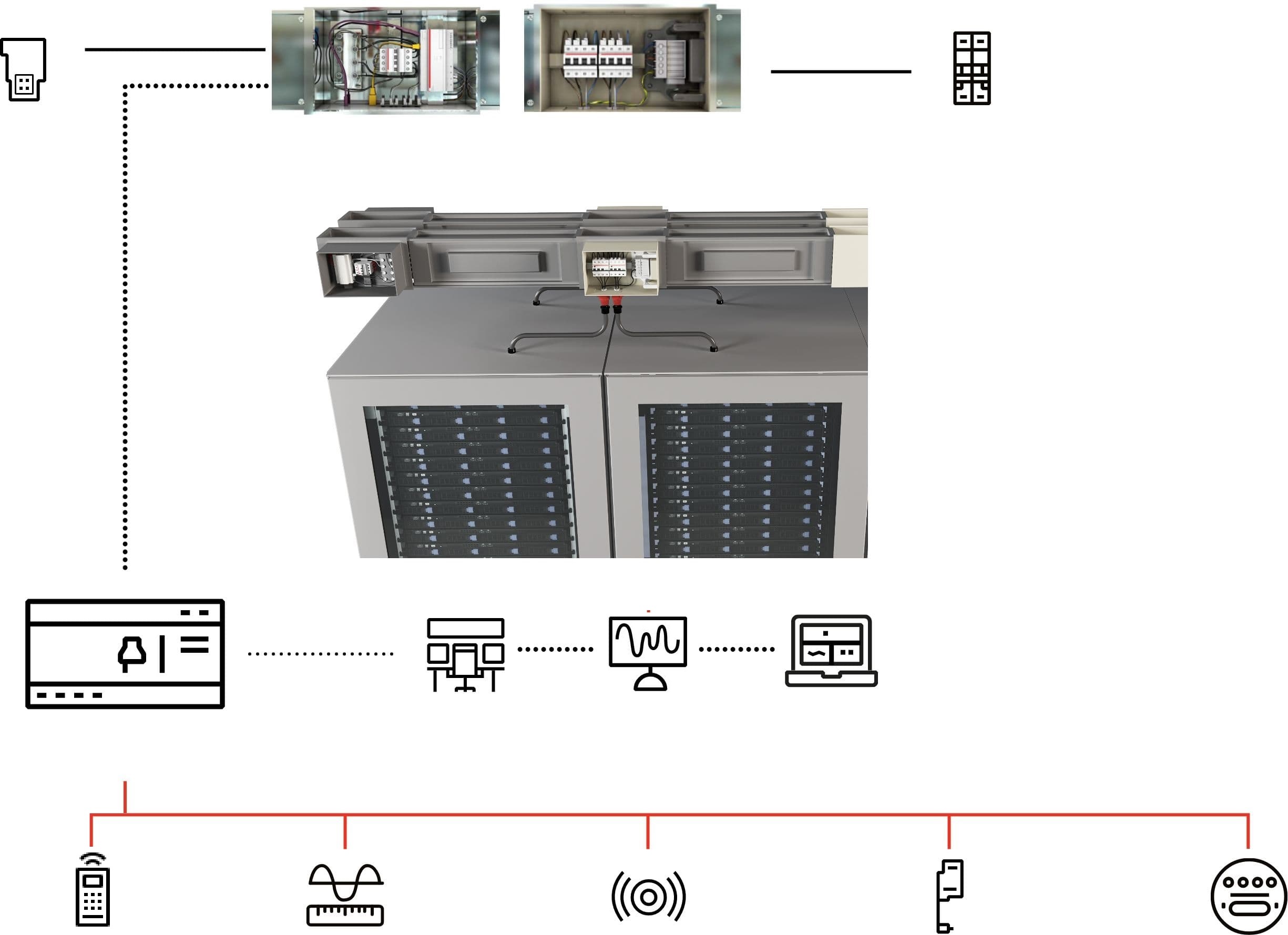

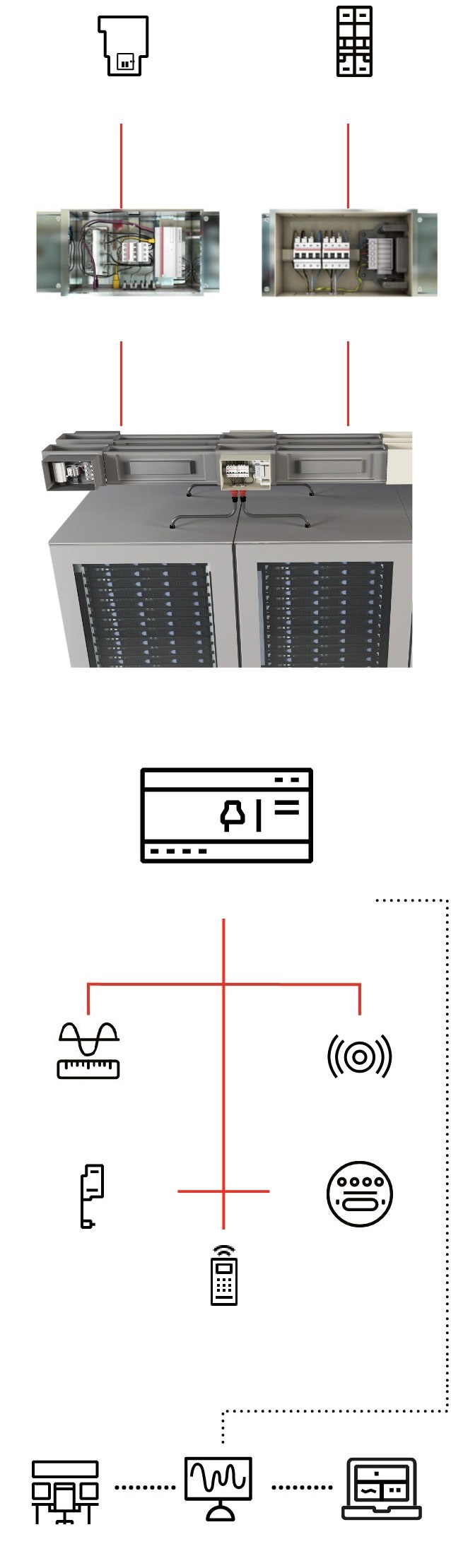

A busway system is a type of electrical distribution system used to efficiently and safely distribute electrical power within a building or an industrial facility. A busway system consists of a series of enclosed, metal or non-metallic, rigid conductor bars that are typically housed in a protective enclosure.

These conductor bars are used to carry electrical power from the source (such as a substation or switchgear) to various points of use throughout a building or facility. The busway system may include plug-in or fixed-type connectors that allow for the easy and flexible connection of electrical equipment and loads.

If you want to learn more about our Busway reference design, read the application note now.

Miniature Circuit Breakers MCBs

Miniature circuit breakers (MCBs) ensure electrical safety in homes, offices and other buildings as well as for industrial applications by protecting electrical installations against overloads and short circuits. Once a fault is detected, the miniature circuit breaker automatically switches off the electrical circuit to prevent damage to wires and to avoid the risk of fire. Warranting reliability and safety for people and assets, MCBs are equipped with two tripping mechanisms: the delayed thermal tripping mechanism for overload protection and the magnetic tripping mechanism for short circuit protection.

Miniature Circuit Breakers for
SMISSLINE TP

The SMISSLINE miniature circuit-breaker is an energy-restricting circuit-breaker that has high performance values and that is equally suitable for the industrial sector, for commercial use and for installation at home. If a short-circuit occurs, it guarantees excellent selectivity conditions to upstream overcurrent circuit breakers while the load on equipment that is connected downstream is limited to a minimum amount.

High Performance Circuit Breakers (HPCBs)

The S800 range of High Performance Circuit Breakers is the first choice for heavy duty industrial and renewable energy applications worldwide. Thanks to an innovative short-circuit extinguishing technology, S800 devices are the ideal solution when both size and performance are required.

Surge Protection Devices (OVR)

Surge Protective Devices are designed to protect against transient surge conditions. Large single surge events, such as lightning, can reach hundreds of thousands of volts and can cause immediate or intermittent equipment failure. However, lightning and utility power anomalies only account for 20% of transient surges.

The remaining 80% of surge activity is produced internally. Although these surges may be smaller in magnitude, they occur more frequently and with continuous exposure can degrade sensitive electronic equipment within the facility.

Data Center Infrastructure Management (DCIM)

DCIM, or Data Center Infrastructure Management, refers to a comprehensive software and hardware solution provided by ABB specifically designed for managing and optimizing the infrastructure of data centers.

ABB’s DCIM system helps data center operators and facility managers monitor and control various aspects of data center operations to ensure efficiency, reliability, and sustainability.

Network Manager SCADA/BMS

Network Manager SCADA/BMS is a real-time information system for all operational activities in a modern distribution control room.

It improves the information made available to the operators, field crew personnel, customer service representatives, management and, ultimately, to the end customers.

InSite energy management system

The InSite energy management system offers smart energy and load management to improve energy efficiency in both sub- and final distribution.

Through the control unit, data is gathered from the field devices, that can then be accessed via the InSite web server or a 3rd party application.

Energy Meters -
Energy Efficiency devices

ABB Energy meters provide a detailed picture of the energy consumption and the specific areas where energy is used. Thanks to the MID Approval it is possible to use the meters to bill customers based on consumptions of defined branches.

Highlights:

Optimized footprint:
up to 50% reduced footprint in the panel

Complete offer:
broad range of measurement available

Reliable in harsh conditions:
operating temperature from -40° to +70° degrees

Circuit Monitoring Systems -
Energy Efficiency devices

CMS sensors measure current on the single lines and can be installed directly on the circuit breakers or attached directly on the cables. Receiving customized alerts and configuring automatic actions are just some of the functionalities to optimize the management of energy and assets.

Constant diagnostics and real time notifications ensure total transparency over how the electrical system is performing. Each control unit is able to receive the measurements from up to 96 CMS sensors connected through an easy and flexible wired solution ensuring high cybersecurity standards.

Accessories for Miniature -
Circuit Breakers

The auxiliary switches and signal contacts are snapped on to the left of the protective devices. On the miniature circuit breakers an optional mounting on the right is also possible.

For auxiliary switches and signal contacts supplied via SMISSLINE auxiliary busbars LA or LB a version with integrated contacting pieces is available. Conventional supply via the terminals of the auxiliary devices is possible.

INS-S/H

Combining the functions of a signaling device and an auxiliary device in a sleek, space-saving design,smart signaling devices  can be connected to control units via a flat cable, providing as plug-and-play connection for sensors, and are compatible with most of ABB's MCB and RCD ranges. Devices are automatically detected and assigned in the webserver, providing crucial alerts and information when an adjacent switch trips.

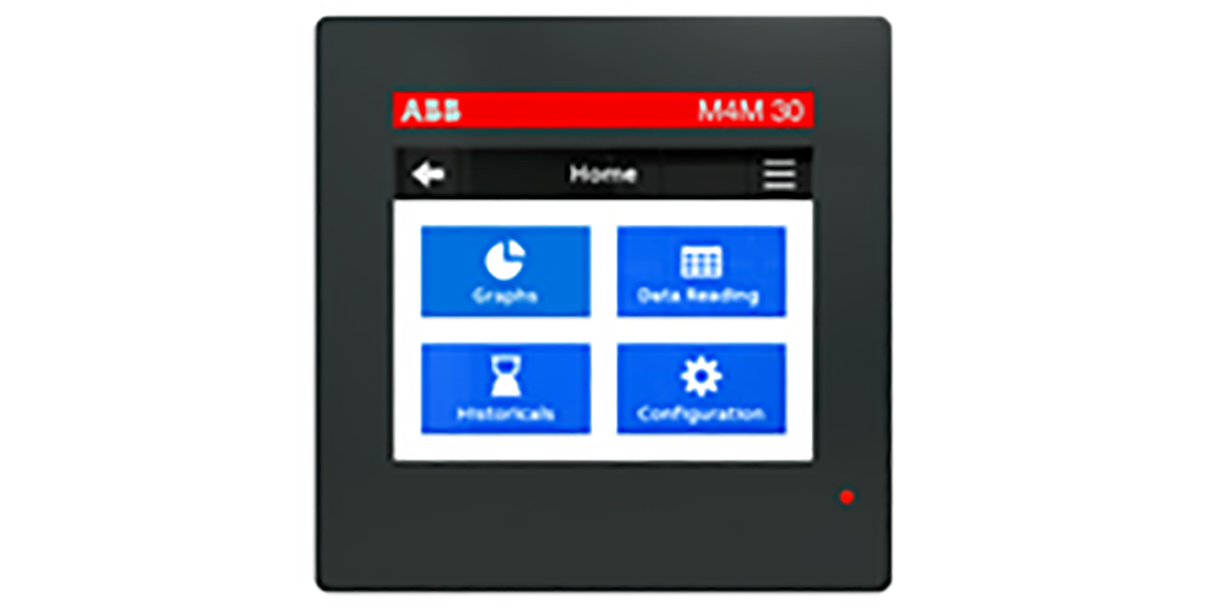

M4M 20 and M4M 30

The M4M range of network analyzers ensures complete power quality analysis and high-accurate energy efficiency monitoring of electrical parameters and advanced power quality KPIs. M4M allow to fully monitor power quality and power reliability, and easily detect in which part of the data center harmonics are created, enabling to prevent damages to installed equipment and avoid any operational impact.

Digital I/O modules can read contact status, activate or deactivate lines and collect utilities’ consumptions. The range consists of 3 devices to adapt to quantity and type of installed products:

Input Module DM11
Output Module DM00
Input/Output Module DM10

DM11, DM00 and DM10 can be connected to System pro M compact® accessories of MCBs and RCDs, but also to other DIN Rail products with a digital input or output and to pulse meters (e.g . water , gas meters).

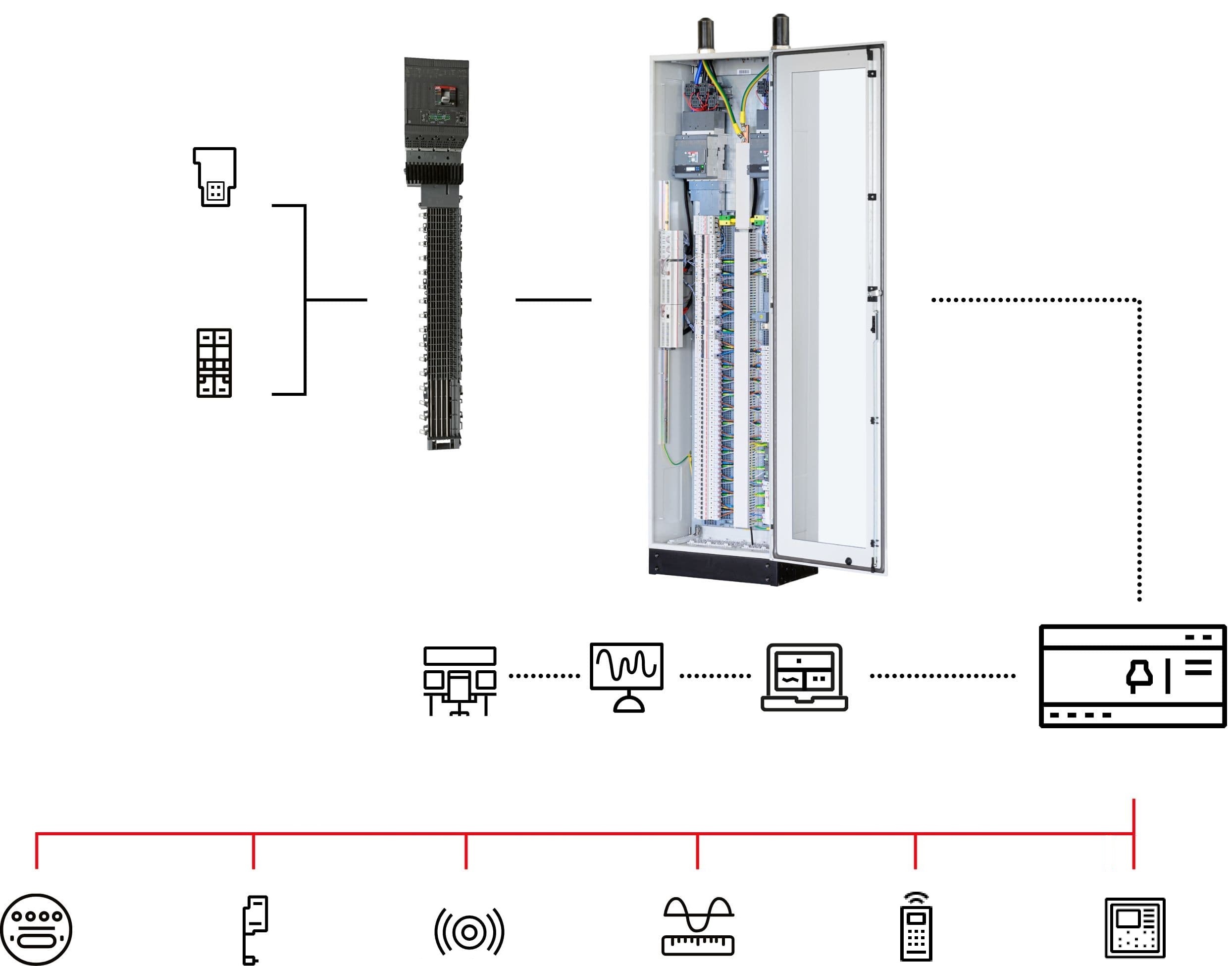

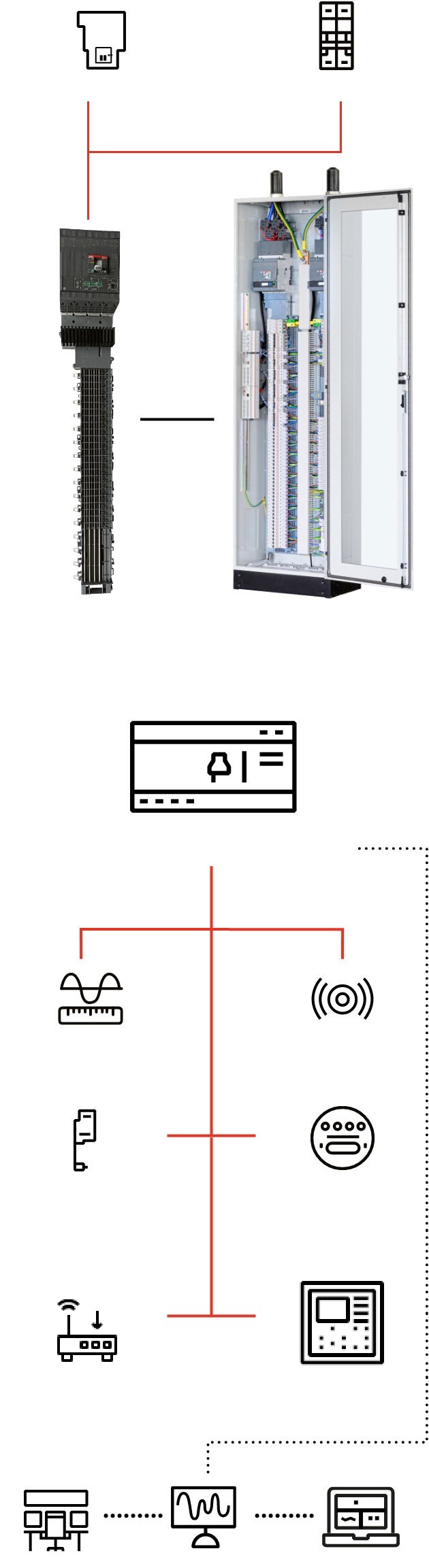

Fulfilling the stringent needs for Data Center Power when it comes to continuous operation, energy efficiency, space saving, modularity and flexibility, is achieved with ABB’s RPP which is engineered specially to respond to the complexity and criticality of Data Center application

ABB’s configurable Remote Power Panel (RPP) helps to meet the demands of power-intensive applications, delivering unsurpassed power monitoring and distribution in a safe, reliable, space-saving footprint. The configurable RPP is the ideal solution for Data Center engineers, saving the time for planning and drawing of the RPP.

If you want to learn more about our RPP solution, read the application note now.

SMISSLINE TP is the complete line protection solution for buildings and machines where safety, availability, and flexibility matters. SMISSLINE TP plug-in distribution system is the world’s first plug-in socket system to ensure that load-free devices and components can be snapped on and off under voltage with no need for added personal protective equipment to guard against electrical shock. When working under load please follow the applicable regulations and laws according to the country.
