Energy Meters

Measure energy, easily

Watch the video

Energy monitoring and analysis play a pivotal role in reducing energy costs and enhancing the efficiency of electrical assets. ABB's complete DIN-rail energy meters offer facilitates the identification of improvement areas, allowing buildings to operate more efficiently, thus reducing energy consumption and saving costs.

Technical documentation and support

Learn more about energy meters with our resources and contact us for purchasing information

Get started Contact Us

Main benefits

Sustainability

Digital integration

Reliable in harsh conditions

Global Availability

D11 and D13 - Part of the ABB EcoSolutions™ portfolio

The ABB EcoSolutions™ label provides full transparency to environmental impacts across the entire product lifecycle. Products within the portfolio comply with a set of key performance indicators defined in ABB’s circularity framework and carry an external, third-party verified environmental product declaration (ISO 14025).

View the circular value and environmental footprint of the D11 and D13 energy meters via the following links:
ABB EcoSolutions Product Profile - D11
ABB EcoSolutions Product Profile - D13

Compliant with the PEP ecopassport® environmental declaration

At ABB, we are assessing the environmental impacts of our products throughout their life cycle via externally verified Type III Environmental Product Declarations (EPD), in compliance with ISO 14025, providing credible and reliable information to our customers. The environmental declaration of the Energy Meters range has been obtained, adopting the PEP ecopassport® format. We are committed to evolving our offering towards enhanced circularity through our ABB Circularity framework.

Link to the Product Environmental Profile document - D11 and D13
Link to the Product Environmental Profile document. - A, B and C series

ABB energy meters are equipped with multiple communication protocols and can be easily integrated into various ABB digital solutions:

ABB InSite - Optimizing energy usage, providing visibility over energy costs, ensuring faster commissioning for ABB devices and achieving advanced load management and up to 20% of energy savings.
ABB Ability™ Energy and Asset Manager - Managing and analyzing energy consumption remotely through a cloud-based application
ABB KNX via Modbus KNX Gateway - Integrating meters with Modbus RTU with the KNX TP Gateway up to 100 freely configurable data points

Mbus and Modbus communication protocols are available.

Wide operating conditions:

-40° to +70° for A and B series, as well as D11, D13
B21/B23 112-100 can work without derating at 4.000 meter altitude (AC Voltage test)

Environmental Classification to MID:

M2 for Mechanical environment
E2 for Electromagnetic environment

ABB energy meters meet several international standards:

MID certification;
METAS certification
IEC certification for the whole world;
UL certification (B23).

D11 and D13: What's new?

Improved usability

More standard features

Simplified installation and initial setup

High readability thanks to a dual-line display and intuitive menu structure

Improved EMC performance

Optimized footprint

Up to 50% reduced footprint in the panel

1 DIN module for 1-phase direct meter up to 40A with Modbus or Mbus

3 DIN modules for 3-phase direct meter up to 65A with Modbus or Mbus

Embedded sustainability

Housing made of 70% recycled plastic

FSC-sourced paper packaging and manuals made with recycled paper

Up to -25% self-consumption compared to previous ranges

Part of the ABB EcoSolutions™ portfolio

How to install and commission D11

How to install and commission D13

Full product range

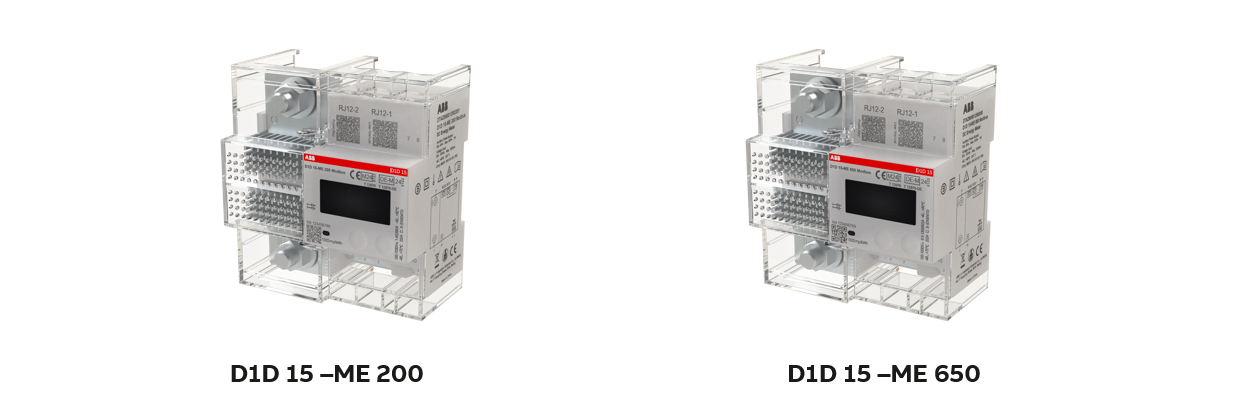

D1D 15-ME Meters

Smart, Compact and Reliable

The D1D 15-ME series is a smart and compact, MID & PTB certified DC energy meter designed for accurate measurement and fiscal billing, enabling charging station providers to offer a seamless, gas-station-like experience.

The new D1D 15–ME meter accurately records measurement data with timestamps, captures loading process details, and includes a digital signature to ensure compliance with legal billing requirements. Additionally, all charging data is securely stored in the meter’s internal memory for persistent record-keeping.

Key Features

•Voltage up to 1000V

•Current up to 650A

•Charging Data recording

•Charging Duration Monitoring

•Line loss energy measurement

•Signed and Encrypted Charging Data

•PTB compliant (Eichrecht) for charging

•MID certified for billing purposes

•Certified with S.A.F.E transparency software

Encrypted message (OCMF) for secure transmission

Main applications

Commercial Buildings

Residential Buildings

Industrial Plants

Data Centers

EV Chargers / ESS

Renewables

Energy meters provide a full overview on the energy usage within the building and allow for precise monitoring and analysis to ensure accurate sub-billing for tenants.
Avoiding fees and penalties from the utility is made with the MID certified energy meter portfolio.

Full analysis and monitoring of the energy consumption of each connected appliance in the home (including solar panels, EV chargers, etc.) allows for improved energy usage and contributes to better building energy efficiency.
Available energy consumption measuring and billing functionalities.

Complete monitoring over where energy is consumed within the plant
Improvement of the energy performance reduces operational energy costs for the facility.

Full analysis of the energy consumption within each Data Center branch allows easy detection of potential issues, thus preventing damage to the installed equipment and avoiding any operational impact;
The space inside the panel is optimized thanks to the 1-phase MID-certified meter

Complete overview on the EV charging station's energy consumption and battery load allows for an improved battery life.
MID & PTB certified DC energy meter designed for accurate measurement and fiscal billing, enabling charging station providers to offer a seamless, gas-station-like experience

Measuring the energy production from solar panels or windmills to facilitate data analysis improving the energy efficiency.

FAQ

What is the difference between D11 15 and D13 15?

Both meters fall within the new Range 15. D11 is a direct meter capable of handling up to 40A in single phase, whereas D13 accommodates up to 65A in three phases. The display of D11 features a dual line with 6 digits in the main, while D13 boasts 7 and additional icons. Both can leverage Mbus or Modbus RTU communication protocol.

Can energy meters be installed with both CT and VT?

ABB provides tailored energy meters working via CT and VT: A42 (1-phase indirect meter) and A44 (3-phase indirect meter) support both CT and VT, while B24 (3-phase indirect meter) is designed for CT-only use.

What are the communication protocols available for meters range?

Two different protocols are available for meters range: Mbus and Modbus RTU.

Where can I find technical documentation for the energy meters?

You can access all types of technical documentation, including installation guides, user manuals, communication manuals, as well as certificates of conformity issued by external entities in the below section or here.
