CombiLine interior fittings

More efficient, flexible and sustainable

CombiLine interior fittings provide the most diverse range of modular options available on the market, leading the way since 1988. The next generation of CombiLine is designed to be even more efficient, flexible, and sustainable.

CombiLine has transitioned to digital product manuals and its wiring system is now made from recycled plastics – both of which effectively reduce waste and minimize environmental impact. Enhanced with various smart features, the next generation of CombiLine enables even more efficient and space-saving assembly.

You can select the delivery option that best suits your needs:

Complete pre-assembled units (with or without components)
Individual parts
Flatpack / Modular configurations

Technical data

Modules with plastic covers designed for mounting on EDF/WR frames
Protection class: IP2XC
Rated current options: up to 400A, 850A, and 1000A
Compliant with IEC 61439-1/-2/-3 standards

Experience the convenience and innovation of CombiLine interior fittings, tailored to meet modern demands while prioritizing sustainability and efficiency.

Maximize space efficiency

More cabling space thanks to larger wire holders
50% bigger flanges with more space for cables
Wide selection of flanges
Reduced stock-keeping with one system for all applications

SMISSLINE-TP-main-benefit-pictogram-flexible-installation-and-maintenance

Flexible & modular design

Variety of mounting positions thanks to flexible wire holders and T-shaped wire holder
Mounting on EDF- and WR-frames as well as on DIN-rails
Flexible fixture of touch-guard
Mounting from the front
Simple positioning of deep-mounting bracket
Mounting plate solution suitable for indoor and outdoor panels

SMISSLINE-TP-main-benefit-pictogram-saves-time-space-and-costs

Time savings of up to 75%

Simply click-in the wire holders for up to 75% faster installation, no tools required
T-shaped wire holders for simplified horizontal and vertical cabling
Planning in one software – one CombiLine system
Cable entry from the front
Innovative flange technology with tool-free assembly

More sustainable by reducing waste

Digital mounting instruction
All wire holders made from recycled plastics
CombiLine uses fully recyclable materials

Product range

CombiLine-N

CombiLine-X

CombiLine-MP

Based on EDF and WR profiles easy to assemble up to 850A in all cabinet systems.

The CombiLine N modules can be mounted to the selected mounting frame at the factory and integrated into the empty cabinet prior to delivery
The CombiLine N modules can be delived not mounted but packed separately and supplied as individual parts with instructions for self-assembly
The parts can also be ordered individually, to create your own module, or to expand or modify an existing one
In up to 850 A
According to IEC61439-1 / -2 / -3, DIN VDE 0660-600-1/-2/3*1, DIN 43880 (DIN devices)
Assembly on EDF- and WR-profile

The expansion of CombiLine N modules up to 1000 A offers in combination with the modular TwinLine-X cabinets based on double WR frame.

The solution meets the practical requirements for a flexible interior design at an ease of assembly in an optimal way.

The CombiLine-X system is tested according to IEC 61439-1 / 2 and offers a high safety standard.

In up to 1000 A
According to IEC61439-1 / -2
Assembly on double WR profiles

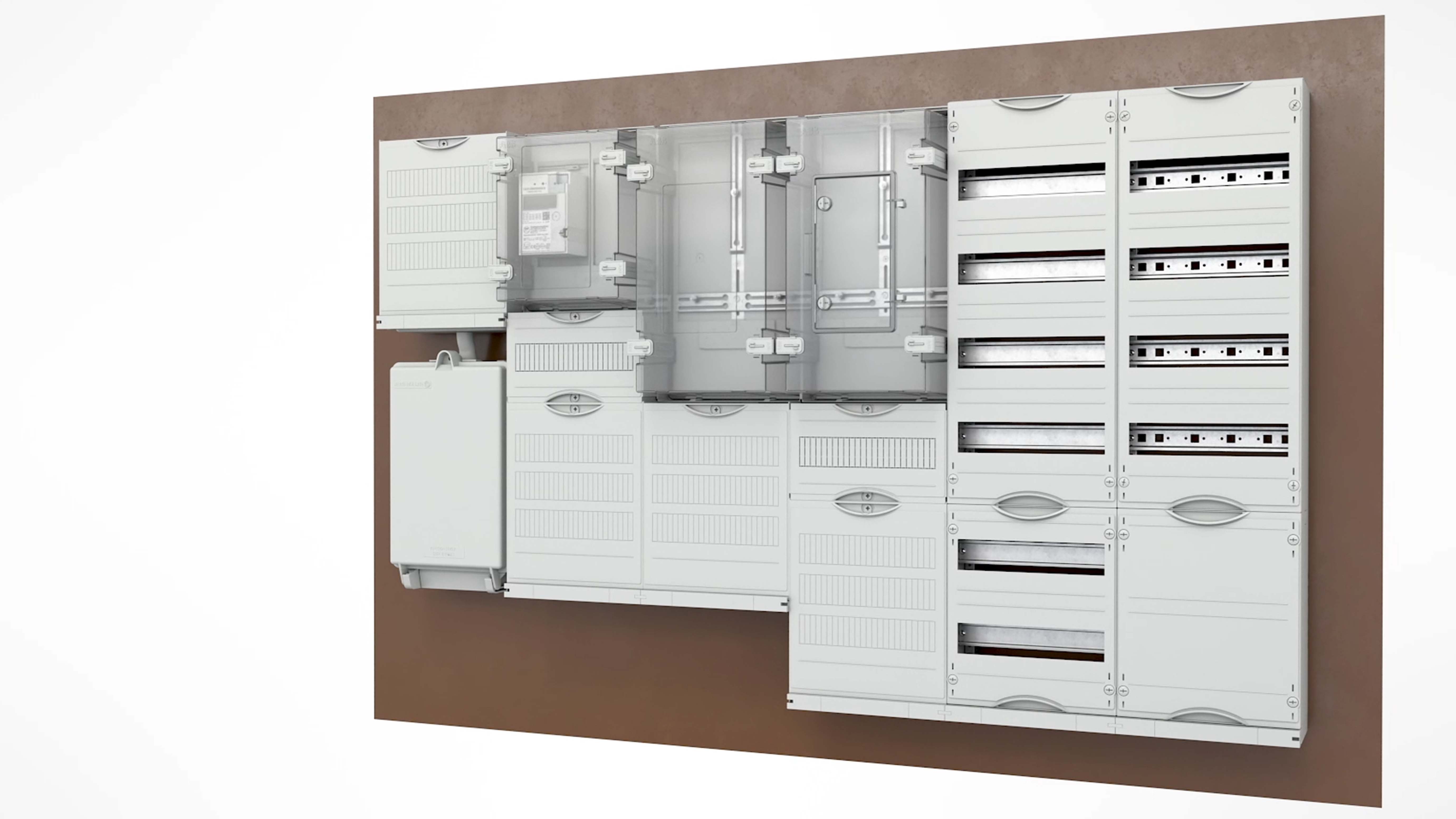

Complementing the successful CombiLine interior fittings, the innovative CombiLine MP system was developed for installation of CombiLine on any mounting plate. The CombiLine MP system enables flexible solutions for metering and distribution applications up to 440 A, based on the modules of CombiLine N, constructed using EDF profiles.

Using synergy with other systems like ComfortLine flanges and accessories, CombiLine modules reduce stockkeeping.

With this solution, you can use CombiLine for outdoor enclosures such as EH3, ARIA and other mounting plate solutions.

With the special cable entry from the front, you are able to mount any cable quickly and easily
Multiple flanges are available to solve any cable entry scenario
Building on two levels, enables multiple assemblies for metering and distribution
For the outdoor panels, meter covers up to IP54 are available with and without a door
According to IEC61439-1 / -2, DIN 43880 (DIN devices)

Mounting elements to mount CombiLine on mounting plates up to 400A

CombiLine wiring system – more efficient, flexible, and sustainable

Our CombiLine wire holders are now made from recycled material and are colored grey instead of blue. Thanks to the new, robust, and flexible ED60G wire holder, twice as much space is available for optimized cable routing.

Our new T-shaped wire holder ED45GT can be mounted very quickly by clicking it onto the rear of the DIN rail. It simplifies horizontal and vertical cable management while significantly increasing wiring efficiency and minimizing cabling crossings.
